The best way to find the correct starter motor is to combine the machine and engine details with the OEM or original starter reference, then confirm voltage, rotation, pinion teeth, mounting and terminal position. Do not choose a replacement from appearance alone.
PartsForMachines provides access to more than 100,000 machine applications and part references across starter motors and alternators, with human support available when identification is uncertain.
• Machine manufacturer, full model and serial number
• Engine manufacturer, model and serial number
• Original starter and machinery OEM references
• System voltage and starter power rating
• Rotation and pinion tooth count
• Mounting holes, flange, nose housing and terminal positions
• Clear photographs of the starter, machine plate and engine plate
A verified original starter or OEM number is normally the strongest identification route. Machine and engine details provide a second check, while photographs help resolve missing or unreadable labels.
The original number is normally stamped, engraved or printed on a plate attached to the starter body or solenoid. Clean the area carefully and photograph it directly and at an angle. Record spaces, dashes and suffixes exactly because a suffix can identify a different specification.
Yes, but a machine model alone may not identify one universal starter. Manufacturers can change engines or starter specifications during production. The same engine can also use different starters in different installations. Use the machine model, serial number, engine details and original reference together.
WhatsApp the PartsForMachines team clear pictures of the machine identification plate, engine plate, complete starter motor, label area, pinion, mounting flange and terminals. Our experts can use these details to provide additional identification support. If the evidence is incomplete, the selection should remain on hold rather than being guessed.
• Voltage: must match the machine starting system.
• Rotation: must match the approved application.
• Pinion: tooth count, pitch and geometry must suit the ring gear.
• Mounting: flange, nose housing and bolt pattern determine physical fit.
• Terminals: connections and cable routing must suit the installation.
• Design: direct-drive, gear-reduction and oil-sealed starters are not automatically interchangeable.
Not automatically. A different tooth count can be suitable when the complete replacement has the correct pinion pitch, diameter, centreline and nose housing for the same ring gear. Use an approved cross-reference rather than a general tooth-count rule.
Rotation should come from the original number or a verified specification using the supplier’s viewing convention. Mounting holes, flange, nose housing and starter clocking determine whether the unit fits and engages correctly. Terminal position also affects cable clearance and routing.
Sometimes, where the replacement is specifically approved for the application. The mounting, pinion, rotation, terminals and electrical system must still match. A different design should not be treated as a universal substitute.
A wet or oil-sealed starter prevents oil entering through the drive end in applications connected to an oil-filled housing. Do not substitute a standard dry starter where the original application requires sealing.
Use the machine serial number, engine details and original reference when checking Caterpillar starter motors, Komatsu starter motors, Case starter motors. For agricultural applications, OEM references are especially useful when narrowing John Deere starter motors and Kubota starter motors.
PartsForMachines supplies starter motors and alternators for plant, agricultural, industrial and marine machinery across the UK, Europe and international markets. Our catalogue covers more than 100,000 machine applications and part references.
Start with the Starter Motor category, or use the Starter Motor & Alternator Finder when you know the machine or original reference.
Need help? WhatsApp, call or email the PartsForMachines team with clear pictures of the machine identification plate, engine plate, complete starter motor, product label, pinion, mounting flange and terminals.
Eligible purchases are supported by our Fit Guarantee and hassle-free returns, with fast UK and European delivery, international shipping, and a 12 or 24-month manufacturer warranty depending on the product.
Caterpillar Starter Motors | Komatsu Starter Motors | John Deere Starter Motors | Kubota Starter Motors
Yes. Photographs can support identification when they show the machine and engine plates, complete starter, label, pinion, mounting flange and terminals. They should be supplied with all available machine and engine details.
Yes. Starter specifications can change during a production run. The serial number helps identify the correct production range.
Yes. OEM and original starter numbers are key search routes. The resulting replacement should still be checked against the machine, engine and technical specification.
Not safely on appearance alone. Similar-looking starters can differ in voltage, rotation, pinion geometry, mounting, terminals or internal design.
Compare the original reference and every available specification. Contact PartsForMachines if the reason for the alternatives is unclear.
Lubricants - The Insider's Guide What is a Lubricant? What is it made up of? What do those Lubricant Ratings really mean?
Select Pressure Washer and Compare! What you need to know? Why you might consider one? Tips on buying the right machine!
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or o...
Exploring the WAI Starter Motor and Alternator at Partsformachines.com Introduction: In the Plant and Agriculture sector, a starter motor and alternator are parts that ensure a machine runs smoothly. At Partsformac...
Mechanical Vices at partsformachines.com: A Comprehensive Guide on how to select the best Vice suited to your needs Introduction: Vices are renowned for their exceptional quality, durability, and precision. These vices...
Expert Guidelines for Preserving Your Heavy Equipment Battery Heavy machinery, including forklifts, bulldozers, and excavators, relies on robust batteries to minimize downtime and maximize operational availability. These batteries must...
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a pro...
Finding the Perfect Fit: How to Identify the Correct Track Size Measuring The Size of Track Identifying the correct size of a Rubber or Steel...
Your Ultimate Guide to Log Splitters: Choosing, Using, and Maintaining the Perfect Tool Introduction:Winter is here and the vision of sipping Hot Coco by the fire is right up there in our minds as we wind down for holid...
Understanding Heaters: Types, Selection, Maintenance, and Efficiency Introduction: As temperatures drop and chilly weather sets in, heaters become essential companions, providing warmth and comfort in homes, workpl...
Top Tips for Picking the Perfect Battery Booster Introduction:In the realm of heavy vehicles, the reliance on robust and reliable battery systems is paramount. Battery boosters serve as a lifeline, ensuring uninterrupte...
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, th...
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intr...
Introduction: Welcome to the world of pressure washers! Whether you're a homeowner, business owner, or DIY enthusiast, understanding the different types, uses, and how to choose the right pressure washer can make a significant impact...
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mi...
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At
A starter motor usually clicks without cranking because the battery cannot deliver enough current, resistance is present in the battery cables or engine ground, or the starte...
A rubber track that repeatedly comes off is not simply an inconvenience. It usually points to a problem with tension, undercarriage condition, trapped material, operating tec...
There is no single operating-hour figure that determines when every rubber track should be changed. The decision should be based on whether the track remains structurally sou...
Will Van Seat Covers Block Your Airbags? How to Pick a Safe Fit Side airbags, a belt built into the bench, a fold-down tr...
Tool Chest Combo: Will It Sag, Slam or Fit Your Garage? Many tool chests are bought from a photo. That makes it hard to t...
Replacing a Tractor, Forklift or Digger Seat: Will It Bolt On? The cushion has split, the suspension bottoms out or a har...
Gas or Gasless MIG Welder? Bottles, 13A Plugs and Thin Panels Buying a first MIG welder brings the same worries every tim...
Air Hose Starving Your Tools? Bore, Length, Kinks and Hose Reels Air tool fading at the end of a long hose, or a hose tha...
Which Gear Oil? ISO 220 or 80W-90, GL-4 or GL-5 Made Simple The gearbox plate says ISO VG 220, the handbook wants 80W-9...
3/8 or 1/2in Torque Wrench? Range, Accuracy and When to Calibrate Not sure which torque wrench to buy, or whether yours s...
Piston Compressor for Dive Fills, Quiet Workshops or No Mains? You need air beyond the usual garage compressor: filling d...
Electric Fan Heater: Is 3kW Enough, or Do You Need Three-Phase? Your workshop is cold and a 3kW fan heater looks like the...
Propane Heater in the Garage? Fumes, Damp and Frozen Bottles Your workshop is freezing and a propane heater promises fast...
Compression or Leak-Down Test? Find the Leak, Pick the Tester Your engine is down on power, hard to start or using oil,...
Disposable MIG Gas Bottle Empty Already? Make It Last or Go Big The gas runs out halfway through a repair, or a bottle yo...
Air Screwdriver Over-Tightening? Pick the Clutch, Torque and Grip Air screwdriver stripping threads, cracking parts or le...
Small Parts Organiser: Case, Drawers or Bins for Nuts and Bolts? Washers creep under the dividers, M6 and M8 bolts share...
Hot Pressure Washer Not Heating? Burner, Soot and Scale Fixes You bought a hot washer to shift grease, but the burner wil...
Surface or Borehole Pump? Fix Lost Prime, Cycling or Low Pressure Your pump sucks air and loses its prime, clicks on at n...
Bad Diesel Injector? Symptoms, Coding and Copper Washer Fixes Your tractor or digger has started knocking, smoking or los...
Diesel Nozzle Won't Click Off? Fix Pump, Meter and Filter Faults The automatic nozzle won’t click off when the...
Sagging Panel Door? Pick Screw-On Hinges by Load, Metal and Hand A panel door that drops, binds or rusts at the hinge is...
Wall Storage Bins: Safe on Plasterboard, Right Size for Parts? A bin board full of steel fixings can tear its plugs out o...
Wheel Chocks Sliding? Rubber or Plastic, Size and Where They Go Chocks that skid on gravel, look tiny against the tyre...
Car Battery Drain or Vacuum Leak? Find It With the Right Tester The battery is flat every morning, or there is a lean fau...
Wheel Removal Trolley or Lifter? Heavy Wheels Off and On Safely A tractor rear wheel, an HGV wheel or a big van wheel is...
Air Hose Leaking at the Tail? Size, Clip or Repair It Right Your air hose hisses where it meets the fitting, pops off the...
Air Tool Kit: Will a Small Compressor Run It, and What's Missing? You have a modest compressor and an air tool kit in...
Puller Spares: Bent Screw or Lost Leg? Find the Part That Fits Your puller’s centre screw has bent, a leg has gone...
Which Van, Truck or Tractor Battery? 019 or 020, EFB or AGM? Two lookups disagree on the size, the van has stop-start, or...
Engine Oil for an Old Tractor, Digger or Lorry: Is 15W-40 Right? Your older tractor, digger or lorry is due an oil change...
Leisure Battery Keeps Going Flat? Why It Happens and What to Buy Your caravan’s 12V cuts out minutes after you unpl...
Truck Seat Covers: Will One Fit Your Air Seat and Armrests? Your old cover keeps slipping, a car-size cover won’t s...
Will a Roller Cabinet Last? Castors, Rust, Locks and Drawers Cracked castors, rusty spanners, a lost key or a drill that...
ISO 32, 46 or 68? Which Hydraulic Oil Does My Machine Need? Your hydraulics are sluggish on cold mornings, the log splitt...
What Size Air Compressor Do I Need? Is 24 or 50 Litres Enough? Your compressor can't keep a sander going, or you'...
Hydraulic or Mechanical Puller for a Seized Hub or Tight Bearing? A seized hub or tight bearing can stall a repair, and m...
Diesel Heater in Your Workshop? Fumes, Size and Fuel Explained Your workshop is cold and a diesel or paraffin heater look...
Metal Cutting Bandsaw or Chop Saw? Sizing, Straight Cuts, Blades Cutting steel with a grinder, or fighting a bandsaw that...
Workshop Too Hot or Damp? Fans, Coolers and Dehumidifiers Summer turns the workshop into an oven, winter leaves everythin...
Which Trolley Jack Do I Need? Low Cars, 4x4s and Sinking Jacks The jack will not slide under a lowered car, runs out of h...
Do BG 44K, 244 and 245 Work? What a Fuel Cleaner Can Fix Hesitation, a rough idle or a diesel that has lost its pull can...
Will a Belt-Drive Compressor Run on 13A? What to Check First You have outgrown a small direct-drive compressor, or your b...
Dust Collector or Shop Vac? What Planers, Saws and Grinders Need A planer or table saw can bury a workshop in chips, and...
1mm or 3mm, Inox or Flap? Pick the Right Grinder Disc First Time Stand at a rack of grinder discs and the choices pile up...
Steel or Wooden Workbench? Get the Top, Height and Load Right The top is stained with oil, the bench flexes when you lean...
Woodworking Machines: Bandsaw, Table Saw, Planer or Log Saw? A bandsaw that can't cut a thick block, or a planer that...
Will Tyre Sealant Stop Punctures in Tractor, Plant and HGV Tyres? A thorn, nail or quarry rock can leave a tractor, dumpe...
Tractor Seat Covers: Will One Fit a Grammer Seat and Stay Put? Your tractor seat has split, or the last cover slid about...
Fibre Discs, Belts or Wet and Dry? Abrasives for Welds and Paint Grinding a weld flush, flatting filler for primer and st...
Quarter Turn Latch Too Short? Check Grip, Hole and Key First Your locker latch has snapped, or the new one is too short f...
Is a Multi-Process Welder Worth It? MIG, TIG and Arc in One Box You want MIG for bodywork, stick for outdoor repairs and...
What Size Generator Do I Need? Tools, Laptops and Power Cuts Whether the power is off at home or there is no supply on si...
Which Battery Charger? Flat, Lithium or Laid Up for Winter A battery that keeps going flat, a lithium battery that stops...
Engine Crane or Gantry? Is 1 Tonne Enough, and Will It Fit? Pulling an engine or moving a lathe, and not sure whether an...
Steel or Cast Iron Bench Vice? Size, Base and Repairs Sorted A vice that is too small, marks the work or won't tighte...
Motorcycle Lift: Will It Take a Heavy Tourer and Hold It Safely? Servicing a bike at floor level means kneeling, stooping...
Which Saw Blade? Clean Cuts in Slabs, Tiles, Worktops and Steel A crumbling slab edge, a chipped porcelain tile or a spli...
Cracked or Shaking? Replacement Mirrors for Tractors and Plant A cracked lens or a mirror that shakes until it is useless...
Oil Drainer or Extractor? Is Sucking Oil Out as Good as Draining? Oil change due but no pit, ramps or lift? Or a workshop...

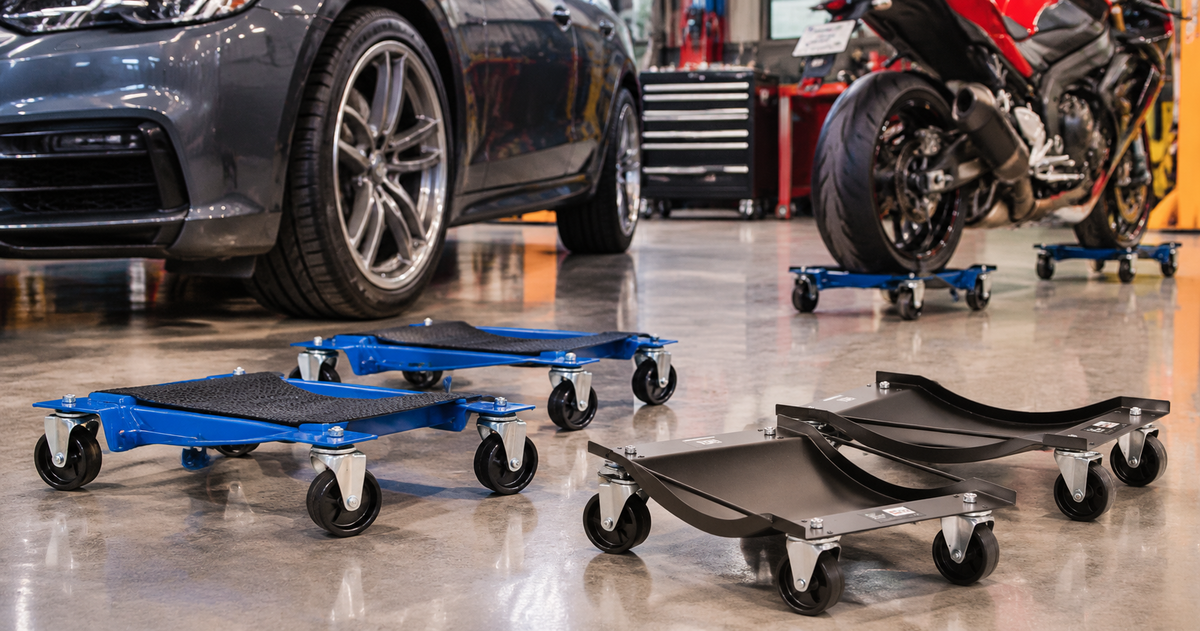

Wheel Dollies or Skates? How to Move a Non-Running Car or Bike Your project car won't run, a stripped shell sits on s...

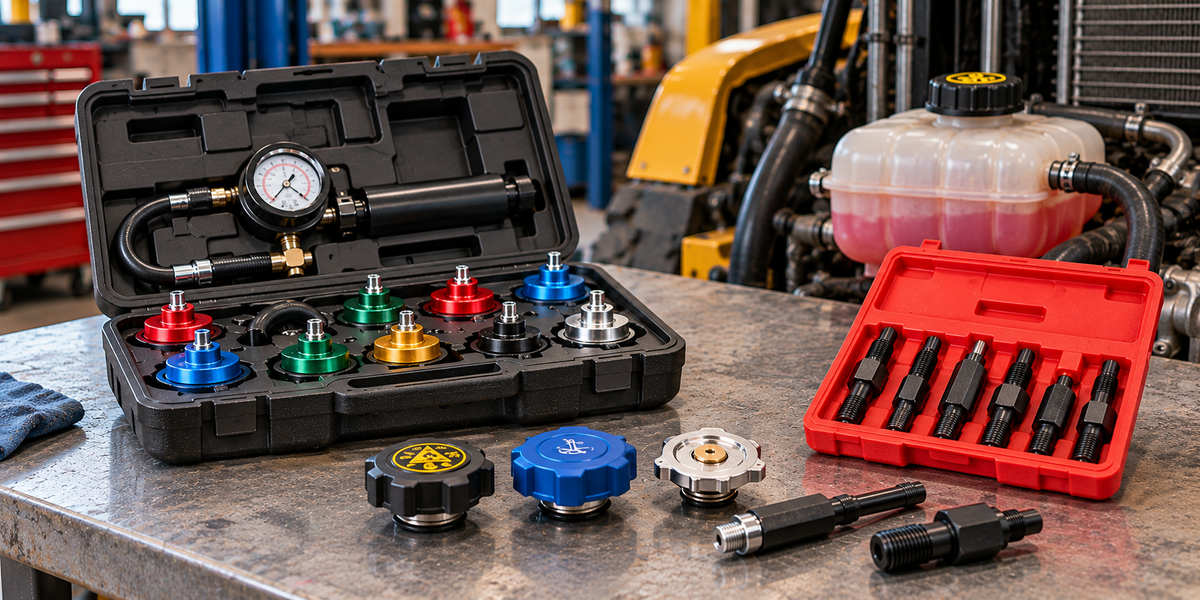

Cooling Cap or Compression Adaptor? Which Fits, Why Tests Mislead The tester won’t seal on the tank, the glow plug...

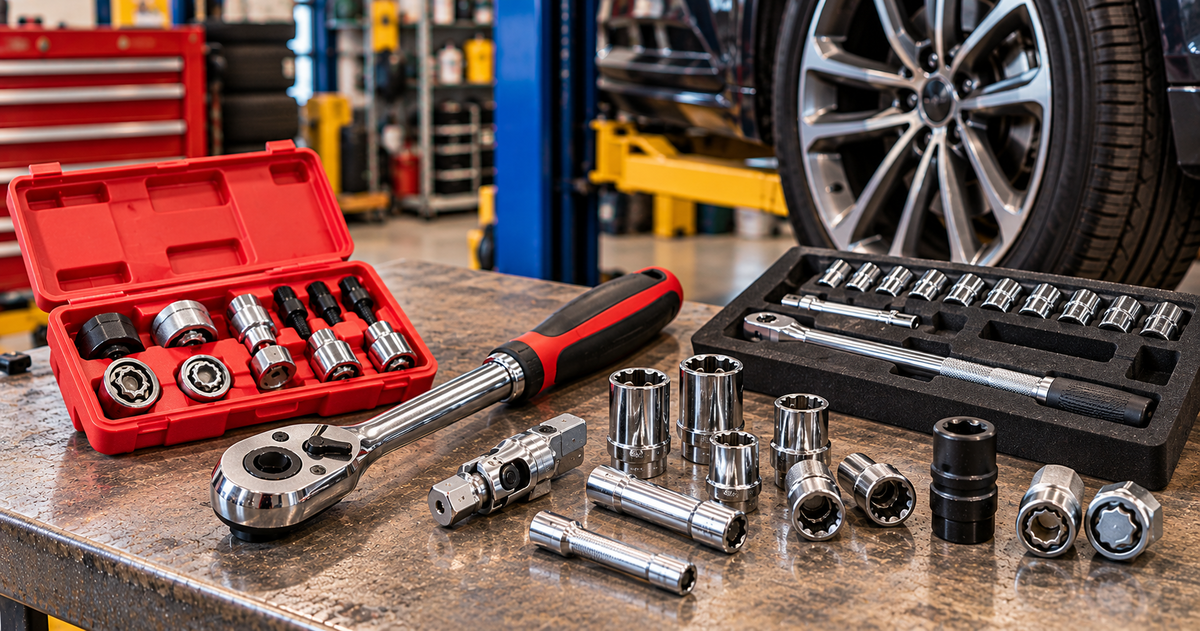

Skipping Ratchet or Lost Wheel Nut Key? The Spares That Fix It Your ratchet skips under load, a socket has gone missing,...

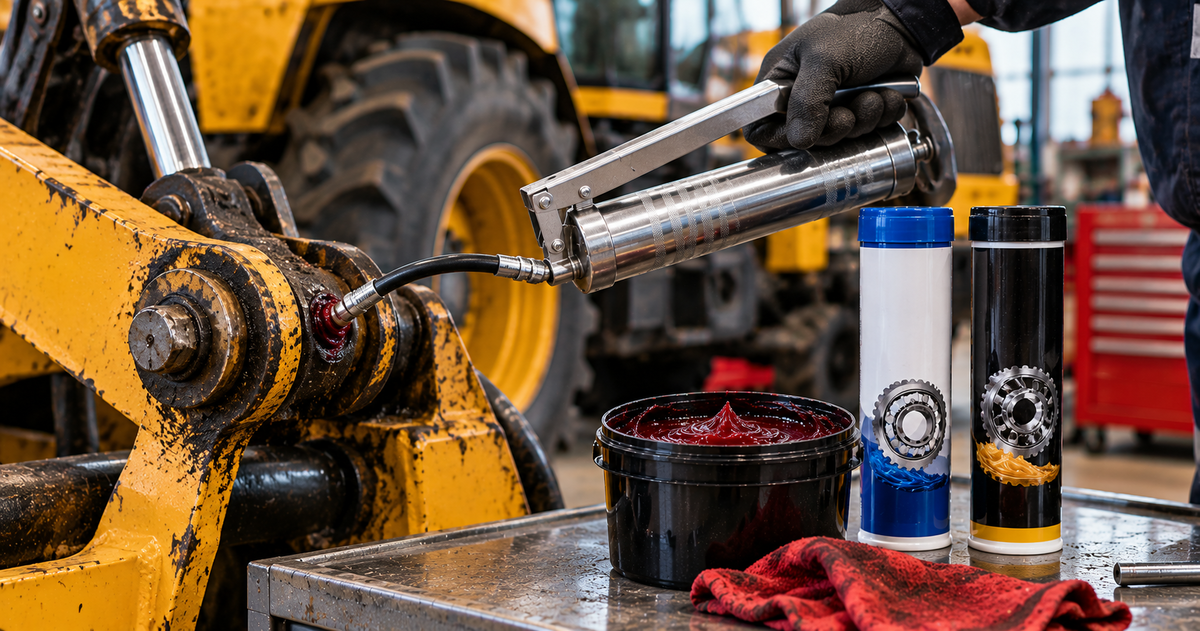

Moly or EP2? Which Grease for Tractors, Plant and Bearings Loader pins wearing fast, a tractor bearing running hot, or a...
Do LED Work Lights Need a Relay? Fuses, Lumens and Radio Crackle New LED work lights crackling the cab radio, looking dim...

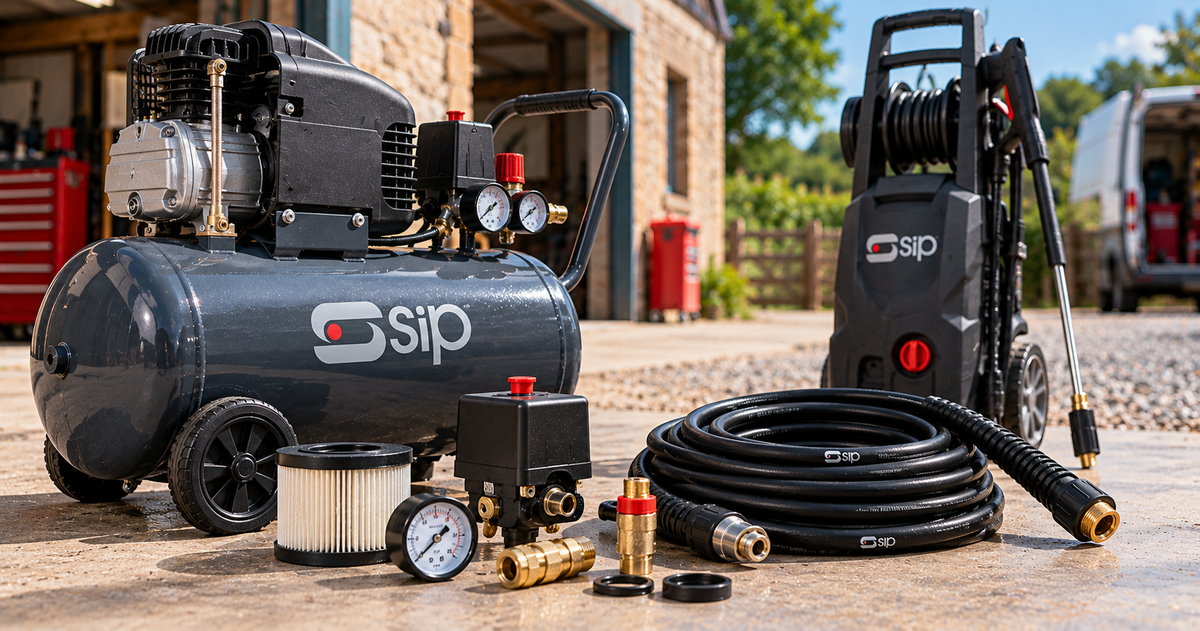

Compressor Losing Pressure or Washer Hose Leaking? Find the Spare Your compressor runs and runs but never reaches cut-out...

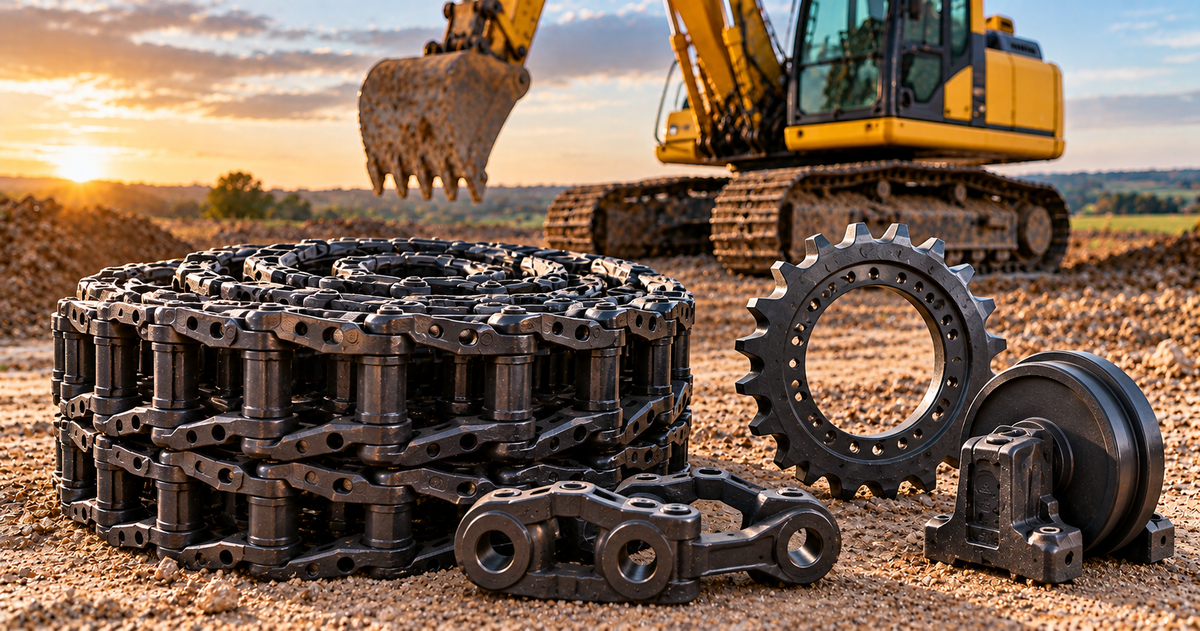

Worn Excavator Track Chain? When to Replace It and What to Order The track keeps needing adjustment, the pins have play,...

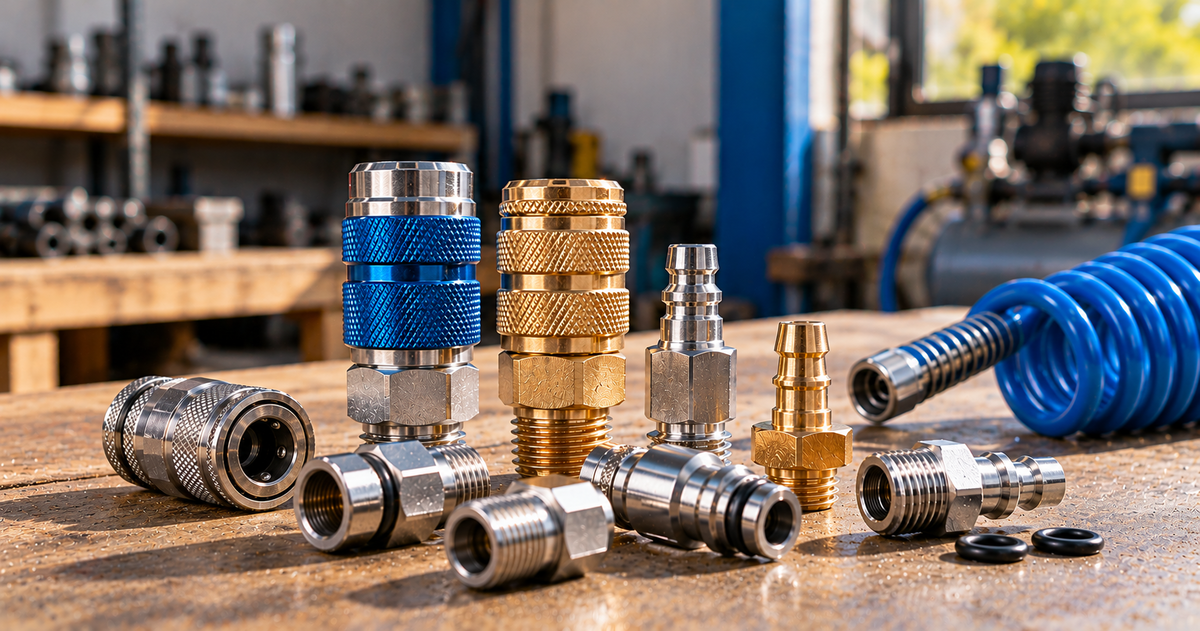

Airline Coupling Won't Fit or Leaks? Check the Profile and Thread A new air tool will not plug into your hose couplin...
Worn Anti-Vibration Mounts? How to Size and Choose Captive Mounts Your generator, compressor or engine has started to rum...

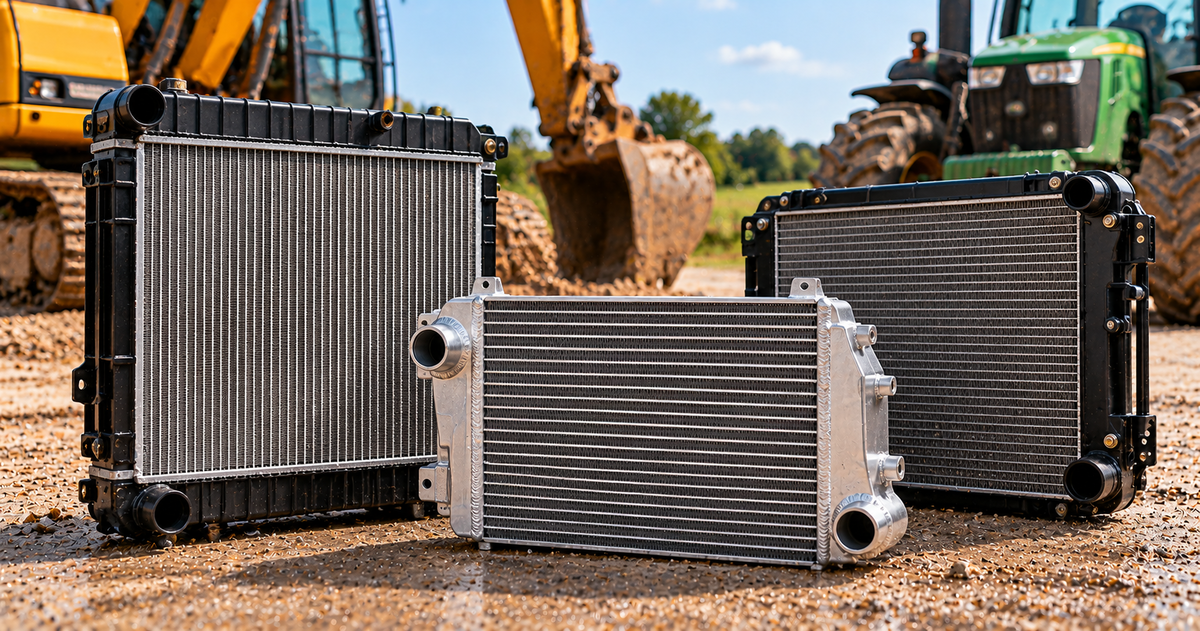

Digger or Tractor Overheating? Clean, Fix or Replace the Radiator Your digger or tractor keeps running hot, or the radiat...

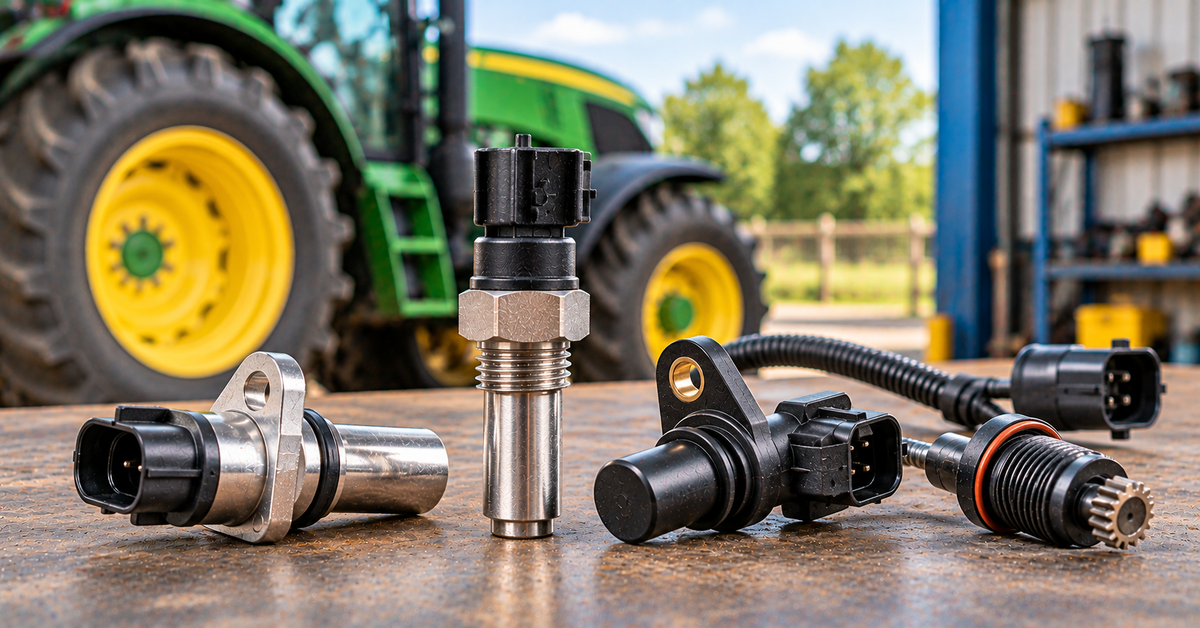

Dash Reading 0.0? How to Test and Replace a Tractor Speed Sensor The dash reads 0.0, the speed reading jumps about, or a...

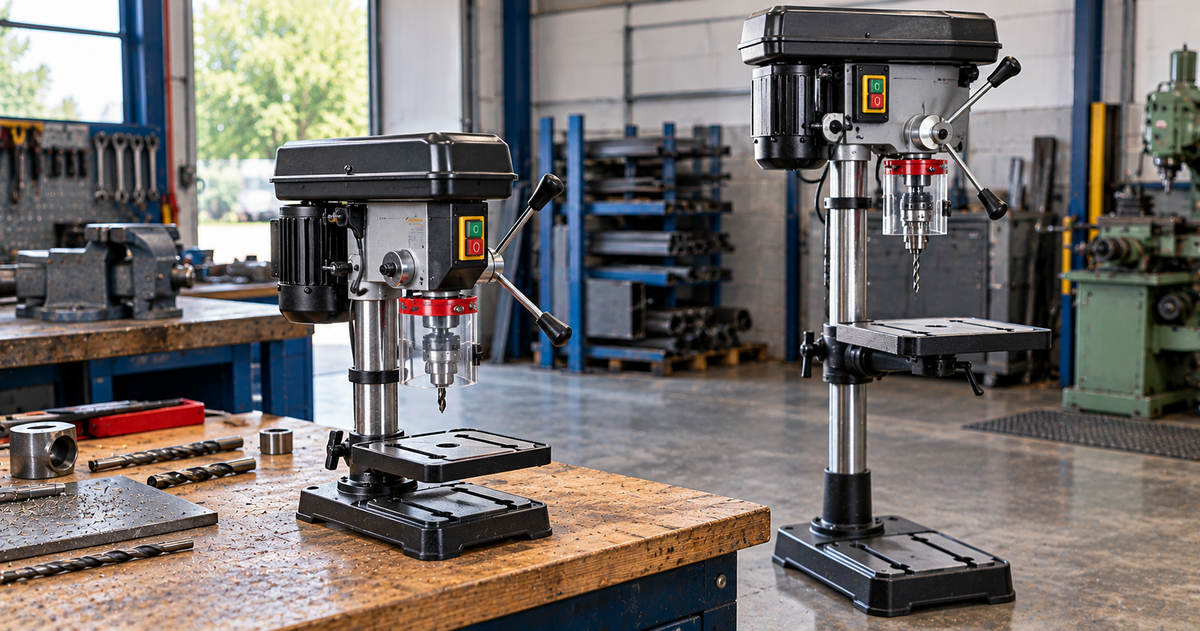

Bench or Floor Pillar Drill? Speeds, Big Holes and Chuck Wobble Bench or floor, and how slow must a pillar drill turn for...

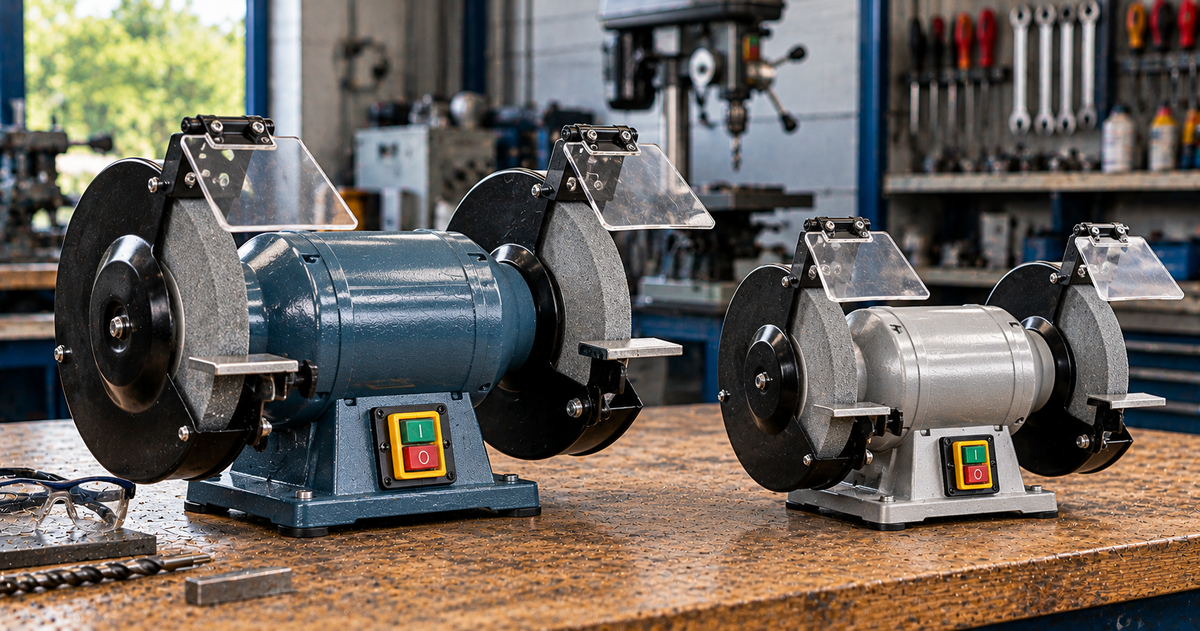

6in or 8in Bench Grinder? Power, Wheels and Vibration Sorted Choosing between a 6in and an 8in bench grinder, or stuck wi...

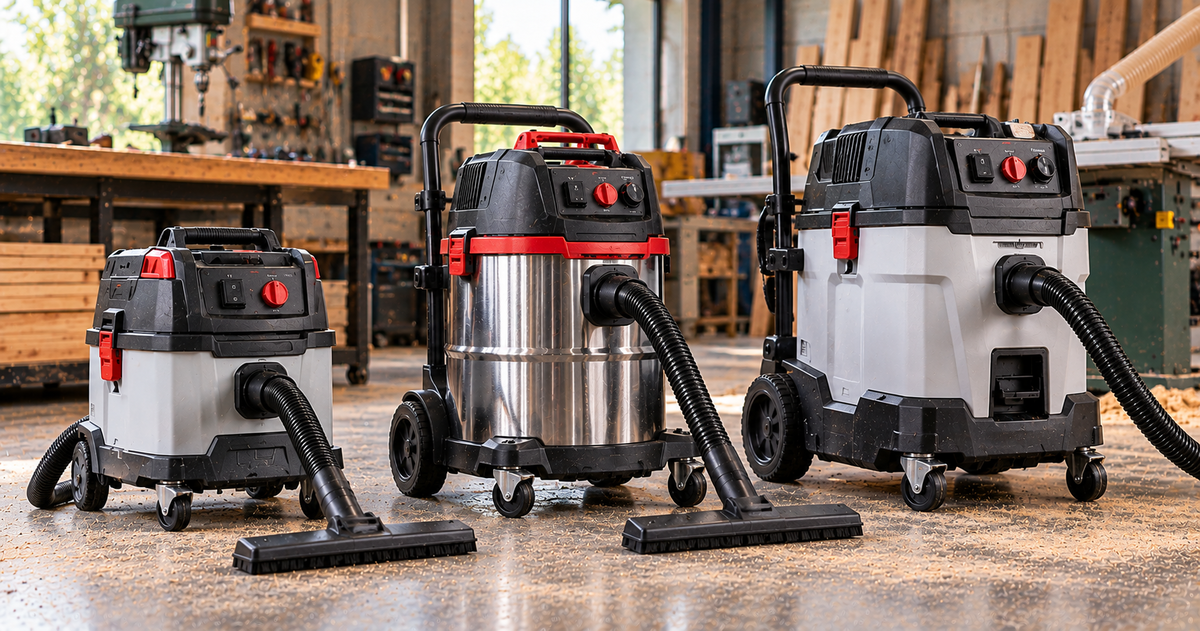

L, M or H Class Vacuum? Pick a Dust Extractor That Keeps Pulling Your old wet and dry vac chokes on sanding dust and le...

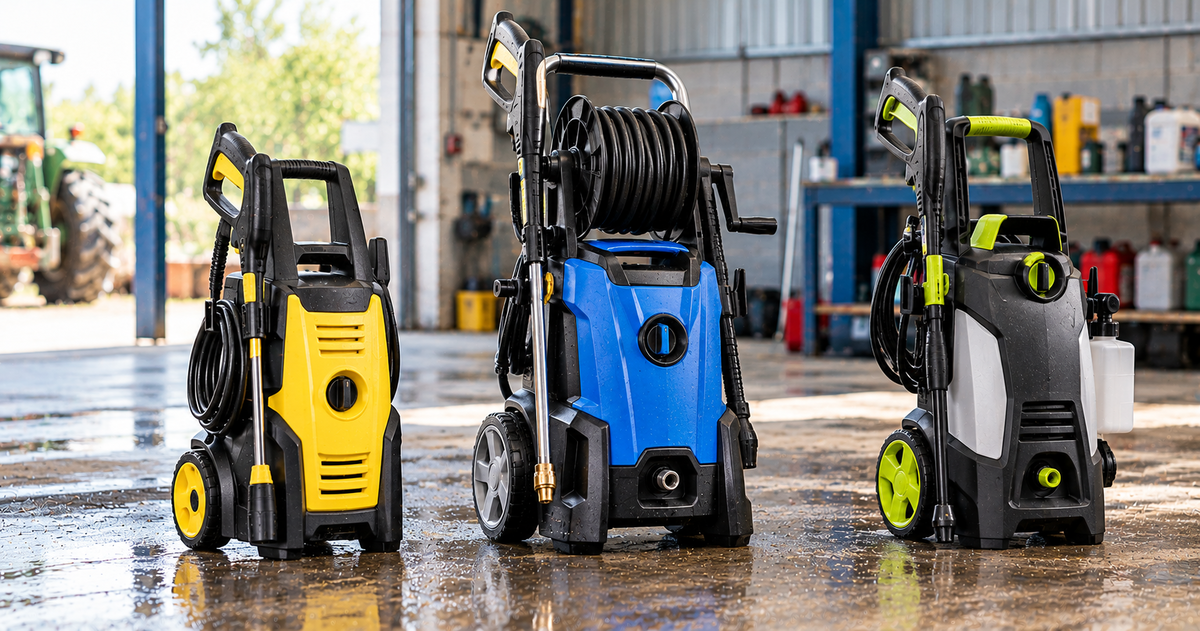

Electric Pressure Washer: Why It Stop-Starts and Which One to Buy Your electric pressure washer keeps switching itself on...

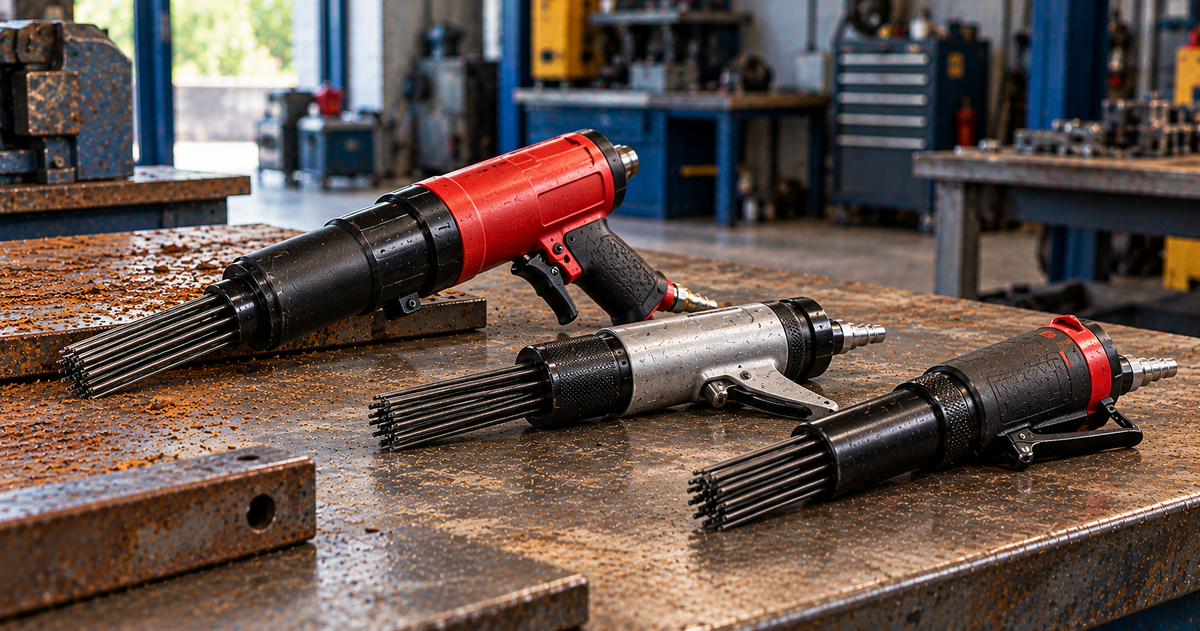

Needle Scaler for Rust: Will It Clear Pits or Dent Thin Panels? Rust scale, flaking paint or weld spatter on a chassis is...
