Product Number: 38255

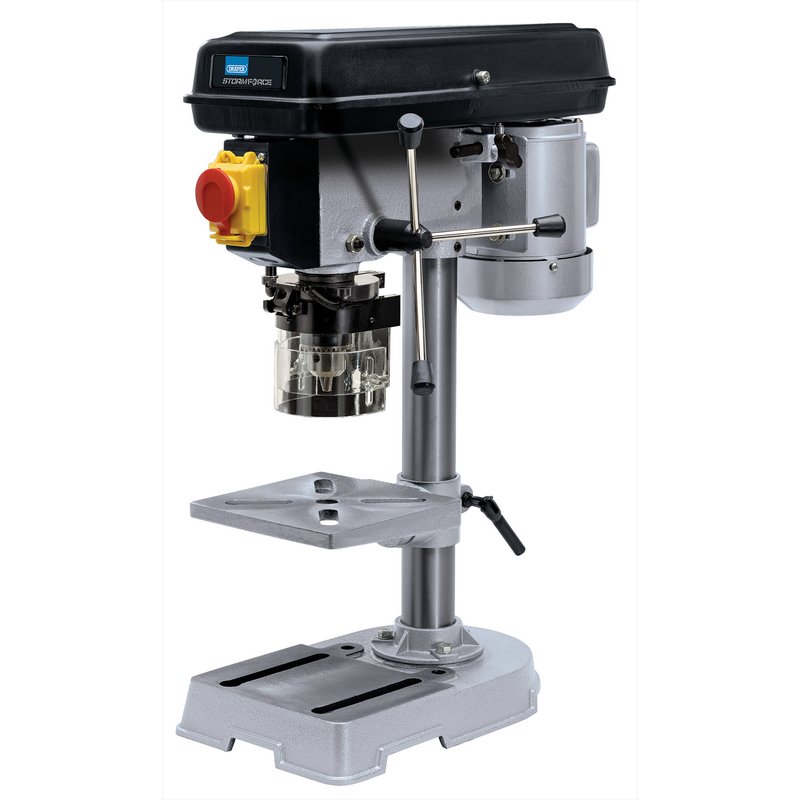

Drilling precise, repeatable holes in a home workshop demands a machine that combines reliable power with controllable speed — the Draper 38255 Storm Force® 5 Speed Bench Drill delivers exactly that at 350W on a 230V supply. Five selectable speeds ranging from 580 to 2,650 r/min allow the operator to match the spindle speed to the material and bit being used, while a 13mm drilling capacity and 1.5–13mm chuck capacity accommodate a wide range of twist drills and accessories. The MT2 spindle taper provides a secure, standardised interface, and 50mm of spindle travel gives sufficient depth for most bench drilling tasks. Safety is addressed through a No-Volt safety release switch, which prevents unexpected restart after a power interruption, alongside a chuck guard to shield the operator during use. A depth stop enables consistent, repeatable hole depths across batch work, and the lockable pulley cover keeps the drive mechanism protected. The motor casing is manufactured in steel for durability in a workshop environment. Key dimensional data: table size 162 x 162mm, throat depth 104mm, column diameter 60mm, collar diameter 40mm, base size 200 x 320mm, and an overall height of 580mm. The unit weighs 15kg. Supply is via a 1.8m (approx.) cable fitted with a BS approved non-rewireable moulded plug, ready for immediate use from a standard 230V socket. Positioned by Draper as ideal for home workshops.
5 speed bench drill with a 13mm drilling capacity. Fitted with a No-Volt safety release switch, depth stop and chuck guard. Manufactured with a steel motor casing and lockable pulley cover. Supplied with a BS approved non-rewireable moulded plug and 1.8m (approx.) cable. Ideal for home workshops.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Size | 200 x 314 |
|---|---|
| Base Dimensions | 200 x 320mm |
| Chuck Capacity | 1.5-13mm |
| Collar Diameter | 40mm |
| Column Diameter | 60mm |
| Drilling Capacity | 13mm |
| Height | 580mm |
| Speed | 5 (580-2650r/min) |
| Spindle Taper | MT2 |
| Spindle Travel | 50mm |
| Table Size | 162 x 162mm |
| Throat Depth | 104mm |
| Weight | 15kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
51769 | Draper 51769 BASE | 1 Unit |
£23.83
£23.36
|
Add |
|
|
51771 | Draper 51771 COLUMN SUPPORT | 1 Unit |
£16.68
£16.35
|
Add |
|
|
51799 | Draper 51799 V-BELT (APZ 2672) | 1 Unit |
£22.74
£22.29
|
Add |
|
|
51816 | Draper 51816 HEX NUT M6 | 1 Unit |
£8.54
£8.37
|
Add |
|
|
51893 | Draper 51893 COIL SPRING | 1 Unit |
£13.61
£13.34
|
Add |
|
|
51902 | Draper 51902 LIMIT BOLT | 1 Unit |
£13.17
£12.91
|
Add |
38255ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
Draper 34023 Variable Speed Mini Milling/Drilling Machine, 350W
£918.95
£900.93
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
Sealey PDM10B Bench Pillar Drill 720W with Digital Display & Laser Guide
£195.81
£191.97
2% OFF
Free delivery in UK Mainland
|
Sealey GDM790BR 5-Speed Radial Bench Pillar Drill 820mm 550W 230V
£398.03
£390.23
2% OFF
Free delivery in UK Mainland
|
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 550W 1620mm
£488.13
£478.56
2% OFF
Free delivery in UK Mainland
|
Sealey PDM125B Pillar Drill Bench 16-Speed 1050mm 230V
£446.88
£438.12
2% OFF
Free delivery in UK Mainland
|
Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V
£565.03
£553.95
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM50B Bench Pillar Drill 5-Speed 370W 750mm
£318.88
£312.63
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 95043 | 34023 | 95314 | 02016 | 02017 | 02019 | 95092 | PDM10B | GDM790BR | GDM1630FR | PDM125B | PDM155B | GDM150B | GDM180B | GDM50B |
A. The drill has a maximum drilling capacity of 13mm, with a chuck capacity ranging from 1.5mm to 13mm to accommodate a variety of drill bits.
A. The drill features five selectable speeds spanning 580 to 2,650 r/min, allowing the operator to select the most appropriate speed for the material and bit in use.
A. The drill is fitted with a No-Volt safety release switch, which prevents unexpected restart after a power interruption, and a chuck guard to protect the operator during operation.
A. The drill uses an MT2 (Morse Taper 2) spindle taper, a standard interface compatible with a wide range of drill press accessories and tooling.
A. The table measures 162 x 162mm, throat depth is 104mm, column diameter is 60mm, base size is 200 x 320mm, overall height is 580mm, and the unit weighs 15kg.
A. The drill operates on a 230V supply and is supplied with an approximately 1.8m cable fitted with a BS approved non-rewireable moulded plug, ready for use from a standard domestic or workshop socket.
