Product Number: 02016

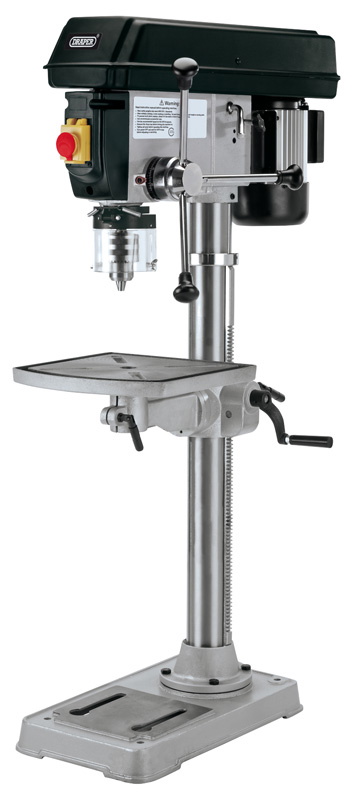

Workshop drilling tasks demand consistent accuracy and a reliable range of speeds — the Draper 2016 12 Speed Bench Drill delivers precisely that, with 12 selectable speeds spanning 180 to 2,740 rpm and a 20mm drilling capacity, making it well suited to automotive and maintenance workshop environments. The square 305 x 305mm table is fitted with a smoothly operated rack and pinion mechanism that allows straightforward height adjustment. Safety is addressed through a No-Volt safety release switch, a depth stop for repeatable drilling depths, and a chuck guard. The lockable pulley cover keeps the drive system protected during operation, and the motor casing is manufactured from steel. The chuck accepts shank diameters from 3mm to 16mm, with an MT2 spindle taper and 80mm of spindle travel. A throat depth of 185mm accommodates a useful range of workpiece sizes. The column diameter is 73mm and the collar diameter 60mm. The machine stands 1,050mm in height and has a base footprint of 485 x 280mm, with a total weight of 58kg. Supplied ready to use with a BS approved non-rewireable moulded plug and an approximately 1.8m cable. Suitable for bench mounting in professional workshop settings where a consistent, multi-speed drilling capability is required.
12 speed bench drill with a 20mm drilling capacity. Ideal for automotive and maintenance workshops. The square table is fitted with a smoothly operated rack and pinion mechanism for easy adjustment. Fitted with a No-Volt safety release switch, depth stop and chuck guard. Manufactured with a steel motor casing and lockable pulley cover. Supplied with a BS approved non-rewireable moulded plug and 1.8m (approx.) cable.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Size | 485 x 280mm |
|---|---|
| Chuck Capacity | 3-16mm |
| Collar Diameter | 60mm |
| Column Diameter | 73mm |
| Drilling Capacity | 20mm |
| Height | 1050mm |
| Speed | 12 (180-2740r/min) |
| Spindle Taper | MT2 |
| Spindle Travel | 80mm |
| Table Size | 305 x 305mm |
| Throat Depth | 185mm |
| Weight | 58kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
22114 | Draper 22114 PULLEY INSERT ASSEMBLY | 1 Unit |
£35.96
£35.25
|
Add |
|
|
22116 | Draper 22116 BELT M24 | 1 Unit |
£15.19
£14.89
|
Add |
|
|
22117 | Draper 22117 SPINDLE PULLEY | 1 Unit |
£40.44
£39.65
|
Add |
|
|
22661 | Draper 22661 PULLEY COVER | 1 Unit |
£119.80
£117.45
|
Add |
|
|
23019 | Draper 23019 MOTOR PULLEY | 1 Unit |
£41.50
£40.69
|
Add |
|
|
23303 | Draper 23303 CENTER PULLEY ASSEMBLY | 1 Unit |
£70.58
£69.20
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
SIP 01712 Pro B16 16-Speed 550w Bench Pillar Drill
£336.55
£329.95
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 95314 | 95092 | GDM200F/VS | DPG30 | DPG99 | 01712 |
A. The Draper 2016 has a maximum drilling capacity of 20mm, with a chuck accepting shank diameters from 3mm to 16mm.
A. The drill provides 12 selectable speeds ranging from 180 to 2,740 rpm, allowing the operator to match the speed to the material and bit size.
A. The spindle uses an MT2 (Morse Taper 2) fitting, with 80mm of spindle travel.
A. The machine is fitted with a No-Volt safety release switch, a depth stop for repeatable drilling, and a chuck guard. The pulley cover is lockable.
A. The square table measures 305 x 305mm. The base footprint is 485 x 280mm. The machine stands 1,050mm in height and weighs 58kg.
A. Yes — it is supplied with a BS approved non-rewireable moulded plug and an approximately 1.8m cable.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
