Product Number: GDM50B
Variations

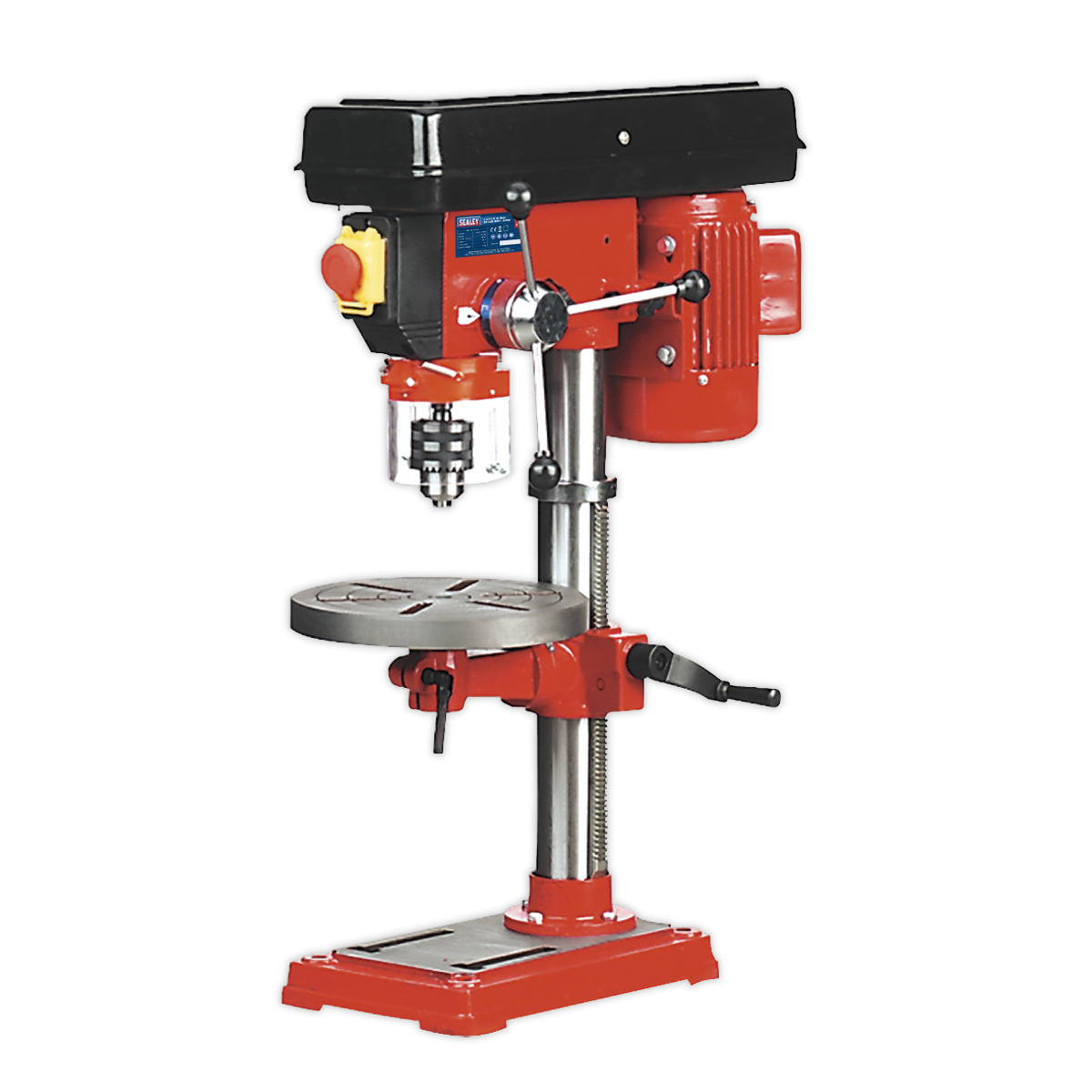

For light industrial, agricultural, and woodworking tasks where bench space is at a premium but drilling accuracy still matters, the Sealey GDM50B offers a compact and capable solution. Standing 750mm tall and weighing 32kg, this 5-speed bench pillar drill runs on a 220W motor with 370W input power, covering a speed range of 460-2890rpm to handle a variety of materials and drill bit sizes. The 16mm (5/8") capacity chuck is fitted with an MT2 Morse taper spindle nose, meaning the GDM50B like all models from GDM50B upward in the Sealey range accepts taper shank drill bits for extended versatility. The rack and pinion feed shaft includes preset depth control for consistent, repeatable results across production runs. The 60mm column diameter and 127mm spindle centre-to-column measurement keep the footprint manageable, with a base size of 345 x 215mm. Spindle travel is 60mm, maximum spindle-to-table distance is 300mm, and spindle-to-base is 450mm. Safety features include a no-voltage release switch allowing insurance company approval for use in educational establishments and mechanical guarding that prevents access to the drive belts during operation. A mortise attachment is available separately as Model No. MA10. An optional keyless chuck upgrade is also available as GDMX/KC.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM50B |
|---|---|
| Base Size | 345 x 215mm |
| Brand | Sealey |
| Collar Diameter | Ø55mm |
| Column Diameter | Ø60mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 450mm |
| Maximum Distance Spindle to Table | 300mm |
| Motor Power (Start) | 220W(370W) |
| Nett Weight | 32kg |
| Number of Speeds | 5 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 750mm |
| Speed Range | 460-2890rpm |
| Spindle Centre to Column | 127mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 60mm |
| Supply | 230V |
| Swing | 254mm |
| Working Base Surface Size | 160 x 180mm |
| Working Table Surface Size | Ø248mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
GDMX/KC | Sealey GDMX/KC B16 Arbor 16mm Keyless Pillar Drill Chuck | 1 Unit |
£80.85
£79.26
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Sealey PDM125B Pillar Drill Bench 16-Speed 1050mm 230V
£446.88
£438.12
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM140F | GDM150B | GDM160F | PDM125B | GDM180B | 6505592 | 7610850 | 7610860 | 95043 |
A. The GDM50B is fitted with a 16mm (5/8") capacity chuck with an MT2 Morse taper spindle nose, allowing it to accept taper shank drill bits.
A. The GDM50B has 5 speeds with a range of 460-2890rpm.
A. Yes. The no-voltage release switch meets the requirements for insurance company approval for use in educational establishments.
A. Overall height is 750mm, base size is 345 x 215mm, column diameter is 60mm, spindle centre to column is 127mm, spindle travel is 60mm, maximum spindle-to-table distance is 300mm, maximum spindle-to-base distance is 450mm, and weight is 32kg.
A. The motor power is 220W with an input power of 370W on a 230V supply.
A. Yes. A mortise attachment is available as Model No. MA10, and an optional keyless chuck upgrade is available as GDMX/KC.
A. Yes. The SDM30 is a variant within the same Sealey bench pillar drill family and may suit different power or size requirements.
A. Yes. The GDM120B and GDM150B are bench-mounted alternatives, while the GDM140F and GDM160F are floor-standing alternatives offering similar drilling capability.
A. The GDM50B is designed to suit light industrial, agricultural, and woodworking applications.
