Product Number: GDM180B

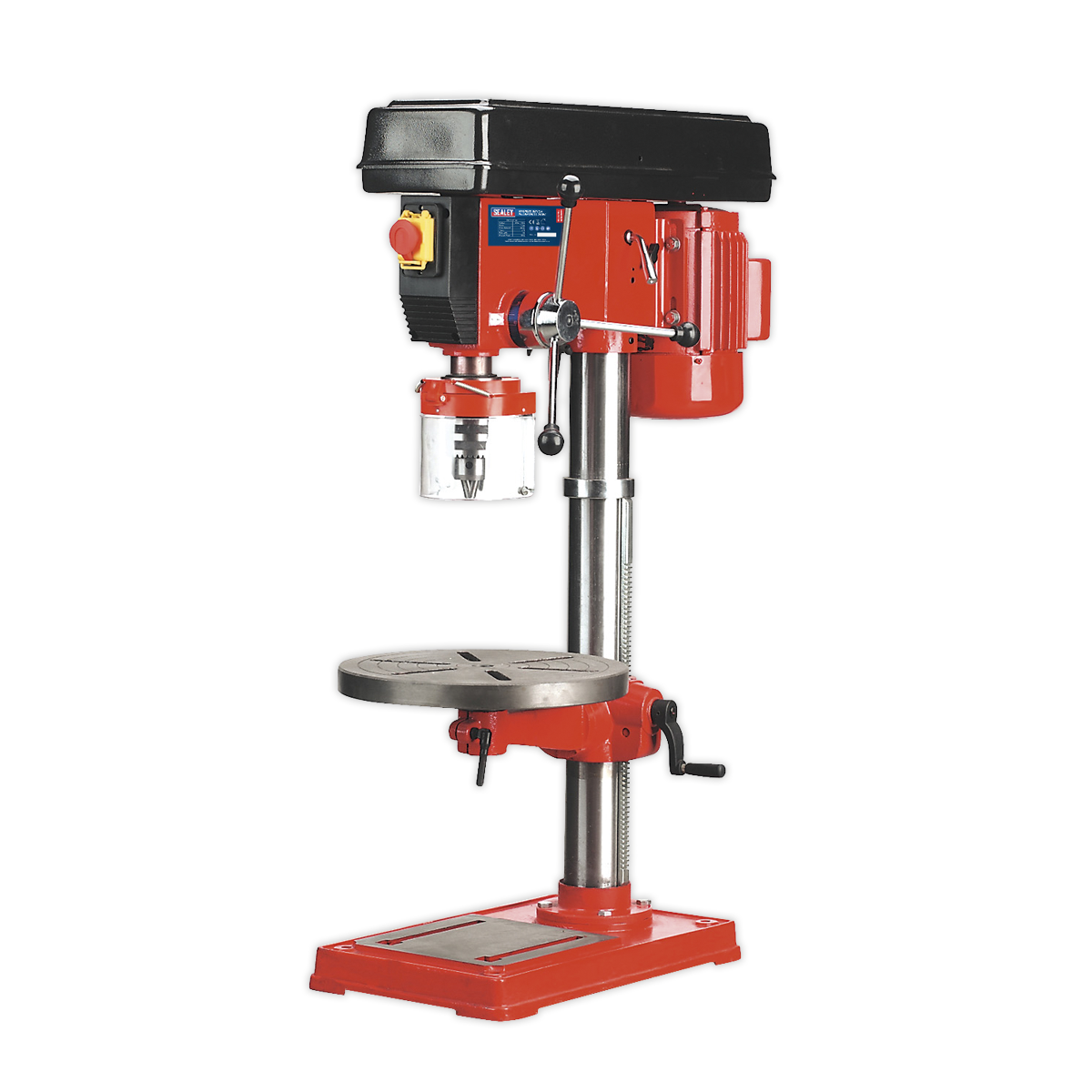

Achieving consistent, accurate holes in light industrial, agricultural, or woodworking settings demands a drill press that combines power, precision, and genuine safety credentials. The Sealey GDM180B bench pillar drill delivers exactly that, standing 1085mm tall with a 750W input power and a 550W motor driving 16 speeds across a 120-3000rpm range giving you the flexibility to work across timber, metal, and other materials without compromise. The 20mm capacity chuck with MT3 Morse taper spindle housing accepts taper shank drill bits, extending versatility beyond standard chuck work. A rack and pinion feed shaft with adjustable preset depth control makes repetitive drilling accurate and efficient. The spindle centre to column measures 216mm, with a maximum spindle-to-table distance of 495mm and spindle-to-base of 685mm, accommodating a wide range of workpiece sizes on the 520 x 320mm base. Safety is built in throughout: a no-voltage release switch prevents accidental restart after power loss, which meets the requirements for use in educational establishments and qualifies for insurance company approval in those settings. Drive belt access is mechanically blocked during operation. The GDM180B meets the Safety of Machinery (Safety) Directives 1992 and amendments. Please note this item is heavy additional assistance must be provided at the delivery point for safe unloading. An optional mortise attachment is available separately.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM180B |
|---|---|
| Base Size | 520 x 320mm |
| Brand | Sealey |
| Collar Diameter | 75mm |
| Column Diameter | 80mm |
| Drilling Capacity (Chuck Size) | 20mm |
| Maximum Distance Spindle to Base | 685mm |
| Maximum Distance Spindle to Table | 495mm |
| Motor Power (Start) | 550W(750W) |
| Nett Weight | 70kg |
| Number of Speeds | 16 |
| Overall Height | 1085mm |
| Speed Range | 120-3000rpm |
| Spindle Centre to Column | 216mm |
| Spindle Nose Taper | MT3 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 432mm |
| Working Base Surface Size | 240 x 280mm |
| Working Table Surface Size | Ø355mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MA10 | Sealey MA10 Wood Mortising Attachment 40-65mm with Chisels for Drills | 1 Unit |
£57.16
£56.04
|
Add |
|
GDMX/KC | Sealey GDMX/KC B16 Arbor 16mm Keyless Pillar Drill Chuck | 1 Unit |
£80.85
£79.26
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PDM240F Floor Pillar Drill 16-Speed 750W 230V
£712.70
£698.73
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PDM240F | GDM200F | 6505592 | 7610850 | 7610860 | 02016 |
| Base Size | 495 x 290mm | 460 x 275mm | 485 x 280mm | |||
| Collar Diameter | Ø75mm | Ø60mm | 60mm | |||
| Length (mm) | 290 | 275 | 280 | |||
| Spindle Travel | 80mm | 80mm | 80mm | |||
| Weight (kg) | 76 | 63 | 58 | |||
A. The GDM180B is fitted with a 20mm (3/4") capacity chuck with an MT3 Morse taper spindle nose, which allows it to accept taper shank drill bits as well as standard chuck-held bits.
A. The GDM180B offers 16 speeds with a range of 120-3000rpm, giving you the flexibility to match spindle speed to your material and drill bit size.
A. Yes. The no-voltage release switch fitted as standard means the GDM180B qualifies for insurance company approval for use in educational establishments.
A. Overall height is 1085mm. The base size is 520 x 320mm, column diameter is 80mm, spindle centre to column is 216mm, maximum spindle-to-table distance is 495mm, and maximum spindle-to-base distance is 685mm.
A. The motor power is 550W with an input power of 750W on a 230V supply.
A. Yes. The GDM120B and GDM150B are variants in the same Sealey bench pillar drill family, offering different speed counts and power ratings to suit lighter-duty requirements.
A. Yes. The GDM140F, GDM160F, GDM1630FR, and GDM200F are floor-standing alternatives from Sealey that offer similar drilling capability in a floor-standing format.
A. Yes. Sealey state this item is heavy and that extra assistance must be provided at the delivery point to help ensure safe delivery.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
