Product Number: PDM10B

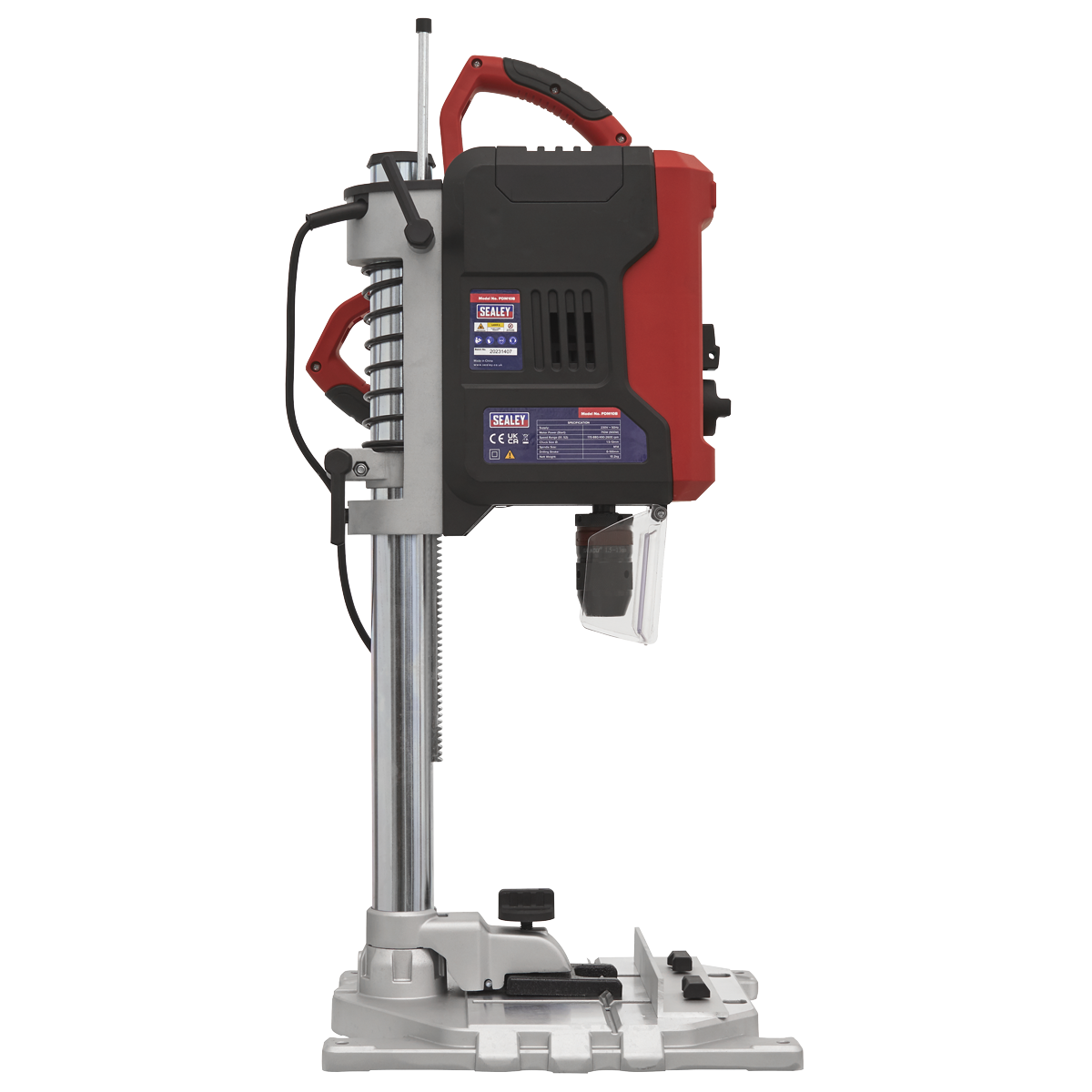

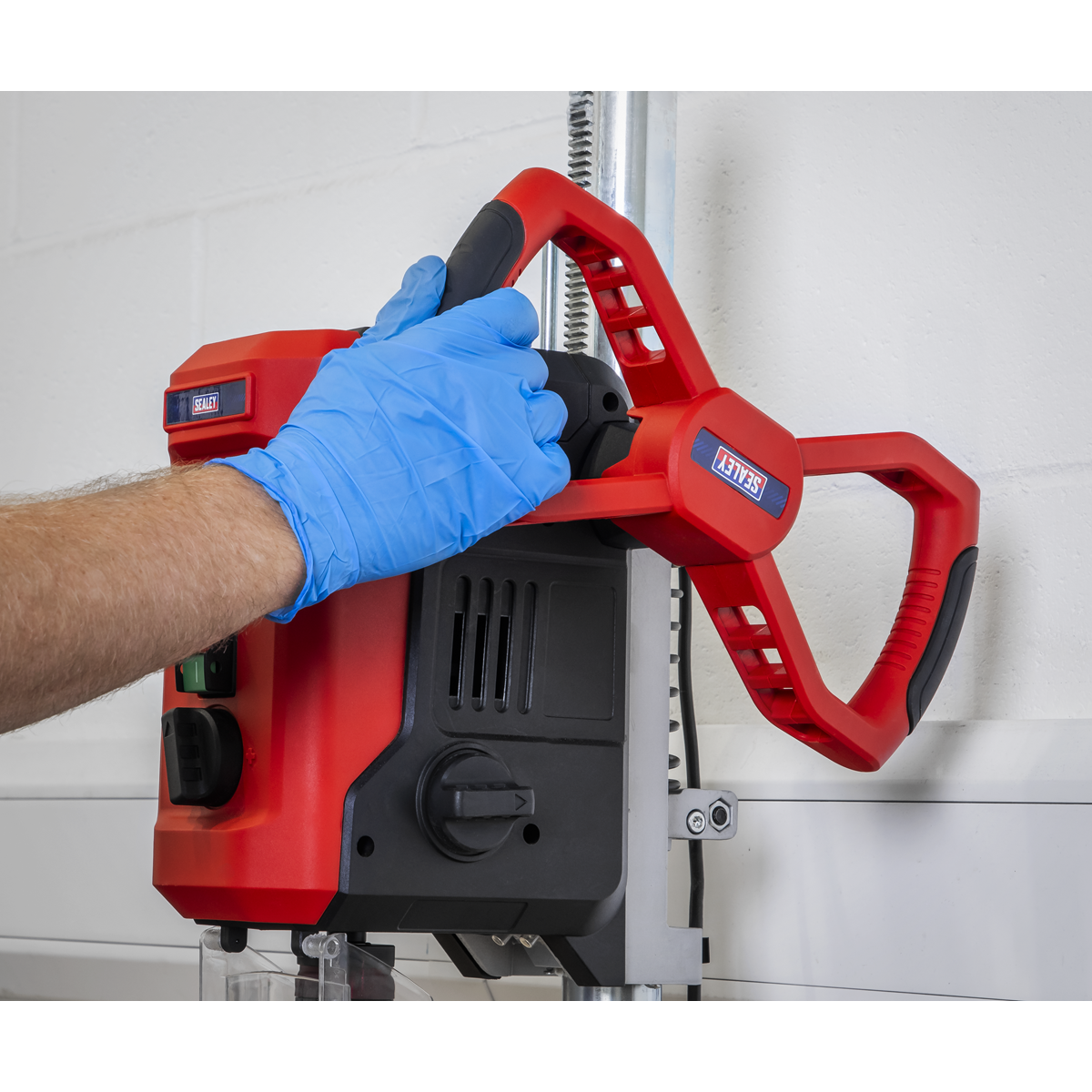

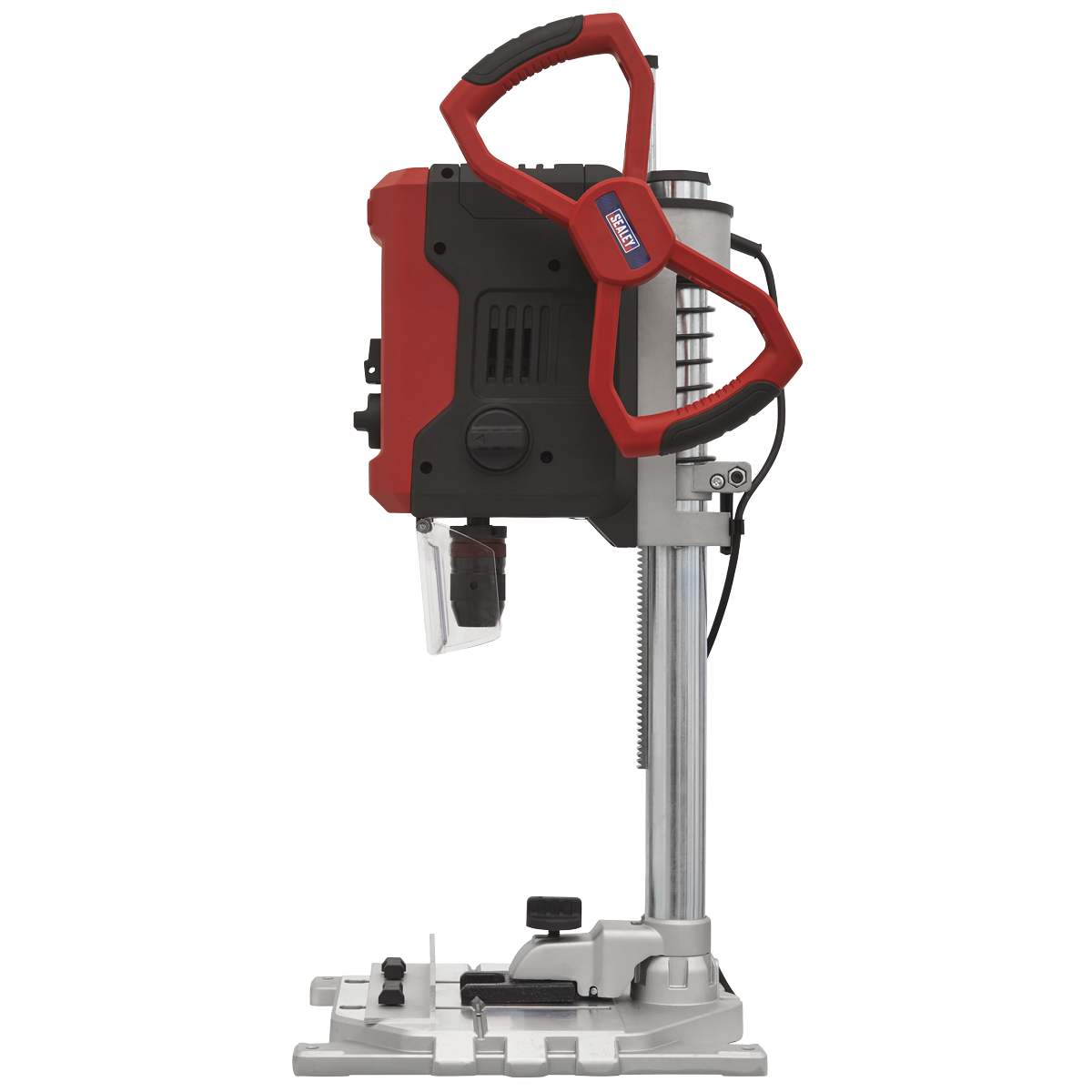

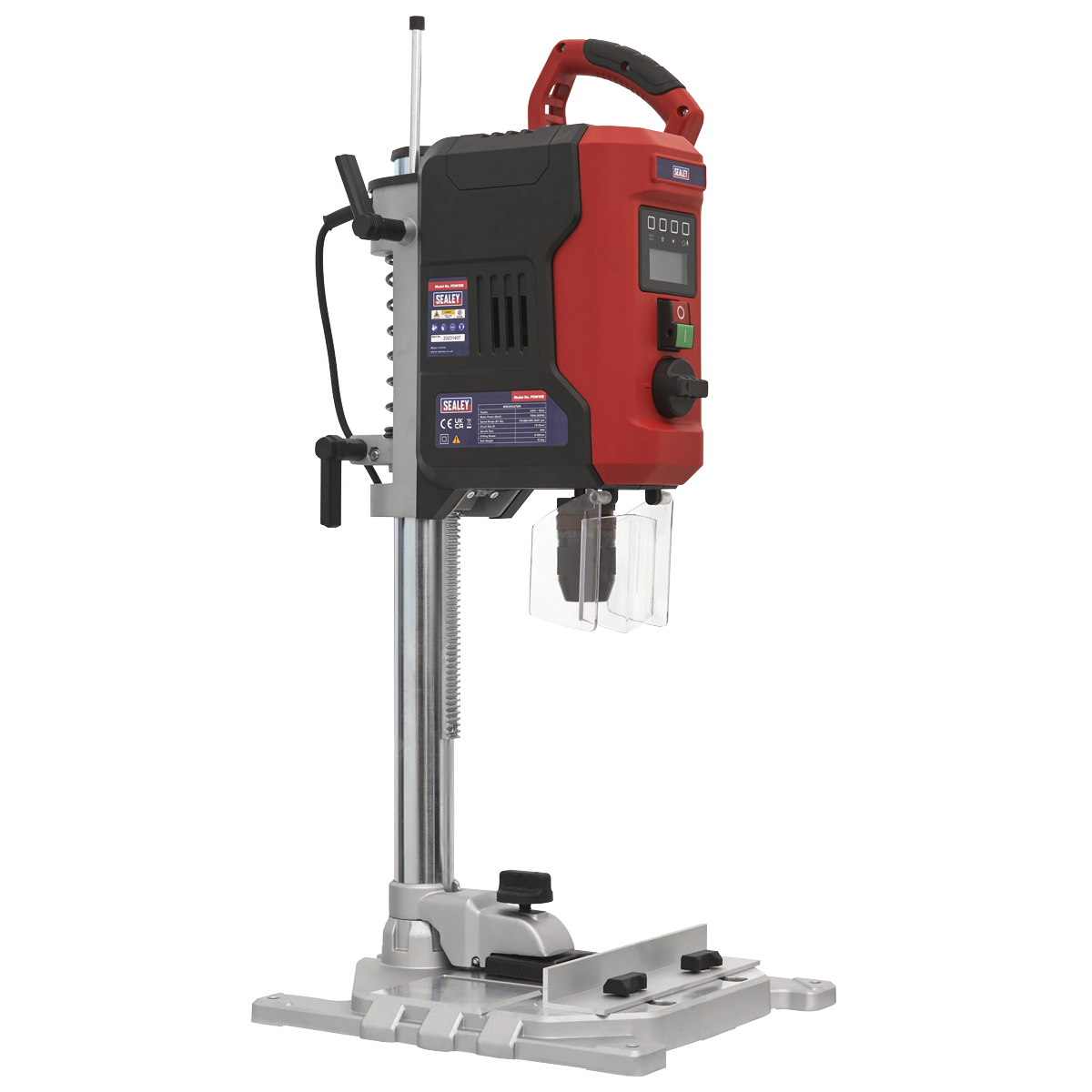

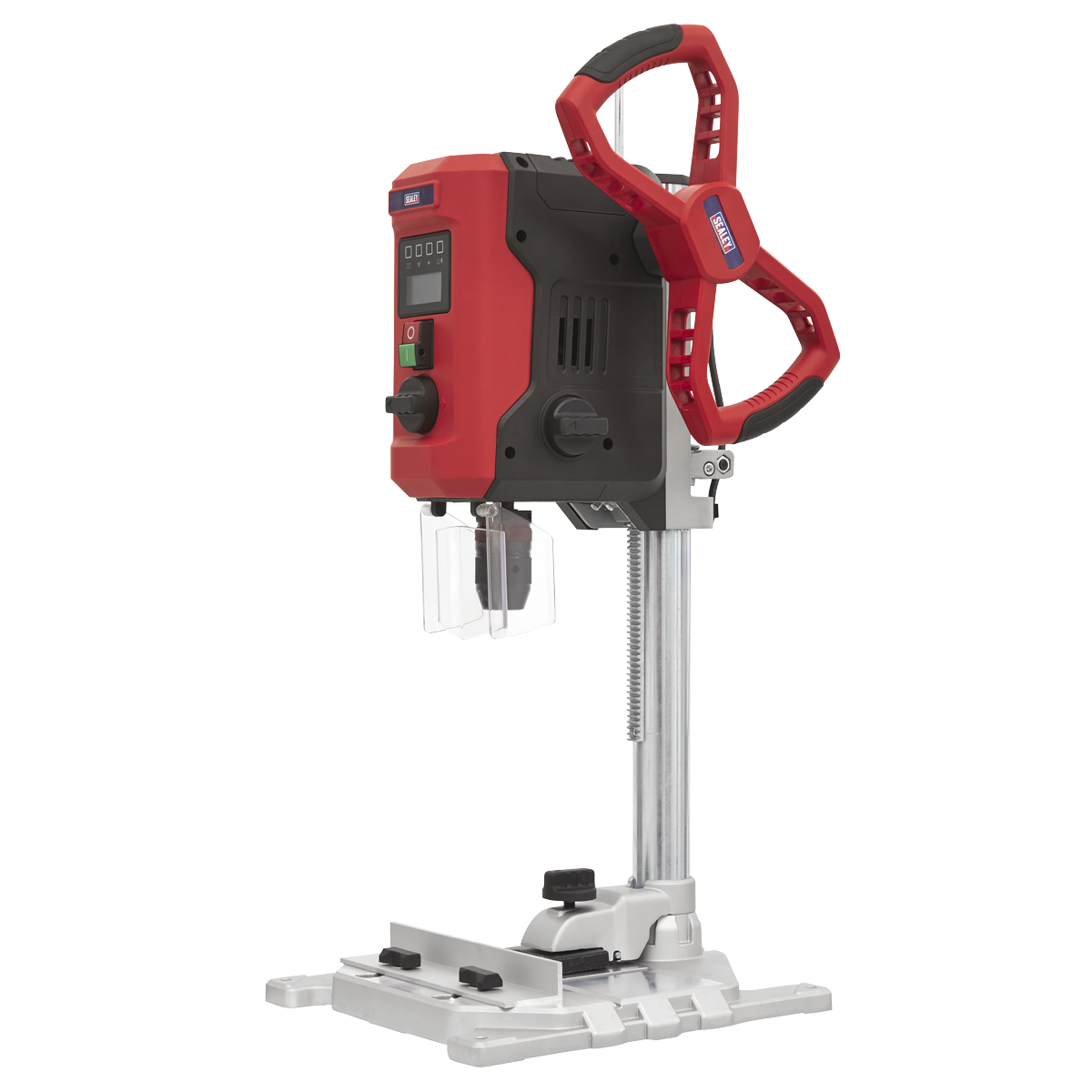

Inconsistent drilling depths and poor visibility at the workpiece are common frustrations on the bench problems the Sealey PDM10B Bench Pillar Drill is built to eliminate. This 720W bench pillar drill combines an integrated LED work light and laser guide for precise bit placement with an easy-to-read LCD display that shows both RPM and spindle travel in real time, giving you exact drilling depth control across its full 100mm stroke. Two variable speed ranges 170 to 880rpm and 490 to 2,600rpm cover a wide range of materials and bit sizes, while the quick-release 1.5 to 13mm chuck makes changing bits fast and straightforward. The wide 330 x 300mm aluminium base provides a corrosion-resistant, stable platform, and the parallel workpiece guide ensures consistent, repeatable results when drilling along the edge of larger surfaces. A rubber-grip handle gives confident control throughout extended use. The PDM10B is a capable and precise bench drill suited to workshops where accuracy matters.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PDM10B |
|---|---|
| Base Size | 330mm x 300mm |
| Brand | Sealey |
| Collar Diameter | Ø43mm |
| Column Diameter | Ø46mm |
| Drilling Capacity (Chuck Size) | 13mm |
| Integral Work Light | Yes, Including Laser Guide. |
| Maximum Distance Spindle to Base | 280mm |
| Maximum Distance Spindle to Table | N/A |
| Motor Power (Start) | 720W(900W) |
| Nett Weight | 10.2kg |
|
Number of Speeds:2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min
|
|
| Optional Accessories | N/A |
| Overall Height | 660mm |
| Speed Range | 170-880/min, 490-2600/min |
| Spindle Centre to Column | 125mm |
| Spindle Nose Taper | N/A |
| Spindle Travel | 100mm |
| Supply | 230V |
| Swing | 250mm |
| Working Table Surface Size | N/A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM120B | GDM140F | GDM150B | GDM160F | DPG230 | DPG30 | 6505592 | 7610850 | 7610860 | 02019 |
A. The PDM10B runs on a 720W motor (900W start).

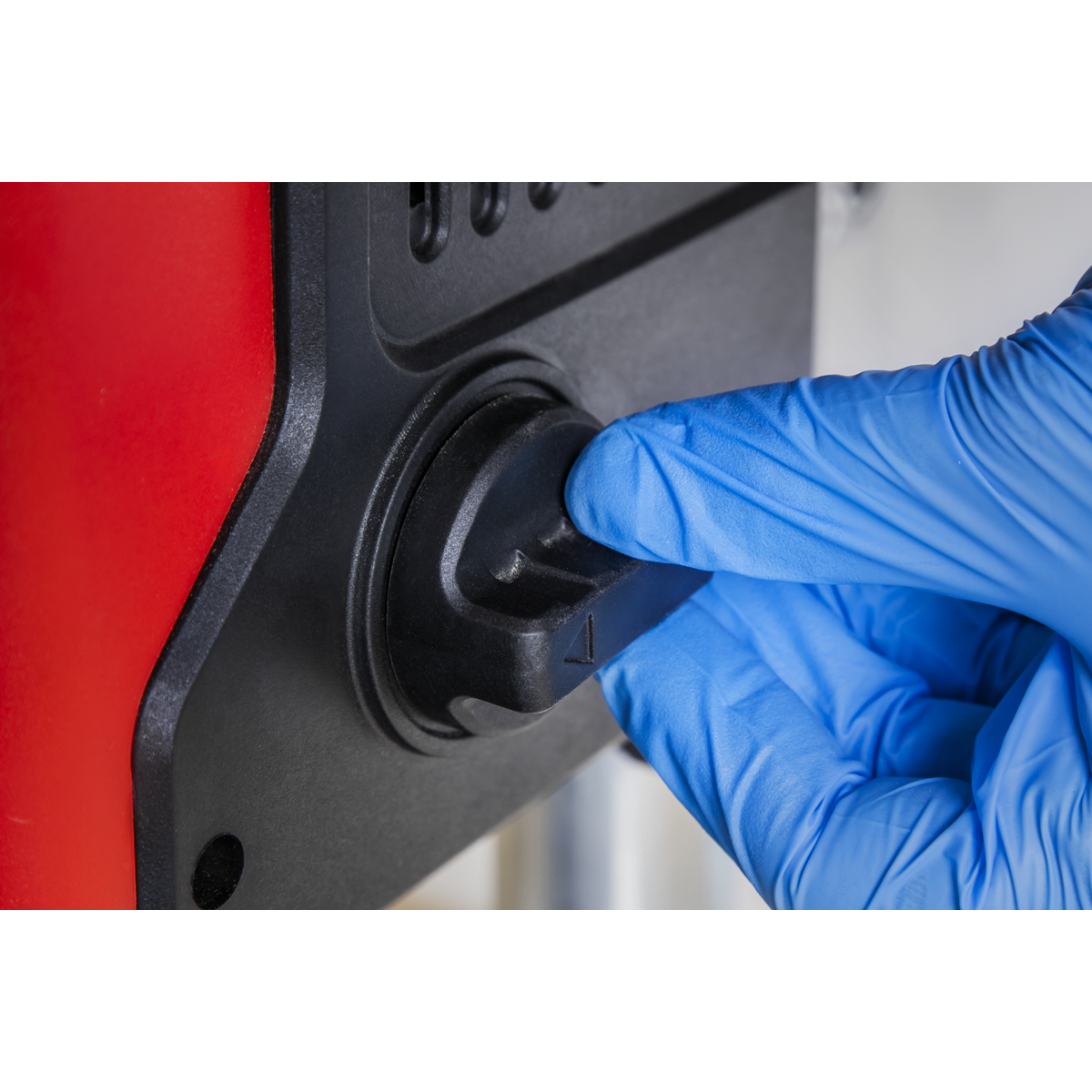

A. The PDM10B has two variable speed ranges: 170-880rpm on the first gear and 490-2,600rpm on the second gear.

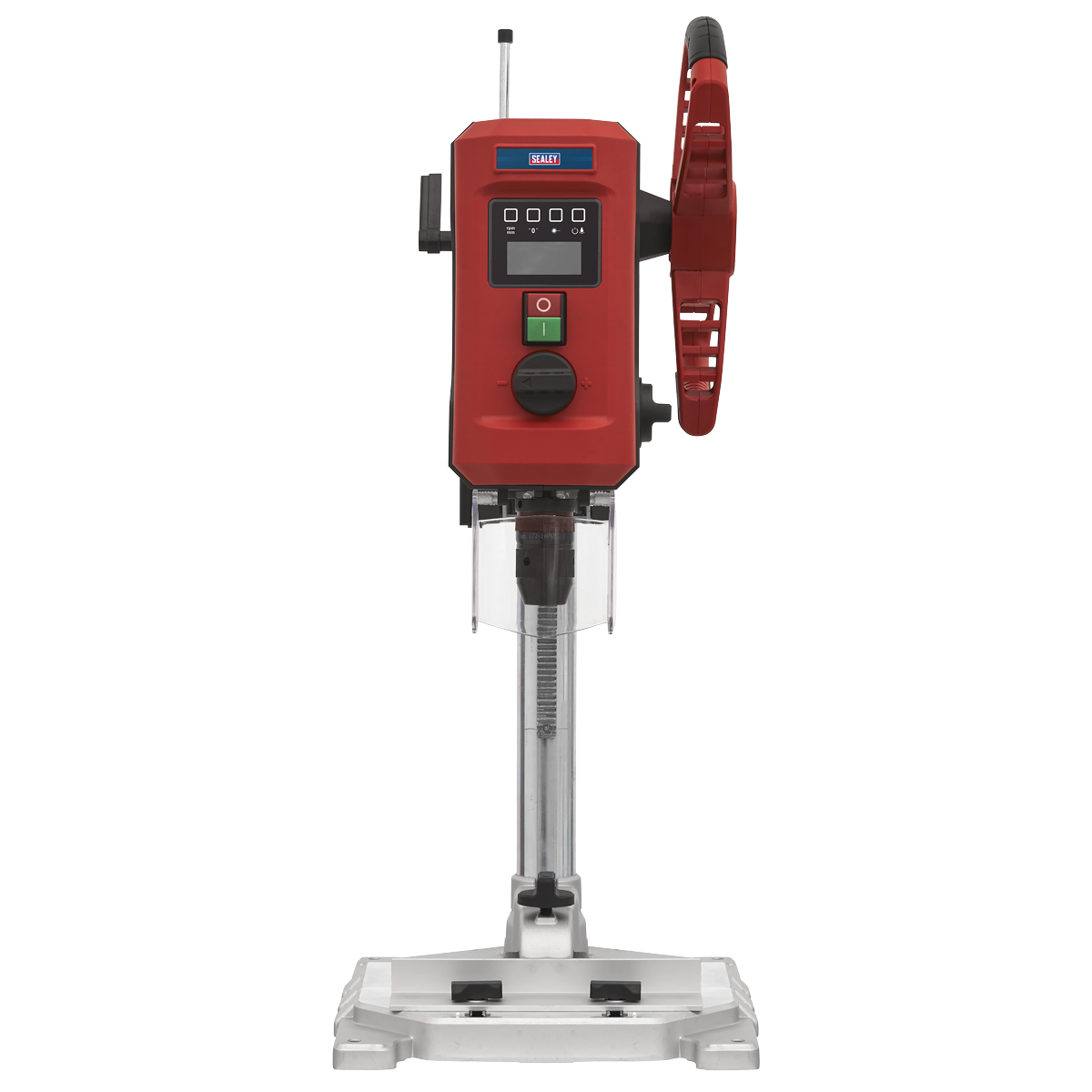

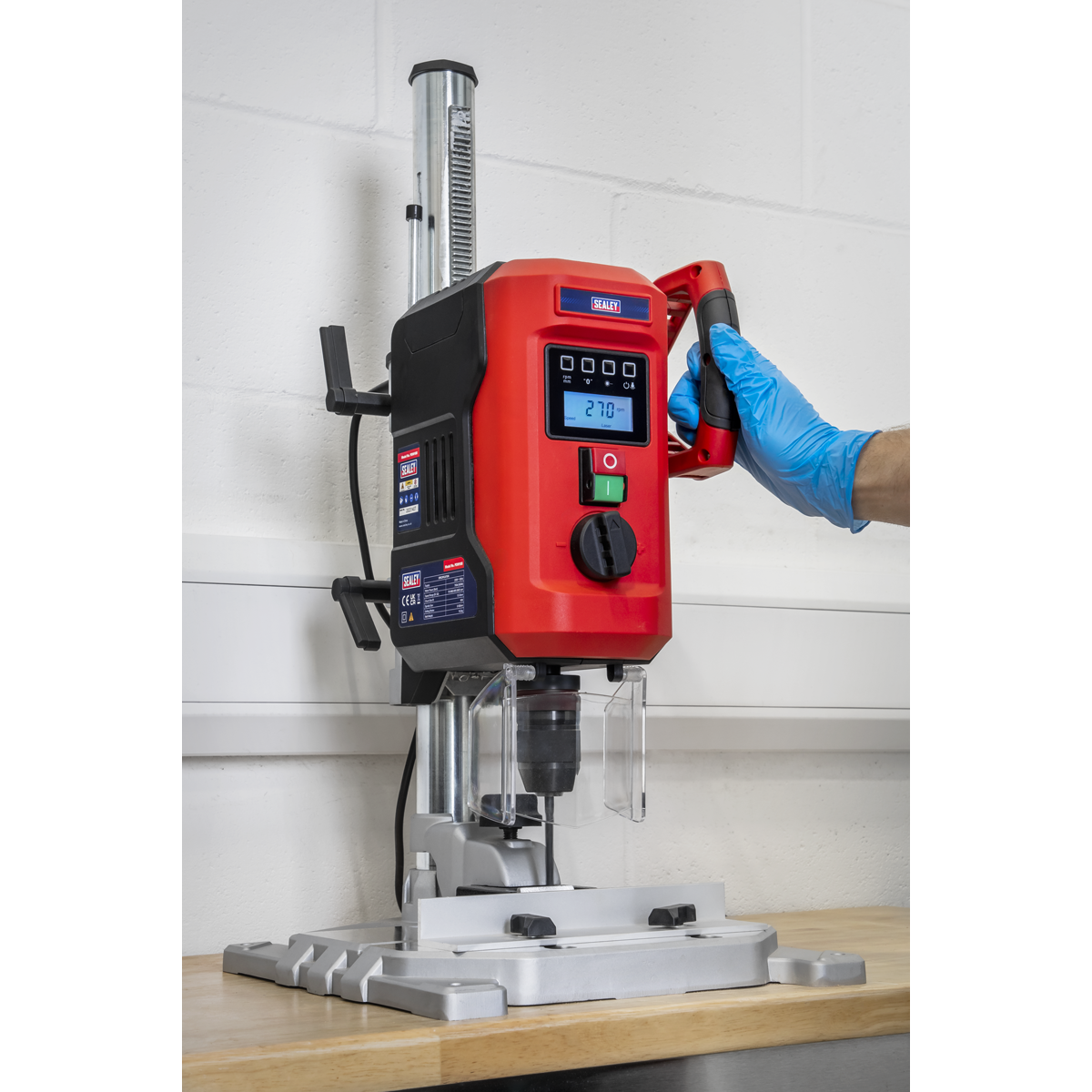

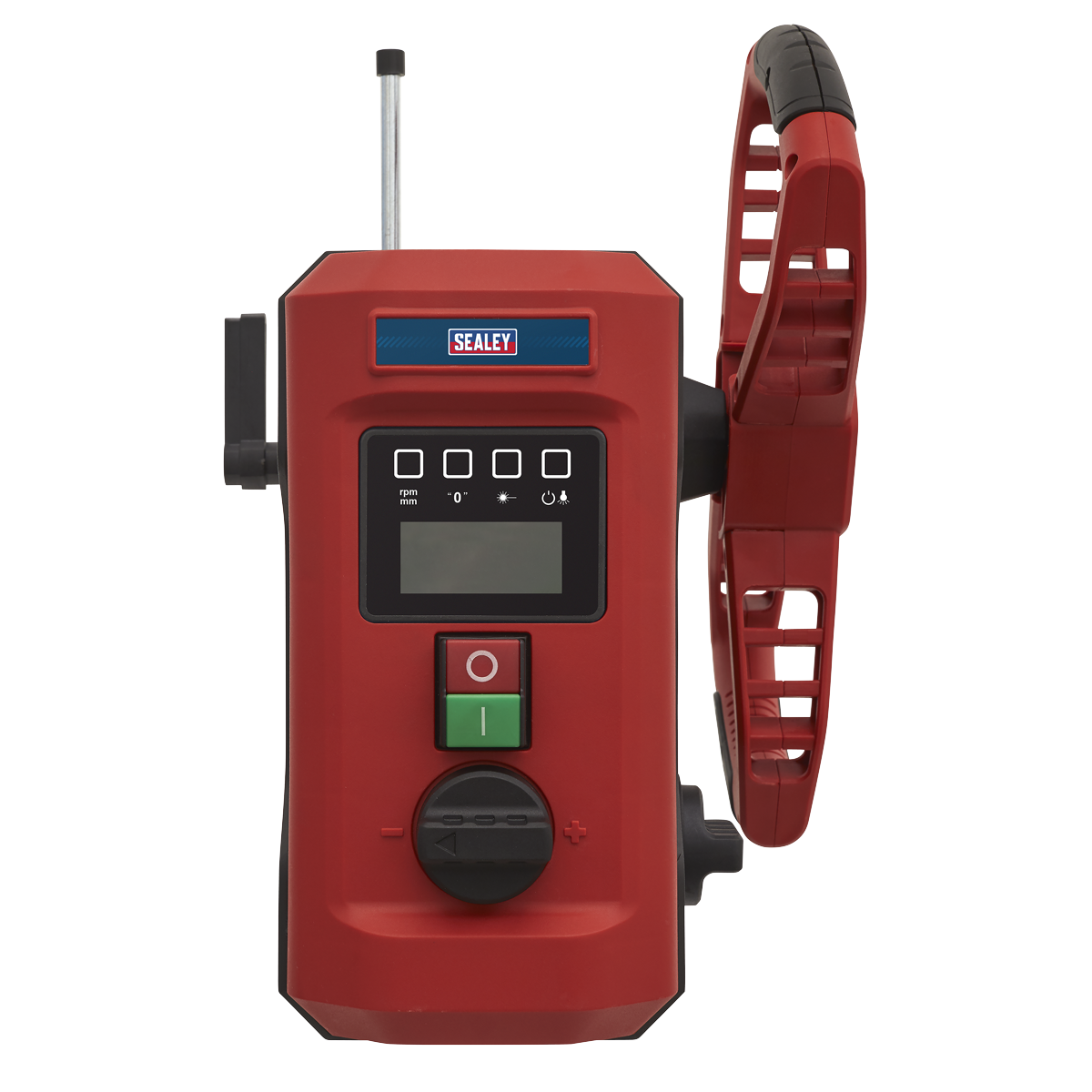

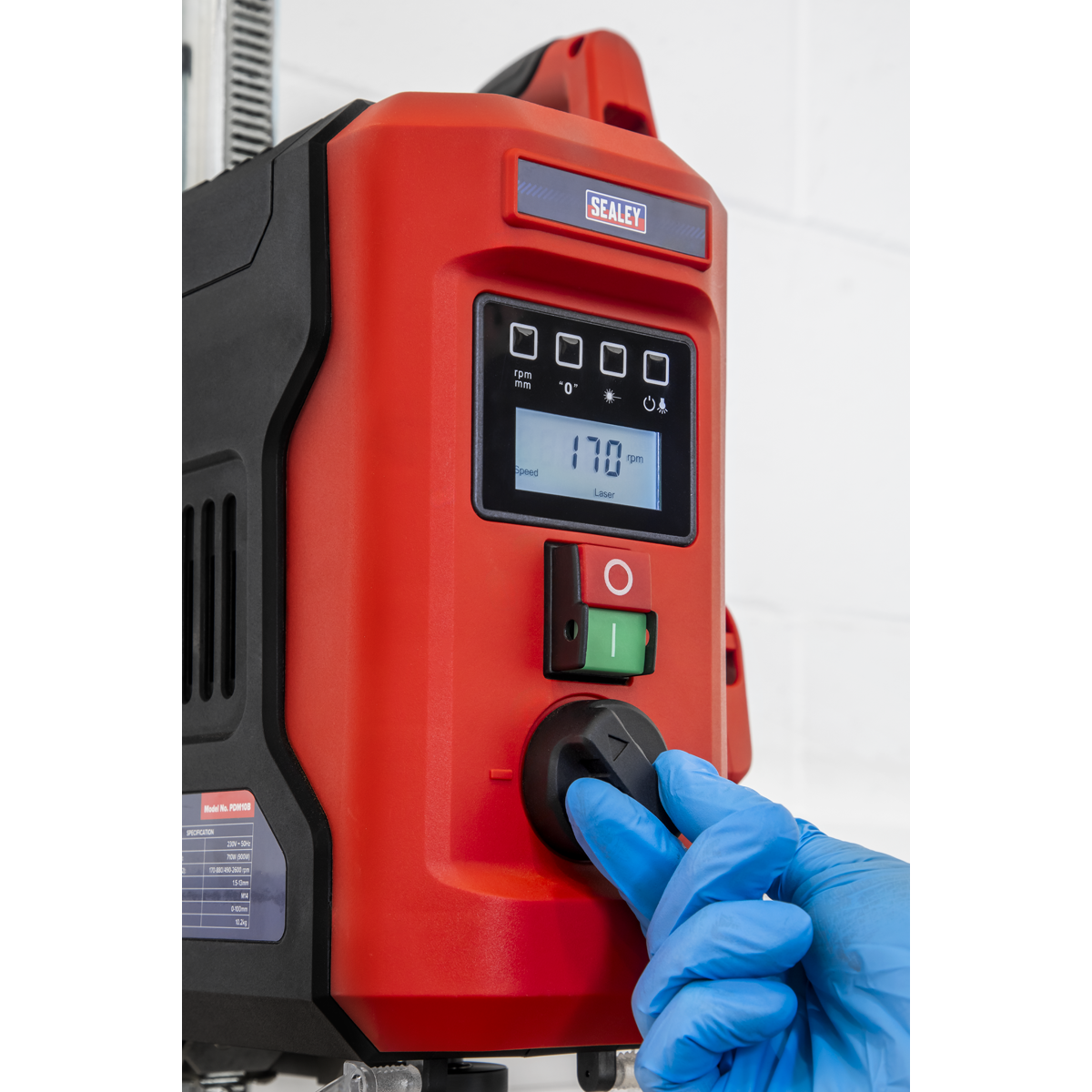

A. Yes. The integrated LCD display shows both RPM and spindle travel, allowing you to monitor drilling depth accurately. The maximum spindle travel is 100mm.

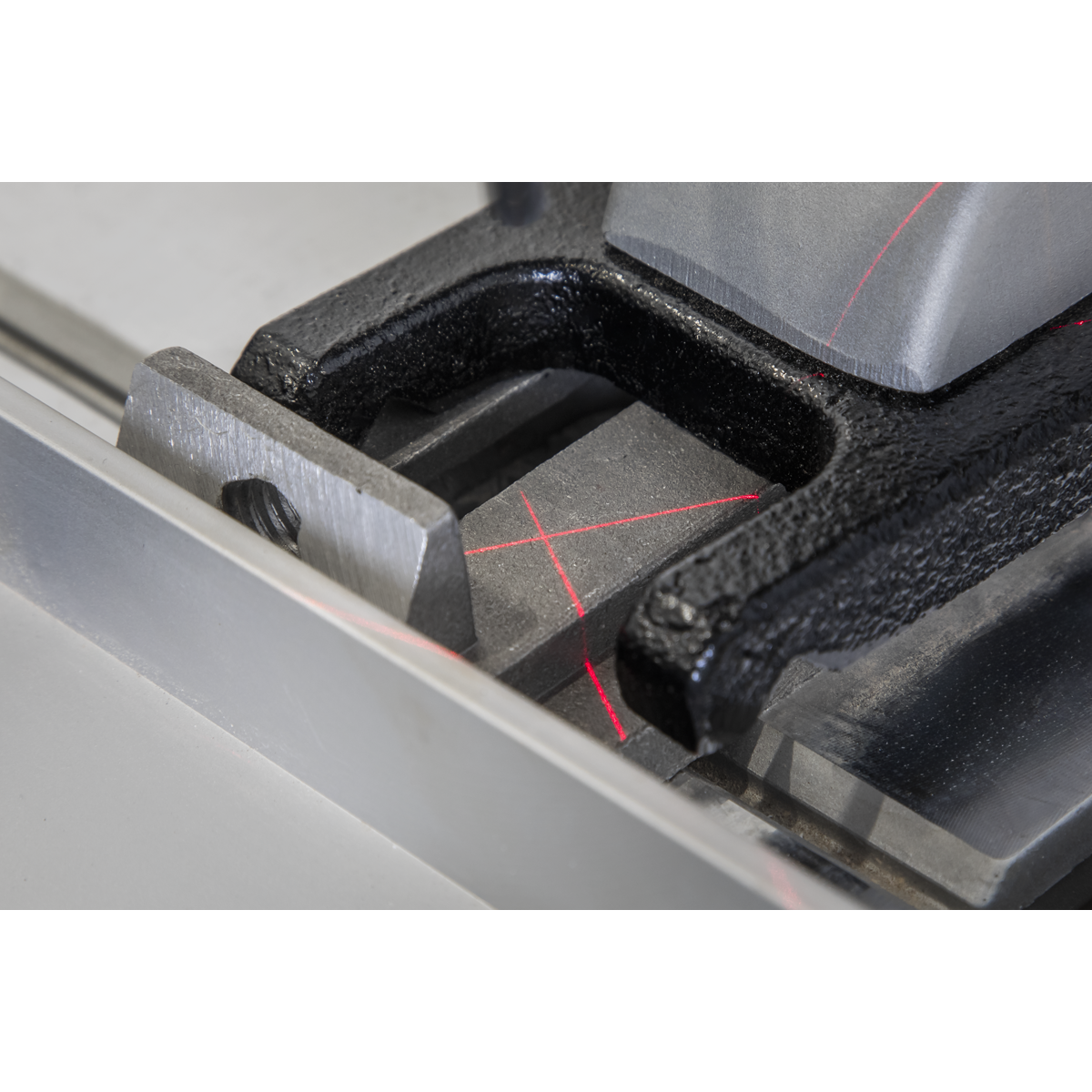

A. Yes. An integrated laser guide is included to help position the drill bit precisely before drilling.

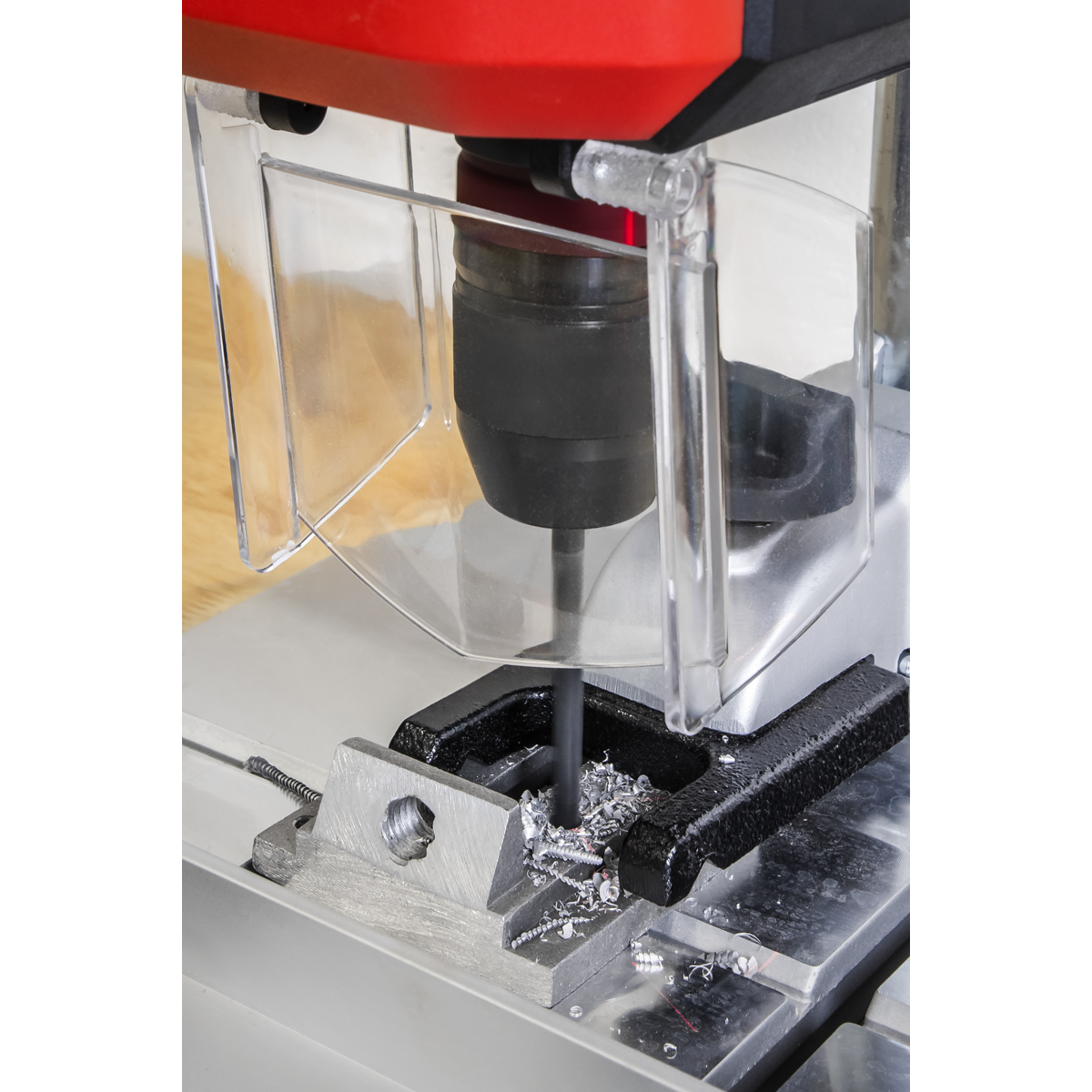

A. The PDM10B has a quick-release chuck with a capacity of 1.5 to 13mm.
A. The base measures 330 x 300mm, the overall height is 760mm, the spindle centre to column distance is 125mm, and the maximum distance from spindle to base is 280mm. The collar diameter is 43mm and the column diameter is 46mm.
A. Yes. The PDM10B has an integrated LED work light to illuminate the workpiece during drilling.
A. Yes. Alternative pillar drill options include the GDM120B, GDM140F, GDM150B, and GDM160F - each a different product with its own specification. Check individual product listings or contact Parts for Machines for guidance on which model best suits your requirements.
A. Yes. The wide base is made from aluminium, which is corrosion-free.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
