Product Number: GDM790BR
Variations

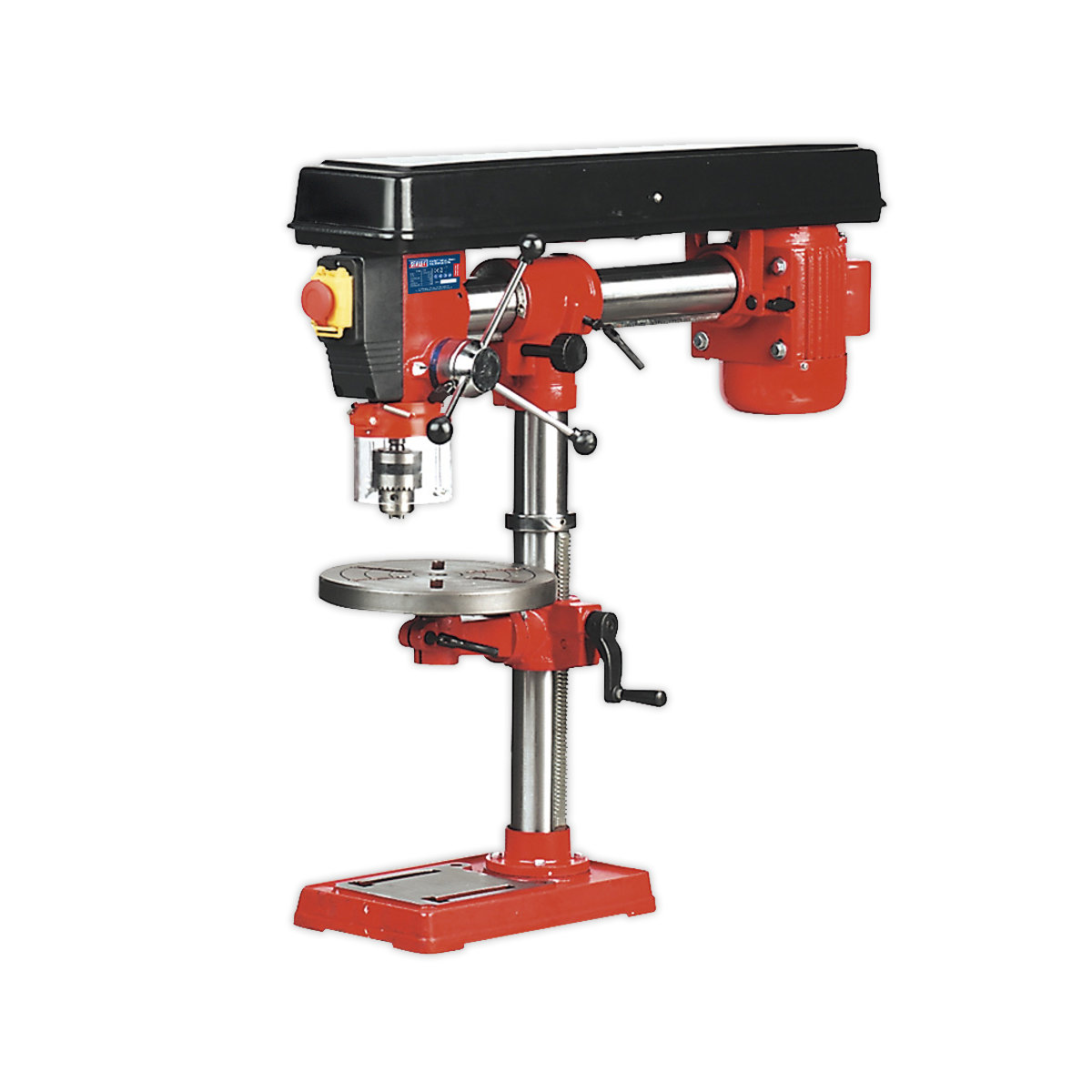

Achieving accurate off-table and angle drilling with a standard pillar drill is a constant frustration in busy workshops. The Sealey GDM790BR Radial Bench Pillar Drill solves this with a radial arm controlled by a rack and pinion assembly, allowing fine, precise positioning of the drill bit without moving the workpiece. The radial arm travels 285mm and delivers a maximum throat depth of 420mm, giving you exceptional reach for larger components. A 550W motor drives five selectable speeds from 500 to 2450rpm, matched to a 16mm capacity chuck with No. 2MT taper, covering a wide range of drilling tasks. The spindle travels 80mm and the maximum distance from spindle to base is 470mm, with a spindle-to-table distance of up to 300mm. Built to last with heavy-duty construction, the GDM790BR stands 820mm tall and weighs 43kg, providing the stability needed for demanding bench use. Safety is addressed with a no-volt release switch and a pulley cover cut-out microswitch fitted as standard. A keyless chuck upgrade is available via accessory GDMX/KC, and a mortise attachment can be ordered separately as model MA10. For larger workshops requiring a floor-standing solution, the GDM1630FR is also available.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM790BR |
|---|---|
| Base Size | 345 x 215mm |
| Brand | Sealey |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø60mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 470mm |
| Maximum Distance Spindle to Table | 300mm |
| Motor Power | 550W |
| Nett Weight | 43kg |
| Number of Speeds | 5 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 820mm |
| Radial Arm Travel | 285mm |
| Speed Range | 500-2450rpm |
| Spindle Centre to Column | 420mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 840mm |
| Working Base Surface Size | 160 x 180mm |
| Working Table Surface Size | Ø310mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM140F | GDM150B | GDM160F | DPG30 | DPG99 | 95043 | 02016 | 95314 | 02019 |
A. The radial arm on the GDM790BR travels 285mm and is controlled by a rack and pinion assembly for fine, accurate positioning of the drill bit.
A. The GDM790BR has a maximum throat depth (spindle centre to column) of 420mm, allowing drilling well beyond the table edge.
A. The GDM790BR offers five speeds with a range of 500 to 2450rpm, allowing you to match the speed to your material and drill bit size.
A. The GDM790BR is fitted with a 16mm (5/8") capacity chuck with a No. 2MT taper. A keyless upgrade chuck is available - order accessory code GDMX/KC.
A. The GDM790BR is fitted with a no-volt release switch and a pulley cover cut-out microswitch as standard safety devices.
A. Yes. The radial feature of the GDM790BR allows both off-table drilling and angle drilling, giving you greater flexibility for larger or awkwardly shaped workpieces.
A. Yes, a mortise attachment is available separately - order model MA10.
A. The GDM790BR is the bench-mounting version. A floor-standing variant is available in the same product family - GDM1630FR.
A. The GDM790BR stands 820mm tall with a base size of 345 x 215mm, a 60mm column diameter, 80mm spindle travel, and a weight of 43kg.
