Product Number: GDM150B
Variations

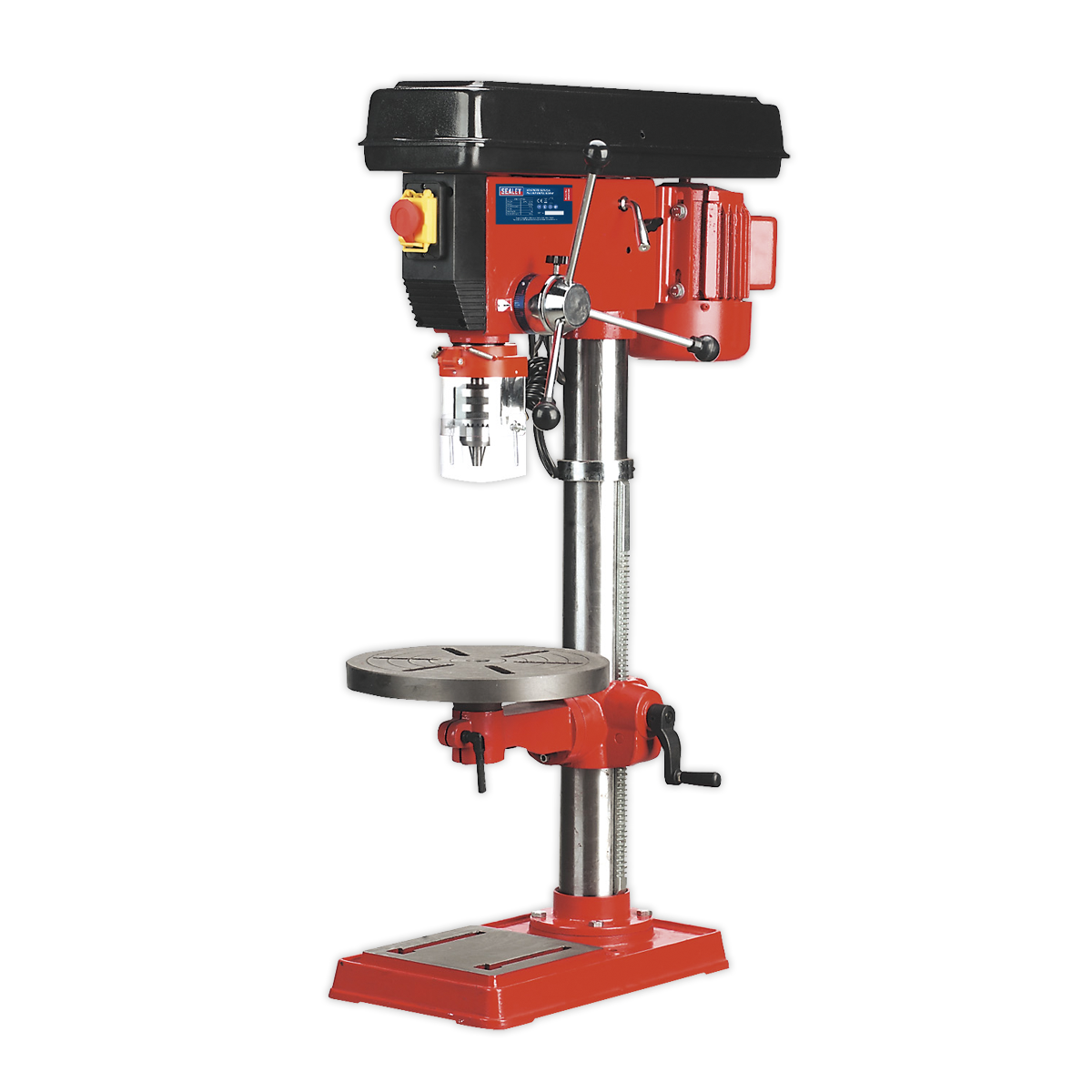

Finding a bench pillar drill that delivers consistent, repeatable accuracy across light industrial, agricultural and woodworking tasks is a genuine challenge particularly where safety compliance and versatility are both required. The Sealey GDM150B answers that need directly. This 16-speed bench pillar drill stands 1070mm tall and is powered by a 450W motor (650W input) running on 230V. It accepts drill bits up to 16mm via its No. 2 Morse taper spindle housing and 16mm capacity chuck, making it compatible with taper shank drill bits. Sixteen selectable speeds cover a range of 120-3000rpm, giving precise control across different materials and bit sizes. The rack and pinion feed shaft includes a preset depth control for repetitive drilling work, ensuring consistent hole depths throughout a production run. The spindle travel is 80mm, the spindle centre to column distance is 178mm, and the maximum spindle-to-base distance is 670mm. Column diameter is 80mm with an 80mm diameter collar, and the base measures 460 x 275mm. Drive belt access is mechanically denied during operation for operator safety. A no-voltage release switch is fitted as standard, enabling insurance company approval for use in educational establishments and meeting Safety of Machinery (Safety) Directives 1992 and amendments. The unit weighs 60kg. A mortise attachment is available separately under Model No. MA10, and a keyless chuck upgrade is available as GDMX/KC.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM150B |
|---|---|
| Base Size | 460 x 275mm |
| Brand | Sealey |
| Collar Diameter | 60mm |
| Column Diameter | 80mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 670mm |
| Maximum Distance Spindle to Table | 480mm |
| Motor Power (Start) | 450W(650W) |
| Nett Weight | 60kg |
| Number of Speeds | 16 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1070mm |
| Speed Range | 120-3000rpm |
| Spindle Centre to Column | 178mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 356mm |
| Working Base Surface Size | 200 x 220mm |
| Working Table Surface Size | Ø310mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 550W 1620mm
£488.13
£478.56
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM160F | GDM1630FR | GDM200F | DPG30 | DPG99 | 95043 | 02016 | 95314 | 02019 |
A. The GDM150B has a 16mm (5/8") capacity chuck with a No. 2 Morse taper spindle housing, which means it does accept taper shank drill bits.
A. The GDM150B has 16 speeds covering a range of 120 to 3000rpm, allowing you to match the speed to the material and drill bit size.
A. The motor output power is 450W with an input power of 650W, running on 230V.
A. Yes. The GDM150B is fitted with a no-voltage release switch, which allows for insurance company approval for use in educational establishments, and the machine meets Safety of Machinery (Safety) Directives 1992 and its amendments.
A. The overall height is 1070mm. The maximum spindle-to-base distance is 670mm, maximum spindle-to-table distance is 480mm, spindle centre to column is 178mm, spindle travel is 80mm, column diameter is 80mm, and the base measures 460 x 275mm.
A. Yes. The GDM150B is fitted with a rack and pinion feed shaft with preset depth control, specifically designed for repetitive drilling work to ensure consistent hole depths.
A. Yes. A mortise attachment is available separately - order Model No. MA10.
A. Yes. An optional keyless 16mm pillar drill chuck is available under part number GDMX/KC.
A. The GDM150B sits within a range of bench pillar drills. Variants in the same product family include the GDM120B and GDM180B, which differ in specification. Check individual product listings for their respective speeds, capacities and power ratings.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
