Product Number: PDM155B

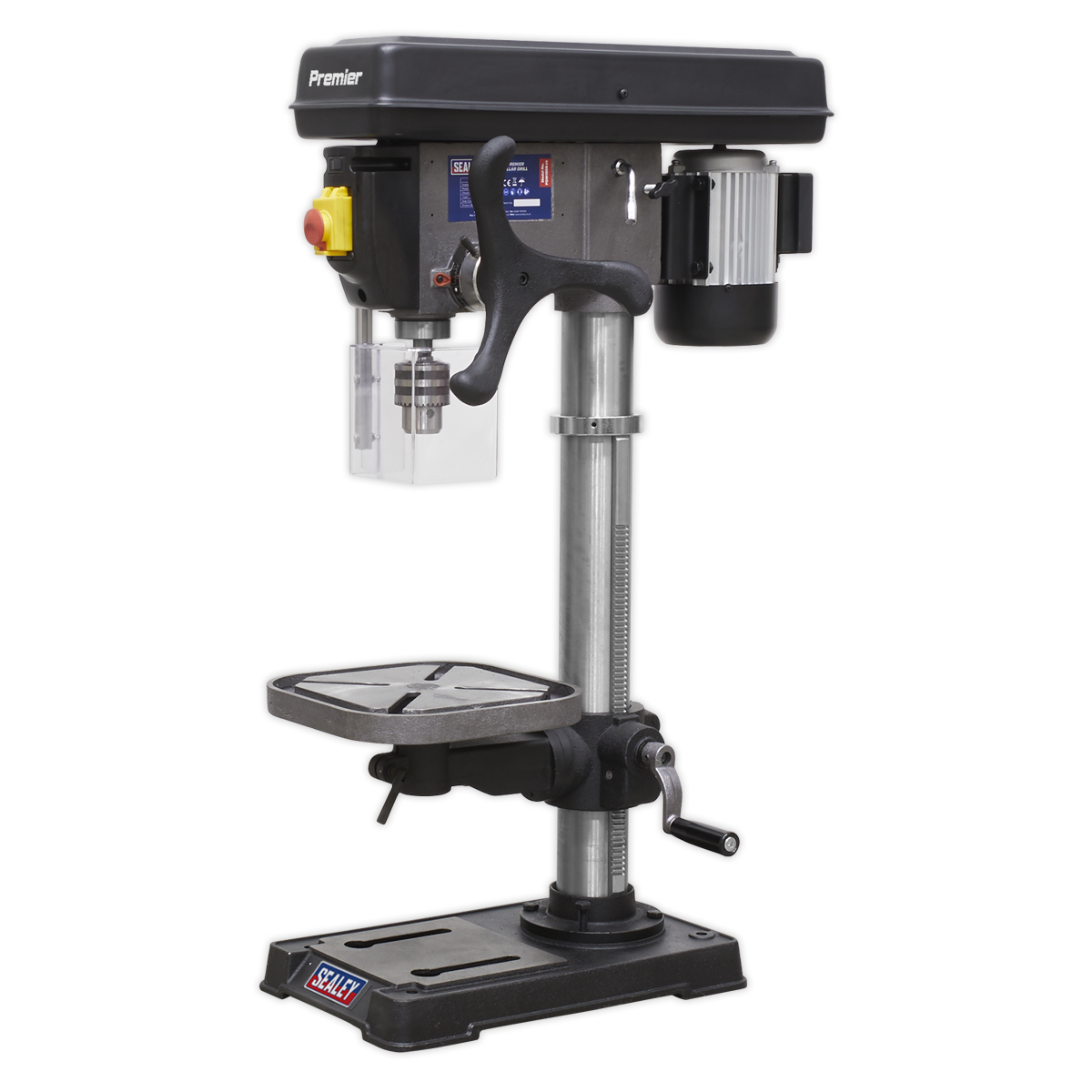

Inconsistent drilling speeds and poor visibility at the workpiece can compromise accuracy and safety in a professional workshop. The Sealey PDM155B bench-mounting pillar drill addresses both concerns with 16 selectable speeds ranging from 190 to 3000rpm, allowing you to match the speed precisely to your material and bit size. A 370W (600W start) heavy-duty aluminium-bodied motor delivers reliable, sustained performance. An integral work light illuminates the drilling table for a clear view of the drilling process (bulb not included), and an electrically interlocked chuck guard is supplied as standard. A no-volt release switch prevents inadvertent start-up, and a microswitch on the pulley cover prevents the drill from operating when the cover is open. The large square table features precision rack and pinion height adjustment. The 16mm (5/8") capacity chuck is MT2 rated, with a spindle travel of 80mm, spindle centre to column of 190mm, and a maximum spindle-to-table distance of 475mm. Overall height is 1050mm and the column diameter is 80mm. Supplied with a 3-year guarantee. An optional keyless chuck (PDM/KC) is available separately.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PDM155B |
|---|---|
| Base Size | 495 x 290mm |
| Brand | Premier |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø80mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Integral Work Light | Yes |
| Maximum Distance Spindle to Base | 660mm |
| Maximum Distance Spindle to Table | 475mm |
| Motor Power (Start) | 370W(600W) |
| Nett Weight | 55kg |
| Number of Speeds | 16 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1050mm |
| Speed Range | 190-3000rpm |
| Spindle Centre to Column | 190mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 380mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 290 x 290mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
PDM/CS | Sealey PDM/CS Coolant System for PDM210F, PDM240F & PDM260F | 1 Unit |
£48.97
£48.01
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PDM170F Floor Pillar Drill 16-Speed 1610mm 230V
£510.88
£500.86
2% OFF
Free delivery in UK Mainland
|
Sealey PDM210F Floor-Standing Pillar Drill 16-Speed 1610mm 370W 230V
£594.56
£582.90
2% OFF
Free delivery in UK Mainland
|
Sealey PDM240F Floor Pillar Drill 16-Speed 750W 230V
£712.70
£698.73
2% OFF
Free delivery in UK Mainland
|
Sealey SDM30 Pillar Drill 5-Speed Hobby Model 580mm Height 350W 230V
£144.21
£141.38
2% OFF
Free delivery in UK Mainland
|
Sealey PDM125B Pillar Drill Bench 16-Speed 1050mm 230V
£446.88
£438.12
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PDM170F | PDM210F | PDM240F | SDM30 | PDM125B | 6505592 | 7610850 | 7610860 | 95043 |
| Base Size | 450 x 270mm | 495 x 290mm | 495 x 290mm | 200 x 310mm | 450 x 270mm | 580 x 450mm | |||
| Collar Diameter | Ø55mm | Ø60mm | Ø75mm | Ø40mm | Ø55mm | 92mm | |||
| Length (mm) | 1610 | 1610 | 290 | 580 | 1050 | 450 | |||
| Spindle Travel | 80mm | 80mm | 80mm | 50mm | 80mm | 120mm | |||
| Weight (kg) | 47 | 62 | 76 | 11 | 45 | 148 | |||
A. The PDM155B is fitted with a 370W motor (600W start power).
A. The PDM155B offers 16 speeds with a range of 190 to 3000rpm.
A. The PDM155B is fitted with a 16mm (5/8") capacity chuck with an MT2 taper.
A. Yes, the PDM155B has an integral work light to illuminate the drilling table. Please note that the bulb is not included.
A. The PDM155B includes a no-volt release switch to prevent inadvertent start-up, a microswitch on the pulley cover that prevents operation when the cover is open, and an electrically interlocked chuck guard supplied as standard.
A. Overall height is 1050mm, column diameter is 80mm, base size is 495 x 290mm, spindle travel is 80mm, spindle centre to column is 190mm, maximum spindle to table distance is 475mm, and maximum spindle to base distance is 660mm.
A. Yes, the PDM/KC keyless pillar drill chuck (16mm) is listed as an optional accessory for the PDM155B.
A. The PDM155B comes with a 3-year guarantee.
A. Yes, alternative pillar drills available include the PDM125B, PDM170F, PDM210F, and PDM240F, each offering different capacities or configurations to suit different workshop requirements.
