Product Number: 02017

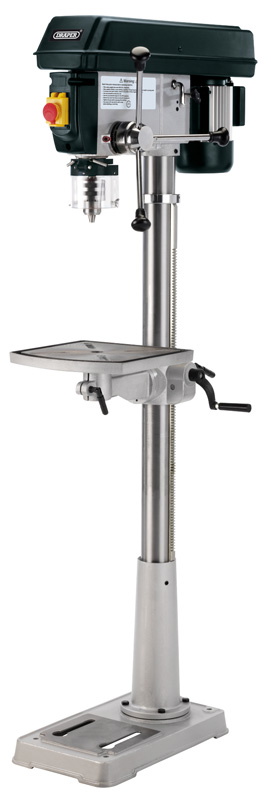

Workshop drilling tasks demand a machine that combines rigidity, precision and versatile speed selection. The Draper 2017 is a 600W, 12-speed floor standing pillar drill with a 20mm drilling capacity, designed specifically for automotive and maintenance workshops where consistent, repeatable results are required across a range of materials and bore sizes. The square table measures 305 x 305mm and is fitted with a smoothly operated rack and pinion mechanism, allowing easy height adjustment without effort or backlash. A depth stop enables repeated drilling to an exact depth, while a chuck guard provides operator protection during use. A No-Volt safety release switch ensures the drill cannot restart unexpectedly after a power interruption, an important safety feature in a professional workshop environment. The drill offers 12 selectable speeds ranging from 180 to 2,740 rpm, accommodating a broad spectrum of materials and drill bit types. The chuck accepts bits from 3 to 16mm, with an MT2 spindle taper and 80mm spindle travel. The column diameter is 73mm and the collar diameter 60mm, with a throat depth of 185mm. Overall height is 1,635mm and the unit weighs 64kg. The base measures 485 x 290mm. The motor casing is manufactured from steel and the pulley cover is lockable. The drill is supplied with a BS approved non-rewireable moulded plug and an approximately 1.8m cable, ready for immediate use on a standard 230V supply.
12 speed floor standing drill with a 20mm drilling capacity. Ideal for automotive and maintenance workshops. The square table is fitted with a smoothly operated rack and pinion mechanism for easy adjustment. Fitted with a No-Volt safety release switch, depth stop and chuck guard. Manufactured with a steel motor casing and lockable pulley cover. Supplied with a BS approved non-rewireable moulded plug and 1.8m (approx.) cable.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Size | 485 x 290mm |
|---|---|
| Base Dimensions | 485 x 280mm |
| Chuck Capacity | 3-16mm |
| Collar Diameter | 60mm |
| Column Diameter | 73mm |
| Drilling Capacity | 20mm |
| Height | 1635mm |
| Speed | 12 (180-2740r/min) |
| Spindle Taper | MT2 |
| Spindle Travel | 80mm |
| Table Size | 305 x 305mm |
| Throat Depth | 185mm |
| Weight | 64kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
23714 | Draper 23714 COLUMN SHOULDER | 1 Unit |
£48.38
£47.43
|
Add |
|
|
23715 | Draper 23715 RACK | 1 Unit |
£51.04
£50.04
|
Add |
|
|
23730 | Draper 23730 COLUMN | 1 Unit |
£135.66
£133.00
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
SIP 01720 Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
£5,151.59
Free delivery in Channel Island
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02019 | 95092 | GDM200F/VS | DPG30 | DPG99 | 01720 |
A. The Draper 2017 has a maximum drilling capacity of 20mm, with a chuck accepting drill bits from 3 to 16mm in diameter.
A. The drill provides 12 selectable speeds, ranging from 180 to 2,740 rpm, allowing adaptation to a variety of materials and drill bit types.
A. Yes. The Draper 2017 is specifically described as ideal for automotive and maintenance workshops, combining a 20mm drilling capacity with a rigid floor standing construction and a broad speed range.
A. The drill is fitted with a No-Volt safety release switch, which prevents unexpected restart after a power interruption, along with a chuck guard and a lockable pulley cover.
A. The overall height is 1,635mm and the unit weighs 64kg. The square table measures 305 x 305mm, the base measures 485 x 290mm, the throat depth is 185mm, and the spindle travel is 80mm.
A. The drill operates on a 230V supply and is supplied complete with a BS approved non-rewireable moulded plug and an approximately 1.8m cable.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
