Product Number: 95092

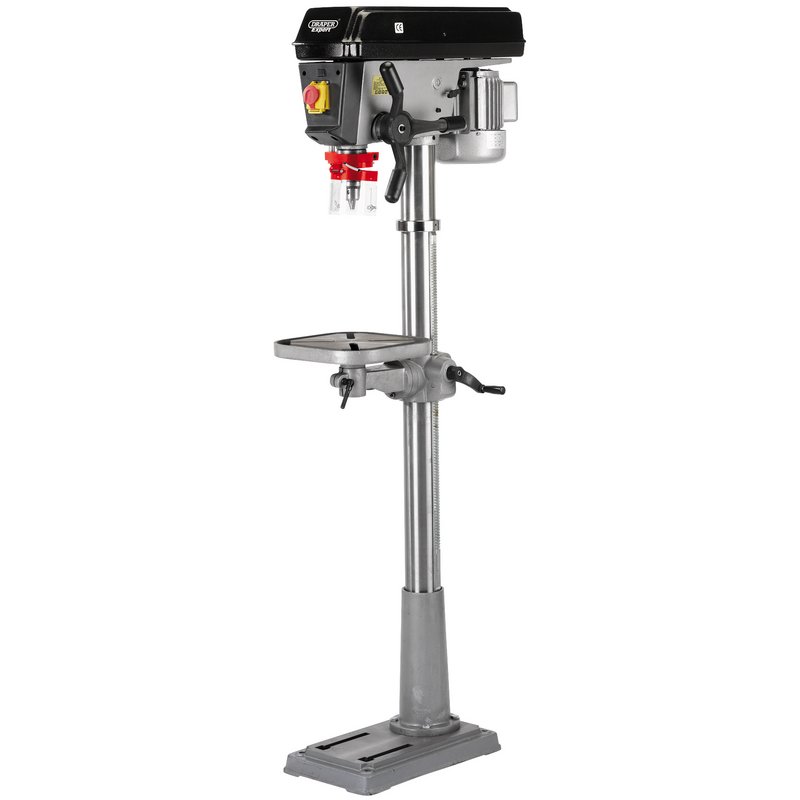

Heavy-duty floor standing pillar drills present a challenge in engineering and fabrication environments where consistent drilling accuracy, repeatable depth control, and machine stability are essential. The Draper Expert 95092 addresses these demands with a 19mm drilling capacity and 16 selectable speeds ranging from 120 to 3000 r/min, enabling operators to match spindle speed precisely to the material and bit being used. The square table is fitted with a heavy-duty, smoothly operated rack and pinion mechanism, allowing straightforward height adjustment without disrupting workpiece positioning. A depth stop and chuck guard are both included, supporting accurate, repeatable drilling operations. The No-Volt safety release switch provides an important layer of protection against unintended restart following a power interruption — a critical feature in production workshop environments. The motor casing is manufactured from aluminium, and the pulley cover is lockable. The chuck accepts bits from 3mm up to 16mm, mounted on an MT2 spindle taper with 80mm of spindle travel. The throat depth of 178mm accommodates a wide range of workpieces. The table measures 290 x 290mm, the base 460 x 275mm, and the overall height of the machine is 1650mm. The unit weighs 78kg, reflecting the robust construction expected of a floor-standing machine.Supplied with a BS approved non-rewireable moulded plug and approximately 1.8 metres of cable, the 95092 is ready for immediate workshop installation on a standard 230V supply.
Heavy duty 16 speed floor standing drill with a 19mm drilling capacity. Designed for engineering and fabrication workshops. The square table is fitted with a heavy duty smoothly operated rack and pinion for easy adjustment. Fitted with a No-Volt safety release switch, depth stop and chuck guard. Manufactured with an aluminium motor casing and lockable pulley cover. Supplied with a BS approved non-rewireable moulded plug and 1.8m (approx.) cable.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Size | 460 x 275mm |
|---|---|
| Chuck Capacity | 3-16mm |
| Collar Diameter | 60mm |
| Column Diameter | 80mm |
| Drilling Capacity | 19mm |
| Height | 1650mm |
| Speed | 16 (120-3000r/min) |
| Spindle Taper | MT2 |
| Spindle Travel | 80mm |
| Table Size | 290 x 290mm |
| Throat Depth | 178mm |
| Weight | 78kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
95092ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
SIP 01720 Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
£5,151.59
Free delivery in Channel Island
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 95314 | 02019 | GDM200F/VS | DPG30 | DPG99 | 01720 |
A. The Draper Expert 95092 has a maximum drilling capacity of 19mm, with a chuck capacity ranging from 3mm to 16mm.
A. The machine provides 16 selectable speeds covering a range of 120 to 3000 r/min, allowing the operator to match spindle speed to the material and cutting tool in use.
A. The drill is fitted with a No-Volt safety release switch, which prevents unintended restart following a power interruption, along with a chuck guard and a lockable pulley cover.
A. The spindle uses an MT2 taper and provides 80mm of spindle travel. A depth stop is also included for repeatable drilling depth control.
A. The table measures 290 x 290mm, the base measures 460 x 275mm, the throat depth is 178mm, and the overall height is 1650mm. The machine weighs 78kg.
A. The drill is supplied with a BS approved non-rewireable moulded plug and approximately 1.8 metres of cable. It operates on a standard 230V supply.
