Product Number: OSMHD600-B
Variations

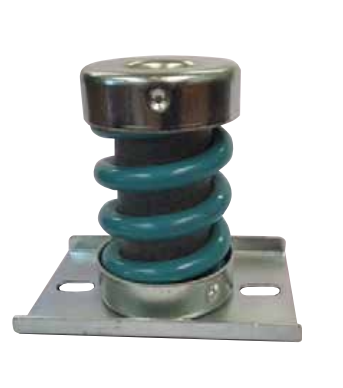

Rated at a maximum load of 600 kg with a deflection of 25 mm, the OSMHD600-B is the largest and highest-capacity mount in the open spring mounting range, engineered to absorb substantial dynamic forces in heavy-load and shock-duty installations where low-frequency isolation is non-negotiable. Rubber-to-metal bonded construction ensures a durable, integrated assembly suited to demanding continuous or intermittent loading in shear, compression, or a combination of both. The Type B open geometry of this mount accepts M12 fixings (dimension C) and presents key envelope dimensions of 69 mm (A), 113 mm (B), 86 mm (D), and 128 mm (E), with a flange centre figure of 96 mm (CF) and a slot dimension of 11×20 mm (F). These figures define its positioning as the largest member of the family, making it the correct selection where substantial structural separation between machine and base is required alongside maximised load tolerance. Applications are drawn from industries operating heavy plant and machinery under arduous conditions: construction and off-highway equipment, power generation sets, marine engine and generator mounts, railway and mass transit installations, agricultural machinery, and military and defence platforms. The mount improves machinery service life, protects surrounding structures from transmitted vibration, and enhances operator comfort by limiting the propagation of low-frequency excitation through supporting frames and foundations. The open spring mounting family is available in a range of sizes and load ratings. Related variants include OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | B |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 113 |
| Height / dimension C (mm) | M12 |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 600 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSMHD100-C | OSMHD125-C | OSMHD150-C | OSMHD200-C | OSMHD250-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The OSMHD600-B is rated to a maximum load of 600 kg, with a deflection of 25 mm under that load.
A. Key dimensions are: A = 69 mm, B = 113 mm, C = M12 (fixing thread), CF = 96 mm (flange centre), D = 86 mm, E = 128 mm, and F = 11×20 mm (slot). It is a Type B open spring mount.
A. The mount may be loaded in shear, compression, or a combination of both, depending on the installation requirements.
A. It is suited to heavy-plant applications including construction and off-highway equipment, power generation, marine engine and generator installations, railway and mass transit, agricultural machinery, and military and defence platforms — anywhere high load capacity and low-frequency isolation are required.
A. The mount uses rubber-to-metal bonded construction, integrating the rubber element and metal components into a single durable assembly.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C, covering a range of load ratings and envelope dimensions.
