Product Number: OSMHD250-B
Variations

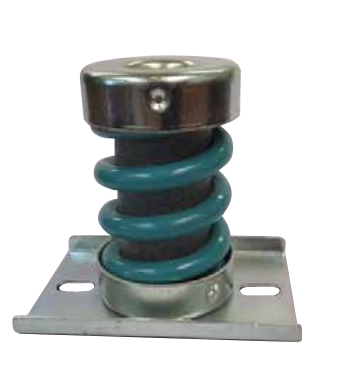

Carrying a maximum load of 250 kg with a deflection of 25 mm, the OSMHD250-B is an open spring mounting designed to meet the demands of heavy-duty and shock-loaded machinery installations. Its rubber-to-metal bonded construction and open spring configuration deliver the high deflection and low natural frequency isolation that arduous industrial environments require, extending machinery lifespan while protecting surrounding structures and improving operator comfort. At Type B geometry with a 69 mm 'A' dimension, a 113 mm 'B' dimension, and M12 thread (C), the mount provides a CF figure of 96, 'D' of 86 mm, 'E' of 128 mm, and a slot dimension of 11×20 mm at 'F'. These proportions place the OSMHD250-B firmly in the upper band of the open spring mounting range, where the combination of high load capacity and controlled 25 mm deflection suits applications demanding both restraint and genuine vibration attenuation. The OSMHD250-B is suited to power generation plant, marine machinery, agricultural equipment, railway and mass transit installations, construction and off-highway machinery, automotive systems, and military and defence applications where high load and shock duty are the governing criteria. Mounts may be loaded in shear, compression, or a combination of both. Stainless steel metal parts and oil-resistant or high-temperature rubber compounds are available as custom options on request. This mount is part of a wider range of open and enclosed spring mountings. For lighter load capacities or alternative configurations, related variants include OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | B |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 113 |
| Height / dimension C (mm) | M12 |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 250 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSMHD100-C | OSMHD125-C | OSMHD150-C | OSMHD200-C | OSMHD250-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The OSMHD250-B is rated to a maximum load of 250 kg with a deflection of 25 mm, placing it in the upper band of the open spring mounting range and making it suitable for heavy and shock-loaded applications.
A. The mount is Type B with an 'A' dimension of 69 mm, 'B' of 113 mm, M12 thread (C), CF of 96, 'D' of 86 mm, 'E' of 128 mm, and an 'F' slot of 11×20 mm.
A. The mount is suited to power generation, marine machinery, agricultural equipment, railway and mass transit, construction and off-highway plant, automotive systems, and military and defence applications — wherever high load capacity and shock-duty isolation are required.
A. Yes. The mount may be loaded in shear, compression, or a combination of both, providing installation flexibility across a range of machine configurations.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. Related variants include OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C, covering a range of load capacities and configurations.
