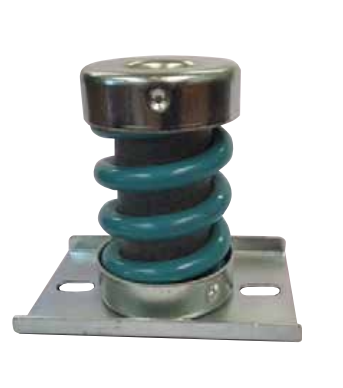

Product Number: OSMHD200-B
Variations
With a rated maximum load of 200 kg with a deflection of 25 mm, the OSMHD200-B is an upper-range open spring mounting engineered for applications where substantial dynamic forces must be controlled without compromising structural integrity. Its rubber-to-metal bonded construction and Type B geometry make it well suited to heavier plant, high-load installations, and environments where shock attenuation is a priority alongside low-frequency vibration isolation. The open spring mounting format delivers high deflection and a low natural frequency, characteristics that are particularly valuable where significant machine-induced vibration must be prevented from reaching supporting structures or adjacent equipment. Rubber-to-metal bonded construction provides a secure and durable union between the isolating element and the hardware, and the mounting may be loaded in compression, shear, or a combination of both to suit installation geometry. Key dimensional references for this type are: A 69 mm, B 113 mm, thread C M12, CF 96 mm, D 86 mm, E 128 mm, and slot F 11×20 mm. The OSMHD200-B is suited to demanding service across construction and off-highway machinery, power generation equipment, marine installations, agricultural plant, railway and mass transit applications, and military and defence equipment. By absorbing shock and attenuating vibration at source, the mount works to extend machinery service life, protect surrounding structures from transmitted forces, and improve operator comfort in manned installations. This mounting is available in a range of sizes and load ratings to suit varied isolation requirements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | B |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 113 |
| Height / dimension C (mm) | M12 |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 200 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSMHD100-C | OSMHD125-C | OSMHD150-C | OSMHD200-C | OSMHD250-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The OSMHD200-B is rated to a maximum load of 200 kg and a deflection of 25 mm.
A. The principal dimensions are: A 69 mm, B 113 mm, thread C M12, CF 96 mm, D 86 mm, E 128 mm, and slot F 11×20 mm.
A. The mounting may be loaded in compression, shear, or a combination of both to suit the requirements of a given installation.
A. It is suited to construction and off-highway machinery, power generation equipment, marine installations, agricultural plant, railway and mass transit systems, automotive applications, and military and defence equipment.
A. By attenuating vibration and absorbing shock at source, the mount works to improve machinery service life, protect surrounding structures from transmitted forces, and improve operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. The range includes OSM15-A, OSM15-B, OSM15-C, OSM100-A, OSM100-B, OSM100-C, OSM125-B, and OSM125-C, covering a variety of load ratings and sizes.
