Product Number: OSMHD125-B
Variations

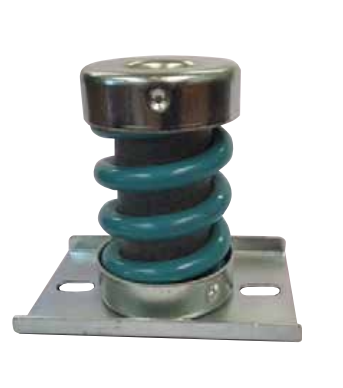

With a rated maximum load of 125 kg with a deflection figure of 25 mm, the Type B open spring mount OSMHD125-B sits at the mid-range of the open spring mounting programme, the right choice for mainstream general-machinery installations where moderate load capacity and reliable low-frequency isolation are both required. At 69 mm across dimension A with an overall height of 128 mm (dimension E) and an M12 thread (dimension C), the mount slots cleanly into plant and equipment designed around standard fixing centres. Rubber-to-metal bonded construction underpins the mount's durability across demanding service environments. The open spring design is engineered for conditions where high deflection and a low natural frequency are needed, accepting load in compression, shear, or any combination of the two. Maximum working deflection is 25 mm, supporting effective isolation across the broad range of low-frequency disturbance sources found in mainstream industrial settings. The mounting suits a wide spread of industries and applications: power generation sets, marine auxiliary machinery, agricultural equipment, and automotive and construction plant all represent typical deployment areas. Where standard materials are insufficient, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, alongside additional and custom sizes, making the OSMHD125-B adaptable to more demanding or specialist operating conditions. Regular use reduces transmitted vibration, improves machinery service life, and protects surrounding structures and operators. This mount is part of a wider open and enclosed spring mounting family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | B |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 113 |
| Height / dimension C (mm) | M12 |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 125 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSMHD100-C | OSMHD125-C | OSMHD150-C | OSMHD200-C | OSMHD250-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The OSMHD125-B is rated to a maximum load of 125 kg with a working deflection of 25 mm.
A. Dimension A is 69 mm, dimension B is 113 mm, dimension C (thread) is M12, CF is 96 mm, dimension D is 86 mm, dimension E (overall height) is 128 mm, and dimension F is 11 x 20 mm. The mount type is B.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility across a range of installation orientations.
A. Typical applications include power generation equipment, marine auxiliary machinery, agricultural plant, automotive machinery, and construction and off-highway equipment, as well as railway, mass transit, and military and defence installations.
A. Yes. Stainless steel metalwork, oil-resistant rubber, and high-temperature rubber compounds are available on request, along with additional and custom sizes beyond the standard range.
A. Fitting the mount improves machinery service life, reduces vibration transmitted to surrounding structures, and improves operator comfort by providing effective low-frequency isolation.
A. Related variants include the OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C, covering a range of load capacities and fixing configurations.
