Product Number: OSMHD125-C
Variations

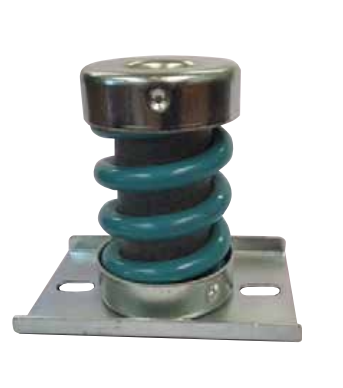

Designed for mainstream general-machinery applications where moderate loads demand reliable low-frequency vibration isolation, this Type C open spring mounting, oSMHD125-C. Carries a maximum load of 125 kg with a deflection of 25 mm, making it a capable mid-range choice for plant and equipment operating under normal working conditions. Rubber-to-metal bonded construction gives the mount its structural integrity, whilst the open spring configuration is suited to installations requiring high deflection and a low natural frequency. The Type C geometry is loaded in shear, compression or a combination of both, giving installation flexibility across a broad range of machinery bases and mounting frames. Key dimensions are: A 69 mm, B 115 mm, CF 96 mm, D 86 mm, E 128 mm, slot F 11×20 mm. By managing the transmission of low-frequency vibration into surrounding structures, this mounting contributes to improved machinery lifespan, protects adjacent equipment and structures, and supports operator comfort over extended running periods. It is suited to industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. This mount is part of a wider open spring mounting range. Related variants include the OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B and OSM15-C, which offer alternative load capacities and deflection characteristics to suit differing installation requirements. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. Please contact us to discuss bespoke requirements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | C |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 115 |
| Height / dimension C (mm) | - |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 125 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HRS9696 | HRS90125 | HRS540/1 | HRS535 | HRS530 | HRS505H | OSMHD100-B | OSMHD125-B | OSMHD150-B | OSMHD200-B | OSMHD250-B |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 63.00mm | 63mm | 63mm | 63mm | 63mm | 63.00mm | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 | ||||||
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | ||||||
| Thread | M12 | M12 | M12 | M12 | M12 | ||||||
A. The OSMHD125-C is rated to a maximum load of 125 kg and provides a deflection of 25 mm under normal working conditions.
A. The principal dimensions are: A 69 mm, B 115 mm, CF 96 mm, D 86 mm, E 128 mm, and slot F 11×20 mm. It is a Type C configuration.
A. The mounting is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence sectors.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility in how it is installed and oriented within a machinery base or frame.
A. Open spring mountings are selected where high deflection and a low natural frequency are required, making them suitable for isolating low-frequency vibration sources under normal working conditions.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Yes — related variants include the OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B and OSM15-C, covering a range of load capacities and deflection characteristics.
