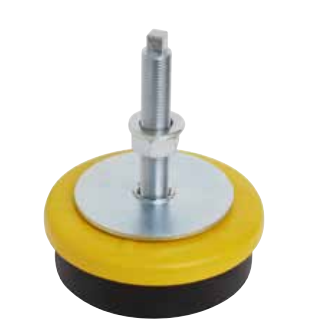

A levelling foot does two jobs in one fitting: it takes the wobble out of a machine that stands on a floor that is never quite flat, and it isolates the vibration the machine makes once it runs. The 31 feet here are picked the estate's way, by thread and stated load, and the range steps cleanly: M8 at 80 kilograms, M10 at 120, M12 at 160 and 350, M14 at 600, M16 from 900 through 1200 to 1750, and M24 at 2500 and 3750 kilograms per foot.
The thread is the levelling mechanism itself: the stud winds through the machine's foot mounting, so turning the foot raises or lowers that corner, and the machine is walked level foot by foot before the locknuts close the adjustment. The load arithmetic is the estate's, the machine's weight shared across its feet with margin, each foot matched to its share.

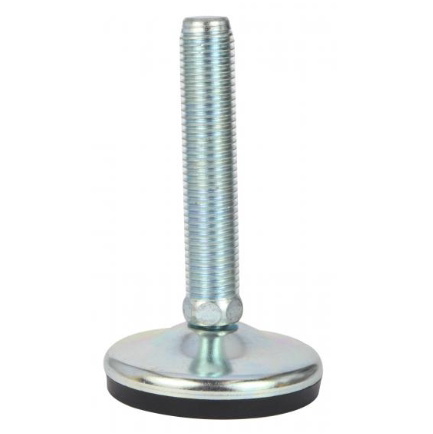

Plain levelling feet in 38.5 and 42.5 millimetre M16 forms sit beside the anti-vibration family for the machines that need height and level without isolation, and the thread plus load typed into search bring the shelf to a pick. A photo of the machine's foot mounting with its weight over WhatsApp on 07754288583 comes back with the foot named and the level-first, lock-second practice confirmed.
| Base Width (A) | 40mm |
|---|---|
| Rubber Body Height (B) | 23mm |
| Thread Size (C) | M8 |
| Overall Height (D) | 48mm |
| Minimum Load (Kg) | 20 |
| Base Width (A) | 60mm |
|---|---|
| Rubber Body Height (B) | 28mm |
| Thread Size (C) | M10 |
| Overall Height (D) | 81mm |
| Minimum Load (Kg) | 60 |
| Base Width (A) | 70mm |
|---|---|
| Rubber Body Height (B) | 32mm |
| Thread Size (C) | M12 |
| Overall Height (D) | 89mm |
| Minimum Load (Kg) | 90 |
| Base Width (A) | 85mm |
|---|---|
| Rubber Body Height (B) | 32mm |
| Thread Size (C) | M12 |
| Overall Height (D) | 89mm |
| Minimum Load (Kg) | 130 |
| Base Width (A) | 100mm |
|---|---|
| Rubber Body Height (B) | 40mm |
| Thread Size (C) | M14 |
| Overall Height (D) | 109mm |
| Minimum Load (Kg) | 270 |
| Base Width (A) | 120mm |
|---|---|
| Rubber Body Height (B) | 50mm |
| Thread Size (C) | M16 |
| Overall Height (D) | 116mm |
| Minimum Load (Kg) | 450 |
| Base Width (A) | 140mm |
|---|---|
| Rubber Body Height (B) | 55mm |
| Thread Size (C) | M16 |
| Overall Height (D) | 116mm |
| Minimum Load (Kg) | 700 |
| Base Width (A) | 160mm |
|---|---|
| Rubber Body Height (B) | 60mm |
| Thread Size (C) | M16 |
| Overall Height (D) | 116mm |
| Minimum Load (Kg) | 1100 |
| Base Width (A) | 180mm |
|---|---|
| Rubber Body Height (B) | 70mm |
| Thread Size (C) | M24 |
| Overall Height (D) | 138mm |
| Minimum Load (Kg) | 1500 |
| Base Width (A) | 210mm |
|---|---|
| Rubber Body Height (B) | 75mm |
| Thread Size (C) | M24 |
| Overall Height (D) | 138mm |
| Minimum Load (Kg) | 2100 |
| Outer diameter D (mm) | 80 |
|---|---|
| Overall height H (mm) | 32 |
| Fixing hole spacing G (mm) | M10/M12/M16 |
| Max load, 2nd direction (kg) | 300 |
| Outer diameter D (mm) | 150 |
|---|---|
| Overall height H (mm) | 40 |
| Fixing hole spacing G (mm) | M16 |
| Max load, 2nd direction (kg) | 1000 |
| Outer diameter D (mm) | 120 |
|---|---|
| Overall height H (mm) | 35 |
| Fixing hole spacing G (mm) | M12/M16 |
| Max load, 2nd direction (kg) | 800 |
| Outer diameter D (mm) | 200 |
|---|---|
| Overall height H (mm) | 45 |
| Fixing hole spacing G (mm) | M20 |
| Max load, 2nd direction (kg) | 3000 |
| Outer diameter D (mm) | 90 |
|---|---|
| Overall height H (mm) | 35 |
| Fixing hole spacing G (mm) | M12 |
| Max load, 2nd direction (kg) | 400 |
| Overall length / diameter A (mm) | 38.5 |
|---|---|
| Outer diameter D (mm) | 100 |
| Fixing hole spacing G (mm) | 30 |
| Adjustable width B* (mm) | min 75-250 max |
| Adjustable dimension F* (mm) | min M16-M30 max |
| Outer diameter D (mm) | 160 |
|---|---|
| Overall height H (mm) | 40 |
| Fixing hole spacing G (mm) | M16/M20 |
| Max load, 2nd direction (kg) | 1500 |
| Overall length / diameter A (mm) | 42.5 |
|---|---|
| Outer diameter D (mm) | 120 |
| Fixing hole spacing G (mm) | 32 |
| Adjustable width B* (mm) | min 75-250 max |
| Adjustable dimension F* (mm) | min M16-M30 max |
| Overall length / diameter A (mm) | 29 |
|---|---|
| Outer diameter D (mm) | 50 |
| Fixing hole spacing G (mm) | 19 |
| Adjustable width B* (mm) | min 50-150 max |
| Adjustable dimension F* (mm) | min M10-M16 max |
| Outer diameter D (mm) | 80 |
|---|---|
| Overall height H (mm) | 38-48 |
| Fixing hole spacing G (mm) | M12 |
| Length L (mm) | 65-75 |
| Max load (kg) | 500 |
| Overall length / diameter A (mm) | 35 |
|---|---|
| Outer diameter D (mm) | 80 |
| Fixing hole spacing G (mm) | 25 |
| Adjustable width B* (mm) | min 50-200 max |
| Adjustable dimension F* (mm) | min M10-M24 max |
| Outer diameter D (mm) | 80 |
|---|---|
| Overall height H (mm) | 38-48 |
| Fixing hole spacing G (mm) | M12 |
| Length L (mm) | 65-75 |
| Max load (kg) | 1000 |
| Outer diameter D (mm) | 80 |
|---|---|
| Overall height H (mm) | 38-48 |
| Fixing hole spacing G (mm) | M12 |
| Length L (mm) | 65-75 |
| Max load (kg) | 2000 |
