Product Number: OSMHD250-C
Variations

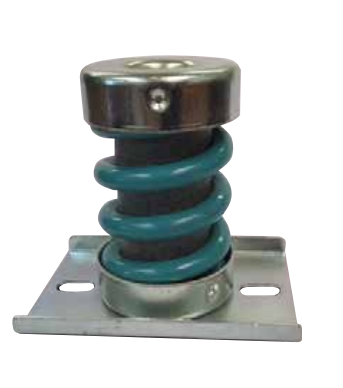

With a rated maximum load of 250 kg with 25 mm deflection, the OSMHD250-C is an upper-range open spring mounting engineered for demanding heavy-duty and high-shock applications where conventional mounts would be overloaded. Its Type C geometry, dimensioned at 69 mm (A), 115 mm (B), 96 mm (CF), 86 mm (D), 128 mm (E) and an 11×20 mm fixing slot (F). Provides the structural envelope needed to absorb severe dynamic forces across plant and machinery operating under sustained high loading. Rubber-to-metal bonded construction forms the basis of this mounting's durability. The open spring design is suited to installations where high deflection and a low natural frequency are required, making it appropriate for isolating low-frequency vibration sources that would otherwise transmit into surrounding structures or machine frames. The rubber element may be loaded in shear, compression, or a combination of both, giving specifiers flexibility in how the mount is orientated within a given installation. Applications drawing on this mount's high-load capacity include power generation sets, heavy agricultural machinery, marine auxiliary drives, and large off-highway or construction plant where both steady compression loads and intermittent shock loading must be managed simultaneously. By reducing vibration transmission, the mount contributes to extended machinery lifespan, protects adjacent structures, and improves operator comfort. Mounts in this family are suited to normal working conditions with deflection up to approximately 20 mm under rated load. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for demanding environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | C |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 115 |
| Height / dimension C (mm) | - |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 250 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HRS9696 | HRS90125 | HRS540/1 | HRS535 | HRS530 | HRS505H | OSMHD100-B | OSMHD125-B | OSMHD150-B | OSMHD200-B | OSMHD250-B |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 63.00mm | 63mm | 63mm | 63mm | 63mm | 63.00mm | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 | ||||||
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | ||||||
| Thread | M12 | M12 | M12 | M12 | M12 | ||||||
A. The OSMHD250-C is rated to a maximum load of 250 kg with a deflection of 25 mm, placing it at the upper end of this open spring mounting range.
A. The principal dimensions are: A = 69 mm, B = 115 mm, CF = 96 mm, D = 86 mm, E = 128 mm, and the fixing slot F = 11×20 mm. The Type C designation reflects the geometric configuration of the mount.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility in how it is orientated within a given installation.
A. This upper-range mount is suited to heavy agricultural machinery, power generation sets, marine auxiliary drives, and large construction or off-highway plant — applications involving sustained high loading or intermittent shock loading that require high deflection and a low natural frequency.
A. The mount is designed for normal working conditions, deflecting up to approximately 20 mm under rated load. It features rubber-to-metal bonded construction to withstand sustained operational demands.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Lighter and intermediate variants include OSM15-A, OSM15-B, OSM15-C, OSM100-A, OSM100-B, OSM100-C, OSM125-B, and OSM125-C. Select the variant whose maximum load and deflection figures match your installation requirements.
