Product Number: OSMHD100-C
Variations

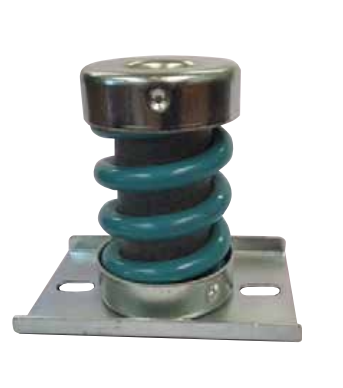

Handling mainstream general-machinery mounting duties at moderate loads, the OSMHD100-C is a Type C open spring mount with a 69 mm (A) body dimension, rated to a maximum load of 100 kg with 25 mm of deflection, a specification suited to plant and equipment where controlled low-frequency isolation is the priority without the structural weight of heavier-duty solutions. Rubber-to-metal bonded construction gives this mount its durability in normal working conditions, and the open spring format delivers the high deflection and low natural frequency characteristics that enclosed designs cannot always match. The mount accepts loading in shear, compression, or a combination of both, broadening the range of installation orientations available to the engineer. Key dimensional references from source are: A 69 mm, B 115 mm, CF 96 mm, D 86 mm, E 128 mm, F 11×20 mm. At the 100 kg load rating, the OSMHD100-C sits in the mid-range of the open spring mounting family and is well matched to power generation sets, agricultural machinery, and marine auxiliary equipment where moderate dynamic loads must be isolated from surrounding structures or the operator station. The mount protects adjoining structures, extends machinery service life, and contributes measurably to operator comfort over sustained running periods. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for demanding environments. This product is available in multiple configurations and sizes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | C |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 115 |
| Height / dimension C (mm) | - |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 100 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSMHD100-B | OSMHD125-B | OSMHD150-B | OSMHD200-B | OSMHD250-B |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M12 | M12 | M12 | M12 | M12 |
A. The OSMHD100-C is rated to a maximum load of 100 kg with 25 mm of deflection under normal working conditions.
A. The principal dimensions are: A 69 mm, B 115 mm, CF 96 mm, D 86 mm, E 128 mm, and F 11×20 mm. It is a Type C configuration.
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility in installation orientation.
A. The mount is suited to power generation, agricultural machinery, marine auxiliary equipment, construction and off-highway plant, railway and mass transit, automotive, and military and defence applications where low-frequency isolation at moderate loads is required.
A. Open spring mounts deliver high deflection and low natural frequency isolation, protecting surrounding structures from transmitted vibration, extending machinery service life, and improving operator comfort during sustained operation.
A. Yes — stainless steel metalwork, oil-resistant rubber, and high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Companion variants include the OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C, covering a range of load ratings and deflection characteristics.
