Product Number: OSMHD600-C
Variations

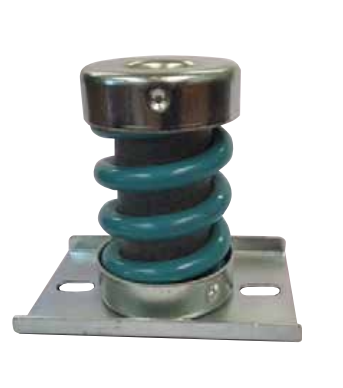

Positioned at the top of the open spring mounting range, the OSMHD600-C is a Type C open spring mount engineered to handle a maximum load of 600 kg with a deflection of 25 mm, making it the go-to choice where heavy machinery, high shock loads, or substantial dynamic forces demand reliable low-frequency vibration isolation. Rubber-to-metal bonded construction gives this mount its structural integrity under demanding duty cycles. Key dimensional parameters are: A 69 mm, B 115 mm, CF 96 mm, D 86 mm, E 128 mm, and a fixing slot of 11×20 mm. This geometry and load rating suit applications where significant compressive or shear forces, or a combination of both. Must be absorbed without transferring destructive vibration energy to surrounding structures or foundations. The open spring mount format is specified where high deflection and a low natural frequency are required. At 25 mm deflection under full load, the OSMHD600-C delivers effective isolation for large generating sets, heavy compressors, industrial processing plant, and off-highway or agricultural equipment operating under variable or shock-load conditions. It is equally suited to marine engine installations, railway and transit equipment, and military and defence platforms where structural protection and operator comfort are engineering requirements. Custom variants in stainless steel metals or oil-resistant and high-temperature rubbers are available on request. This mount is part of a broad open spring mounting family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | C |
|---|---|
| Overall length / diameter A (mm) | 69 |
| Width / dimension B (mm) | 115 |
| Height / dimension C (mm) | - |
| Across flats / clearance CF (mm) | 96 |
| Outer diameter D (mm) | 86 |
| Dimension E (mm) | 128 |
| Fixing hole / dimension F (mm) | 11x20 |
| Max load (kg) | 600 |
| Deflection (mm) | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSMHD100-B | OSMHD125-B | OSMHD150-B | OSMHD200-B | OSMHD250-B |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 69mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M12 | M12 | M12 | M12 | M12 |
A. The OSMHD600-C is rated to a maximum load of 600 kg with a deflection of 25 mm, placing it at the heavy-duty end of the open spring mounting range.
A. The principal dimensions are: A 69 mm, B 115 mm, CF 96 mm, D 86 mm, E 128 mm, with a fixing slot of 11×20 mm. It is a Type C configuration.
A. The mount uses rubber-to-metal bonded construction, which provides structural integrity and consistent performance under sustained or shock loading.
A. It is suited to heavy generating sets, large compressors, industrial processing plant, off-highway and agricultural equipment, marine engine installations, railway and mass transit applications, and military and defence platforms — wherever high deflection and low natural frequency isolation are required under heavy or shock loads.
A. Yes. Open spring mounts of this type may be loaded in shear, compression, or a combination of both, depending on the installation requirements.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. The range includes OSM15-A, OSM15-B, OSM15-C, OSM100-A, OSM100-B, OSM100-C, OSM125-B, and OSM125-C, covering lighter loads and smaller configurations.
