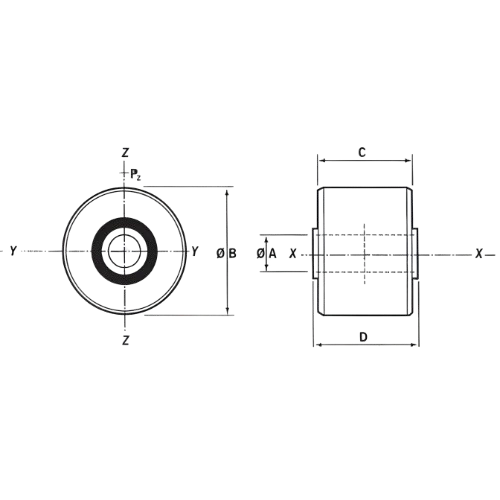

| Spherical Bush (Click a part number to navigate to the product page) |
| Part Number |
Inner Diameter (A) |
Outer Diameter (B) |
Rubber Body Length (C) |
Overall Length (D) |
Axial Load Capacity (Pz) |
| SB1316 |
25.4 |
66.7 |
48 |
54.2 |
34 |
| SB2166 |
25.4 |
66.8 |
47.6 |
54.2 |
34 |
| SB2201 |
25.4 |
66.7 |
47.6 |
54 |
34 |
| SB2106 |
28.6 |
90.5 |
70 |
76.2 |
58 |
| SB1285 |
38.1 |
104.8 |
76.2 |
82.6 |
80 |

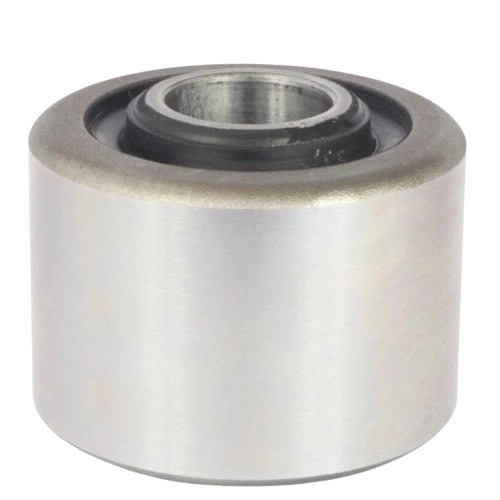

Carrying a radial load rating of 58.0 kN (Pz), the SB2106 sits at the upper end of the spherical bush range, a rubber-to-metal bonded component engineered to absorb and manage dynamic loads across high-demand industrial and mobile applications. With a bore diameter (A) of 28.6 mm, an outer sleeve diameter (B) of 90.5 mm, a rubber element length (C) of 70.0 mm and an overall sleeve diameter (D) of 76.2 mm, this bush is sized for structural pivot and linkage duties where both load capacity and controlled deflection are critical. The rubber-bonded inner-outer-sleeve construction delivers high durability under dynamic loading conditions, offering prolonged service life without any need for greasing or periodic maintenance. The rubber element may be loaded in shear, compression or a combination of both, allowing the bush to accommodate the complex force vectors encountered in pivot bearings and mechanical linkages. This maintenance-free characteristic reduces downtime and lowers whole-life operating costs in applications where access for re-lubrication is difficult or impractical. With its upper-range load capacity, the SB2106 is particularly well suited to heavy-duty cab mounts, structural pivot points on construction and off-highway equipment, and demanding railway and mass transit articulation joints. The bush also finds application across military and defence vehicles, marine installations, power generation plant and agricultural machinery, anywhere that high dynamic loads, vibration isolation and long service intervals must be balanced simultaneously. The rubber-to-metal bond protects surrounding structures, improves operator comfort and extends machinery lifespan under sustained cyclic loading.
