Product Number: TB75
At 75.5 mm outer diameter, TB75 is the largest T-Bush in the range and is engineered to carry the highest load figures the series offers, 340 kg static load with a deflection rate of 2.16 kg/mm. Making it the natural choice wherever robust dynamic isolation is required in demanding service environments. The rubber-to-metal bonded inner-outer-sleeve construction delivers exceptional durability under sustained dynamic loading without the need for lubrication or scheduled maintenance, directly reducing whole-life operating costs and extending service intervals for the surrounding structure. The bush is constructed with rubber bonded between precision inner and outer metal sleeves, a configuration that allows it to accept loading in shear, compression, or a combined mode. This versatility suits installation across pivot bearings and mechanical linkages where multi-axis compliance is required, as well as high-mass cab mounts and engine mounts in off-road and heavy-duty machinery where the full 340 kg capacity can be exploited. The rubber element absorbs and dissipates vibration energy, protecting adjacent structures and improving operator comfort over extended duty cycles. With outer diameter A 75.5 mm, inner sleeve dimension B 50.8 mm, bore C 16.3 mm, sleeve length D 50.3 mm, and flange dimension F 20.6 mm, TB75 integrates into applications across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence sectors. Custom variants, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for specialist or harsh-environment installations.
The low-profile T Bushes are an economical and efficient product for isolating vibration, reducing structure-borne noise, and absorbing high shock forces. Ideal for both static and mobile applications, when installed with top and bottom washers, they offer a secure and fail-safe mounting solution.
Ideal for applications such as:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

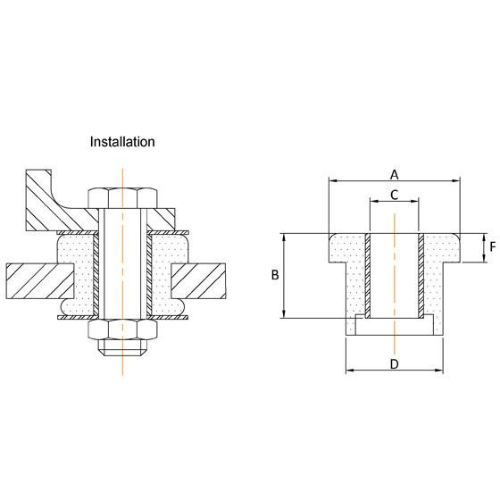

| Flange Outer Dimension (A) | 75.5mm |
|---|---|
| Overall Height (B) | 50.8mm |
| Inner Dimension (C) | 16.3mm |
| Base Outer Diameter (D) | 50.3mm |
| Flange Thickness (F) | 20.6mm |
| Max Load (kg) | 340 |
| Deflection (mm) | 2.16 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

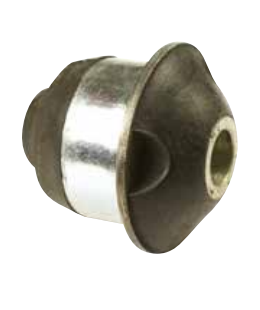

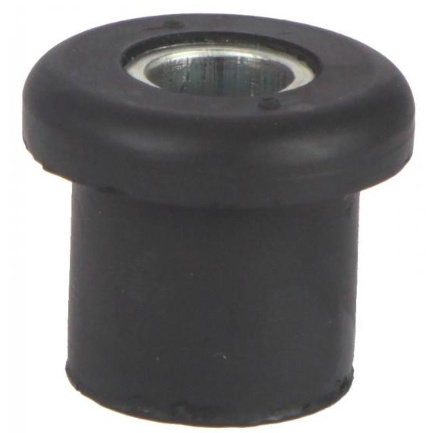

| PRODUCT NUMBER | TBCBA20 | IOS50806575 | TB50 | FB02-45 | FB02-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 50.8mm | 50mm | 49mm | 48mm | 48mm |
| Deflection | 2.5 | 1.6 | |||
| Size Range | 51-100mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The TB75 has an outer diameter (A) of 75.5 mm, inner sleeve diameter (B) of 50.8 mm, bore (C) of 16.3 mm, sleeve length (D) of 50.3 mm, and flange dimension (F) of 20.6 mm.
A. The TB75 is rated to 340 kg with a deflection rate of 2.16 kg/mm, placing it at the top of the T-Bush range for load-bearing capacity.
A. It is suited to pivot bearings, mechanical linkages, cab mounts, engine mounts, off-road and heavy-duty vehicles, construction machinery, agricultural equipment, marine, railway and mass transit, power generation, automotive, and military and defence applications.
A. No. The rubber-to-metal bonded construction is maintenance-free and requires no lubrication throughout its service life.
A. The TB75 can be loaded in shear, compression, or a combination of both, giving flexibility across different mounting configurations.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional custom sizes.
A. The range includes TB12, TB25, TB45, TB50, TB60, and TB65, as well as alternative T-Bush styles TBCBA20 and TBCBA24, all sharing the same rubber-to-metal bonded, maintenance-free design.
