Product Number: TB50-60
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

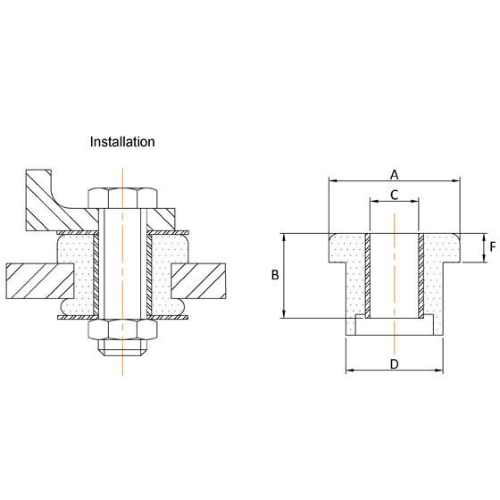

| Flange Outer Dimension (A) | 49mm |
|---|---|
| Overall Height (B) | 35mm |
| Inner Dimension (C) | 13mm |
| Base Outer Diameter (D) | 34mm |
| Flange Thickness (F) | 13mm |
| Max Load (kg) | 200 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB50-75 | IOS35655060 | FB00-45 | FB00-60 | FB00-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 35mm | 35mm | 36mm | 36mm | 36mm |
| Deflection | 1.6 | ||||
| Overall Height | 35mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The TB50 has an outer diameter (A) of 49 mm, a length (B) of 35 mm, an inner bore (C) of 13 mm, dimension D of 34 mm, and dimension F of 13 mm.
A. The TB50 is rated to a radial load capacity of 200 kg with a deflection rate of 1.6 kg per mm.
A. The TB50 is suited to pivot bearings, mechanical linkages, cab mounts, and engine mounts across construction, off-highway, agricultural, power generation, marine, railway, and automotive industries.
A. No. The rubber-to-metal bonded construction means the TB50 requires no lubrication and is maintenance free.
A. The TB50 may be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include TB12, TB25, TB45, TB60, TB65 and TB75, as well as TBCBA20 and TBCBA24 for alternative configuration requirements.
