Product Number: SB2106
Variations
| Spherical Bush (Click a part number to navigate to the product page) | |||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) | Axial Load Capacity (Pz) |
|---|---|---|---|---|---|
| SB1316 | 25.4 | 66.7 | 48 | 54.2 | 34 |
| SB2166 | 25.4 | 66.8 | 47.6 | 54.2 | 34 |
| SB2201 | 25.4 | 66.7 | 47.6 | 54 | 34 |
| SB2106 | 28.6 | 90.5 | 70 | 76.2 | 58 |
| SB1285 | 38.1 | 104.8 | 76.2 | 82.6 | 80 |
Carrying a radial load rating of 58.0 kN (Pz), the SB2106 sits at the upper end of the spherical bush range, a rubber-to-metal bonded component engineered to absorb and manage dynamic loads across high-demand industrial and mobile applications. With a bore diameter (A) of 28.6 mm, an outer sleeve diameter (B) of 90.5 mm, a rubber element length (C) of 70.0 mm and an overall sleeve diameter (D) of 76.2 mm, this bush is sized for structural pivot and linkage duties where both load capacity and controlled deflection are critical. The rubber-bonded inner-outer-sleeve construction delivers high durability under dynamic loading conditions, offering prolonged service life without any need for greasing or periodic maintenance. The rubber element may be loaded in shear, compression or a combination of both, allowing the bush to accommodate the complex force vectors encountered in pivot bearings and mechanical linkages. This maintenance-free characteristic reduces downtime and lowers whole-life operating costs in applications where access for re-lubrication is difficult or impractical. With its upper-range load capacity, the SB2106 is particularly well suited to heavy-duty cab mounts, structural pivot points on construction and off-highway equipment, and demanding railway and mass transit articulation joints. The bush also finds application across military and defence vehicles, marine installations, power generation plant and agricultural machinery, anywhere that high dynamic loads, vibration isolation and long service intervals must be balanced simultaneously. The rubber-to-metal bond protects surrounding structures, improves operator comfort and extends machinery lifespan under sustained cyclic loading.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (A) | 28.6 mm |
|---|---|
| Outer Diameter (B) | 90.5 mm |
| Rubber Body Length (C) | 70 mm |
| Overall Length (D) | 76.2 mm |
| Axial Load Capacity (Pz) | 58 kN |
| Warranty | 6 months |

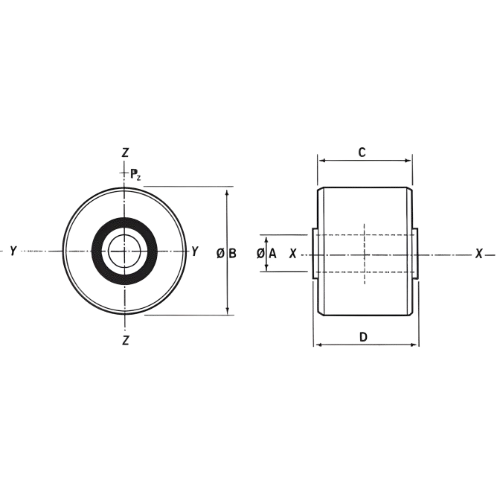

| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 28.6mm, Outer Dia 90.5mm, L 70mm - SB2106
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | IOS1005 | IOS0989 | IOS2847110116 | IOS30506066 | IOS30606068 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 28.58mm | 28.57mm | 28mm | 30mm | 30mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The SB2106 has a bore diameter (A) of 28.6 mm, an outer sleeve diameter (B) of 90.5 mm, a rubber element length (C) of 70.0 mm and an overall sleeve diameter (D) of 76.2 mm.
A. The SB2106 has a radial load rating (Pz) of 58.0 kN, placing it at the upper end of the spherical bush range and making it suited to high-load structural and pivot applications.
A. No. The rubber-to-metal bonded construction means the SB2106 is maintenance free and requires no lubrication throughout its service life.
A. The bush may be loaded in shear, compression or a combination of both, allowing it to handle the complex force vectors typical of pivot bearings and mechanical linkages.
A. The SB2106 is suited to heavy-duty cab mounts, pivot bearings, construction and off-highway equipment, railway and mass transit articulation, military and defence vehicles, marine installations, power generation plant and agricultural machinery.
A. Yes — related sizes include the SB1285, SB1316, SB2166 and SB2201, covering a range of bore sizes and load bands. Contact PartsForMachines to discuss which size best suits your application.
A. Custom options including stainless steel metal components and oil-resistant or high-temperature rubber compounds, as well as additional sizes, are available on request.
