Product Number: SB1316
Variations
| Spherical Bush (Click a part number to navigate to the product page) | |||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) | Axial Load Capacity (Pz) |
|---|---|---|---|---|---|
| SB1316 | 25.4 | 66.7 | 48 | 54.2 | 34 |
| SB2166 | 25.4 | 66.8 | 47.6 | 54.2 | 34 |
| SB2201 | 25.4 | 66.7 | 47.6 | 54 | 34 |
| SB2106 | 28.6 | 90.5 | 70 | 76.2 | 58 |
| SB1285 | 38.1 | 104.8 | 76.2 | 82.6 | 80 |
At 25.4 mm bore diameter, the SB1316 is the smallest in its spherical bush range, making it particularly well suited to applications where compact geometry and controlled load response within the lower end of the load band are the governing design criteria. Dimension A measures 25.4 mm, B 66.7 mm, C 48.0 mm, and D 54.2 mm, with a Pz figure of 34.0, a tight dimensional footprint that positions this bush for lighter-duty articulation points and precision pivot locations. Constructed with rubber bonded between inner and outer metal sleeves, the SB1316 delivers high durability under dynamic loads and is engineered for prolonged service life without any lubrication or maintenance requirement. The rubber-to-metal bonded construction accommodates loading in shear, compression, or a combination of both, protecting surrounding structures and improving operator comfort in service. Typical application areas include pivot bearings, mechanical linkages, cab mounts, and engine mounts across construction and off-highway equipment, agricultural machinery, marine installations, and railway and mass transit systems. Military and defence, power generation, and automotive sectors are also served where compact spherical bush geometry meets the load and deflection requirements of the installation. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds, plus additional sizes. Are available on request. This bush is part of a wider spherical bush family. Related variants include SB1285, SB2106, SB2166, and SB2201, which cover alternative bore sizes and dimensional envelopes within the same IOS inner-outer-sleeve product range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (A) | 25.4 mm |
|---|---|
| Outer Diameter (B) | 66.7 mm |
| Rubber Body Length (C) | 48 mm |
| Overall Length (D) | 54.2 mm |
| Axial Load Capacity (Pz) | 34 kN |
| Warranty | 6 months |

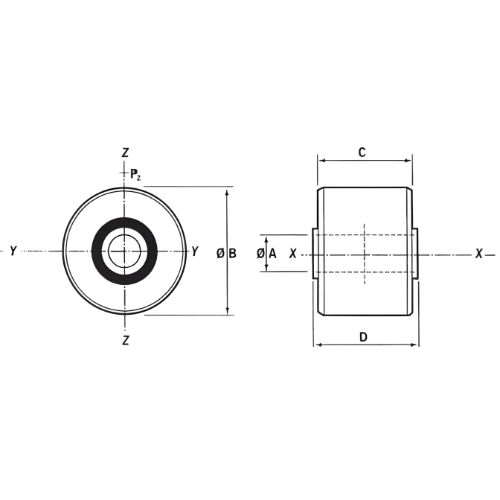

| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 25.4mm, Outer Dia 66.7mm, L 48mm - SB1316
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ECC1165-45 | ECC1165-45-45 | ECC1165-60 | ECC1165-60-60 | IOS0877 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The SB1316 has the following dimensions: A (bore) 25.4 mm, B 66.7 mm, C 48.0 mm, D 54.2 mm, and a Pz value of 34.0.
A. The SB1316 is suited to construction and off-highway, agriculture, marine, railway and mass transit, power generation, automotive, and military and defence applications wherever compact spherical bush geometry is required.
A. It is designed for use in pivot bearings, mechanical linkages, cab mounts, and engine mounts, particularly where a compact bore size and controlled dynamic load response are required.
A. No. The rubber-to-metal bonded construction means the SB1316 requires no lubrication and is maintenance free throughout its service life.
A. The bush may be loaded in shear, compression, or a combination of both, as is typical of the inner-outer-sleeve bonded rubber construction.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Yes. Related variants in the spherical bush family include SB1285, SB2106, SB2166, and SB2201, covering alternative bore sizes and dimensional envelopes.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
