| Spherical Bush (Click a part number to navigate to the product page) |
| Part Number |
Inner Diameter (A) |
Outer Diameter (B) |
Rubber Body Length (C) |
Overall Length (D) |
Axial Load Capacity (Pz) |
| SB1316 |
25.4 |
66.7 |
48 |
54.2 |
34 |
| SB2166 |
25.4 |
66.8 |
47.6 |
54.2 |
34 |
| SB2201 |
25.4 |
66.7 |
47.6 |
54 |
34 |
| SB2106 |
28.6 |
90.5 |
70 |
76.2 |
58 |
| SB1285 |
38.1 |
104.8 |
76.2 |
82.6 |
80 |

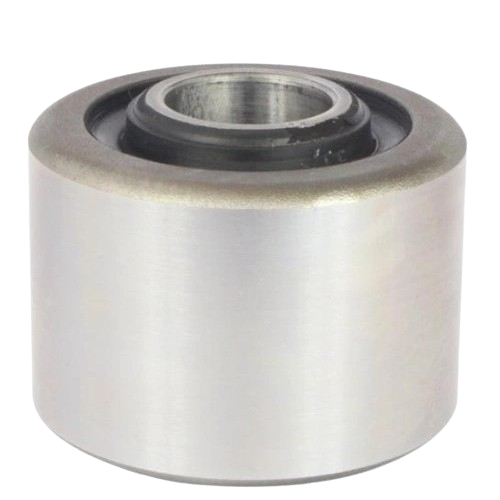

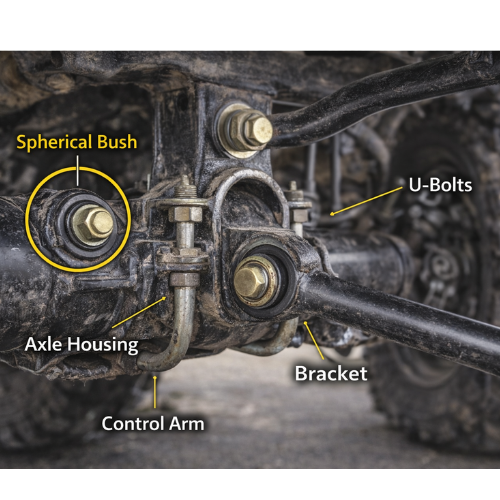

Carrying a rated axial load of 34.0 kN, the SB2201 is a 25.4 mm bore spherical bush designed to perform across demanding dynamic-load applications where maintenance access is limited or impractical. Rubber bonded between inner and outer metal sleeves, this mid-range unit delivers reliable performance under sustained service without any lubrication requirement. The rubber-to-metal bonded construction is engineered to absorb and dissipate energy under dynamic loading in shear, compression, or combined directions. Freedom from lubrication reduces service intervals and extends component life, while the bonded assembly protects surrounding structures and improves operator comfort in cab and vehicle installations. Custom configurations in stainless steel metals and oil-resistant or high-temperature rubbers are available on request. With a bore diameter (A) of 25.4 mm, outer diameter (B) of 66.7 mm, sleeve length (C) of 47.6 mm, outer sleeve diameter (D) of 54.0 mm, and an axial load rating (Pz) of 34.0 kN, the SB2201 suits pivot bearings, mechanical linkages, and cab mounts in construction and off-highway equipment, as well as agricultural machinery, power generation plant, marine installations, and railway and mass transit applications where its mid-range load capacity aligns with the demands of the installation. The spherical bush range extends across multiple bore sizes and load bands. Related variants include SB1285, SB1316, SB2106, and SB2166, each suited to different dimensional and load requirements, refer to the individual listings for full specifications. The SB2201 is supplied as a single assembled bush unit. No warranty information is available for this product.
