Product Number: 05795PEDAL

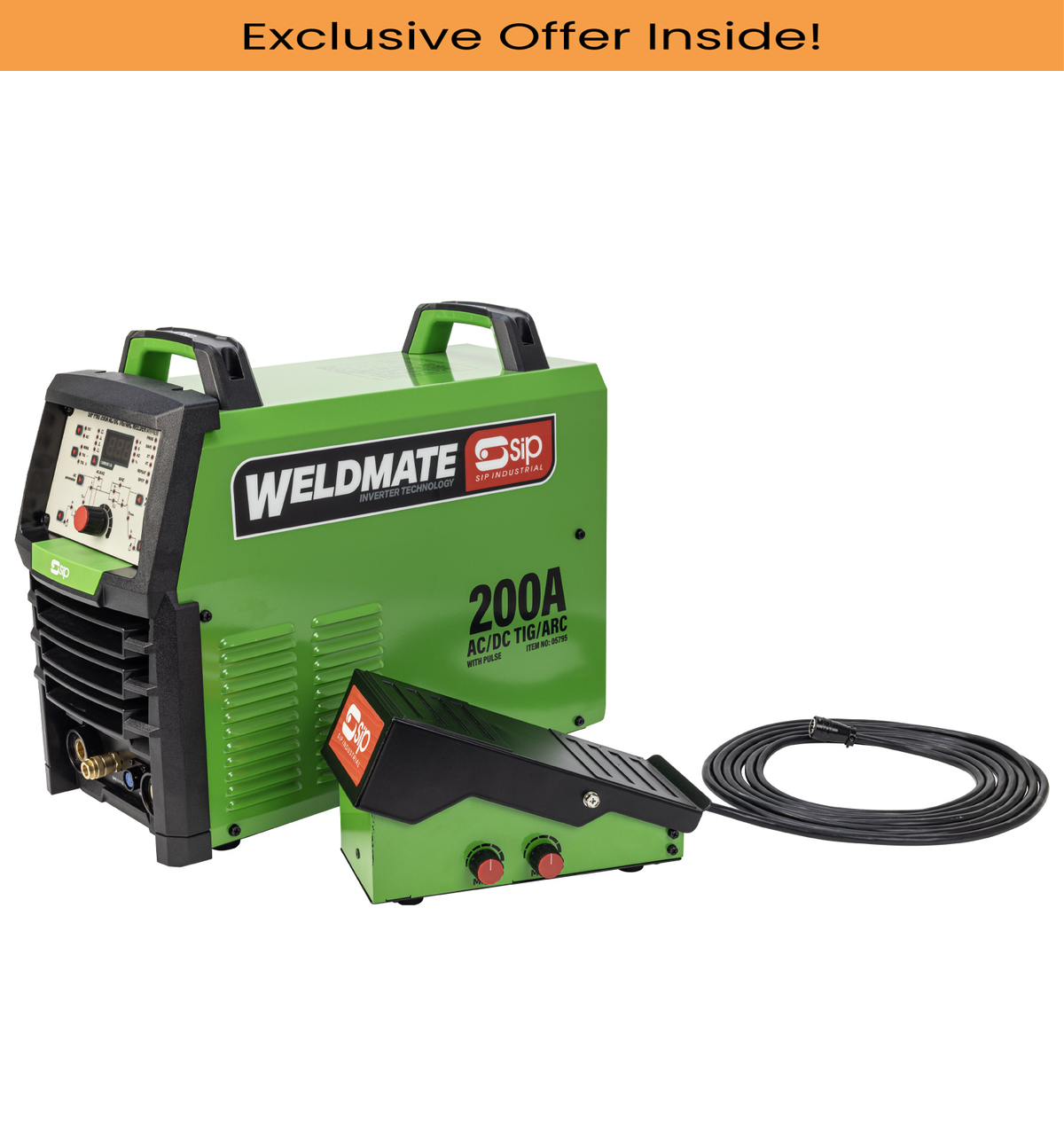

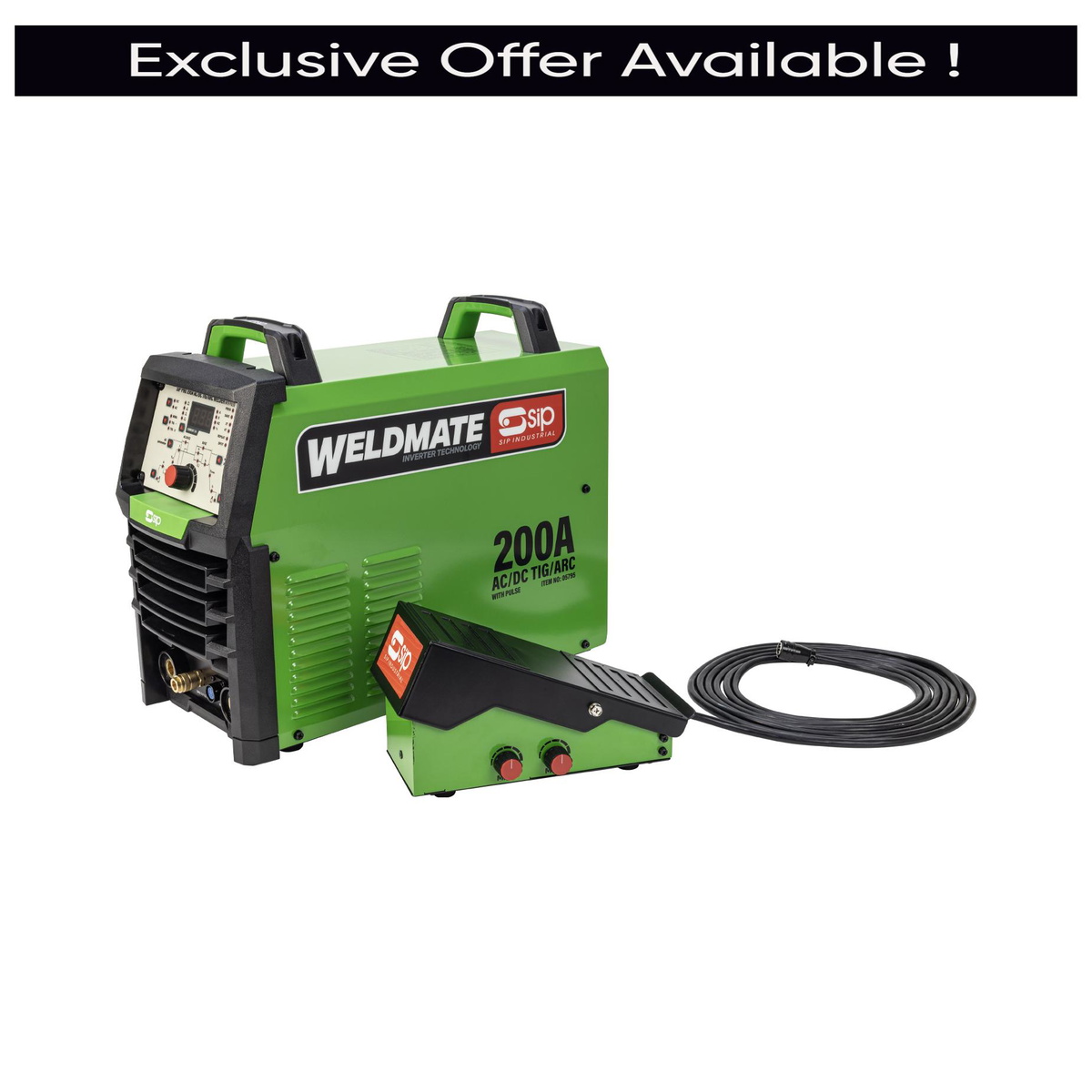

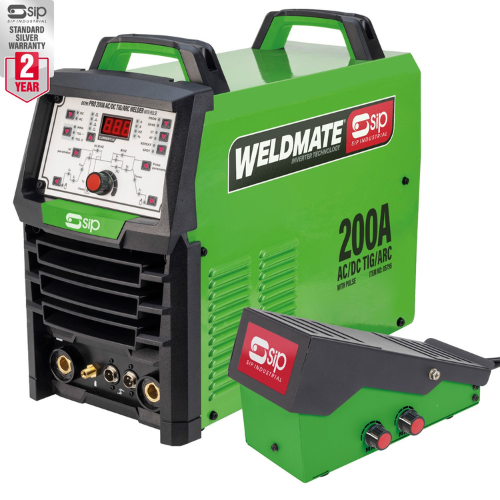

AC TIG output enables aluminium welding; DC TIG covers steel and stainless steel. The SIP 05795 PEDAL PRO AC/DC TIG/ARC Welder with Foot Pedal, Input Supply - 230V, Single Phase, Output Current - 200A / 160A (05795PEDAL) provides both in a single professional inverter, delivering (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC) from a 230V / 16A (not supplied) supply with a duty cycle of / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC). A foot pedal is supplied for hands-free current control during the weld.
AC/DC TIG (aluminium capable).

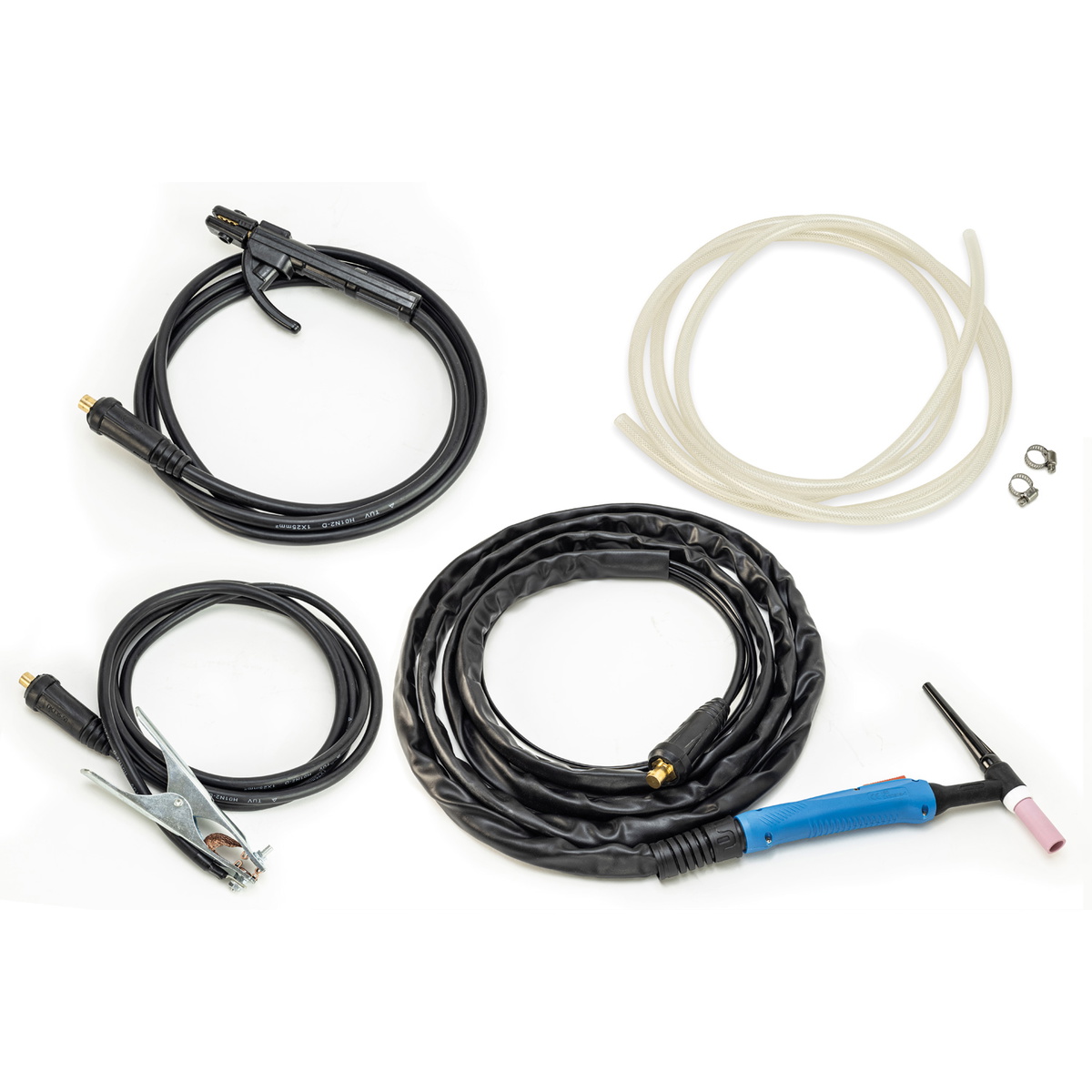

Supplied with:
Suitable for welding mild steel, stainless steel, aluminium, copper and brass. suited to garage, workshop, fabrication environments. For operators comparing AC/DC TIG welders for aluminium and steel, the 05795PEDAL provides both AC output for aluminium and DC output for mild steel and stainless steel in a single machine — no need for separate dedicated units.
Additional Information:
The SIP PRO 200A AC/DC TIG/ARC Welder with Pulse is a dual process welder with AC/DC TIG capability for professional applications. This powerful inverter welder can be used for both TIG and ARC welding processes for outstanding versatility in demanding environments. Featuring TIG Pulse functionality, a multi-stage pulse parameter program and 4 AC waveforms, the adaptable settings and high duty cycles are designed to meet specific user needs and ensure greater control of precision welds. The 05727 SIP Foot Pedal Control offers hands-free welding for skilled professionals, allowing greater control of the weld pool and welding process. Applications & uses: Ideal for professional fabrication workshops. Perfect for engineering and garage settings. Suitable for aluminium, stainless steel, mild steel, brass and copper.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05795 |
|---|---|
| Input Supply | 230v (16A) (not supplied) |
| Output Current (TIG AC/DC) | 5A - 200A (AC) / 5A - 200A (DC) |
| Output Current (MMA DC) | 30A - 160A (DC) |
|
TIG AC/DC
|
|
|
Duty Cycle @ 40°C / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
|
|
|
160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
|
|
|
Duty Cycle @ 20°C / 10min 200A @ 60% / 150A @ 100% (TIG AC/DC)
|
|
|
160A @ 60% / 130A @ 100% (MMA)
|
|
| Protection | IP21S/H |
| Net Weight | 15.90kg |
| Gross Weight | 17.50kg |
| Product Dimensions | 395(H) x 480(W) x 225mm(D) |
| Packaged Dimensions | 440(H) x 560(W) x 330mm(D) |
| ITEM NO | 05727 |
| Cable Length | 4.8mtr |
| Net Weight | 2.30kg |
| Gross Weight | 2.70kg |
| Product Dimensions | 158(H) x 280(W) x 138mm(D) |
| Packaged Dimensions | 208(H) x 343(W) x 150mm(D) |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05795 WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse
£960.10
£941.27
2% OFF
Free delivery in Channel Island
|
SIP 05695 WELDMATE® PRO 200A DC TIG/ARC Inverter Welder
£441.12
£432.47
2% OFF
Free delivery in UK Mainland
|
Draper 70052 High Frequency AC/DC TIG/MMA Aluminium Welder Dti, 200A
£907.82
£890.02
2% OFF
Free delivery in UK Mainland
|
SIP 05705 T1400 ARC/TIG Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 20A-140A
£121.16
£118.78
2% OFF
Free delivery in UK Mainland
|
SIP 05771 HG2200P TIG/ARC Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 200A / 200A
£427.03
£418.66
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05795 | 05695 | 70052 | 05705 | 05771 | CAP0936 | CAP1031 | CAP1028 | CAP1027 |
| Input Supply | 230 | 230 | 230 | 230 | 230 | 110/230 | 230 | ||
| Input current | 32 | 13 | 16 | 16 | 16 | 32/16 | 16 | ||
A. Yes. The 05795PEDAL features AC TIG output specifically for aluminium welding, in addition to DC TIG for mild steel and stainless steel. You will need appropriate tungsten electrodes and shielding gas for aluminium TIG work.
A. The 05795PEDAL requires a 230V / 16A (not supplied) supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 05795PEDAL has a duty cycle of / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC). Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 05795PEDAL is supplied with AC balance. Additional consumables are available separately through PartsForMachines.com.
A. The 05795PEDAL weighs 15.90kg and includes a carry handle for transport between locations. It can be moved by a single person and is suited to workshop use.
A. The 05795PEDAL welds mild steel, stainless steel, aluminium, copper and brass. Use the appropriate electrode type for each base metal.
A. The 05795PEDAL is covered by SIP's 2-Year Standard Silver Warranty, covering manufacturing defects under normal use conditions. Register the product with SIP at time of purchase to activate the warranty.
A. The 05795PEDAL is supplied with a foot pedal for hands-free current control during the weld — useful for precision work and positional welding.
A. TIG produces the cleanest, most precise welds — ideal for stainless steel, thin sheet, and visible joints where appearance matters. ARC/MMA is faster for thicker sections and suits outdoor or on-site work. The 05795PEDAL lets you switch between TIG and ARC to match the job.
