Product Number: 15071

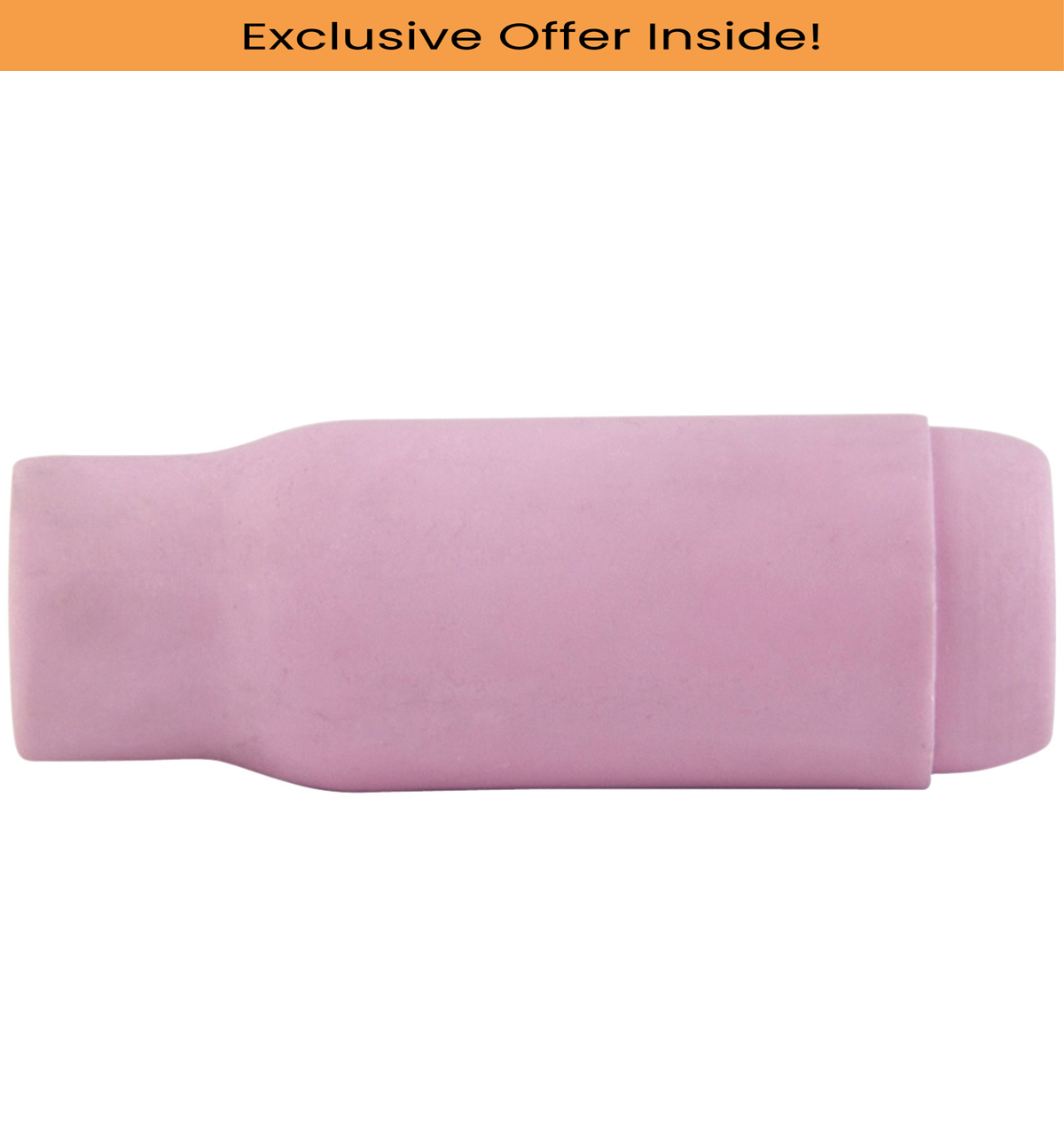

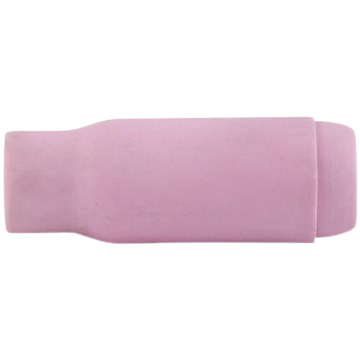

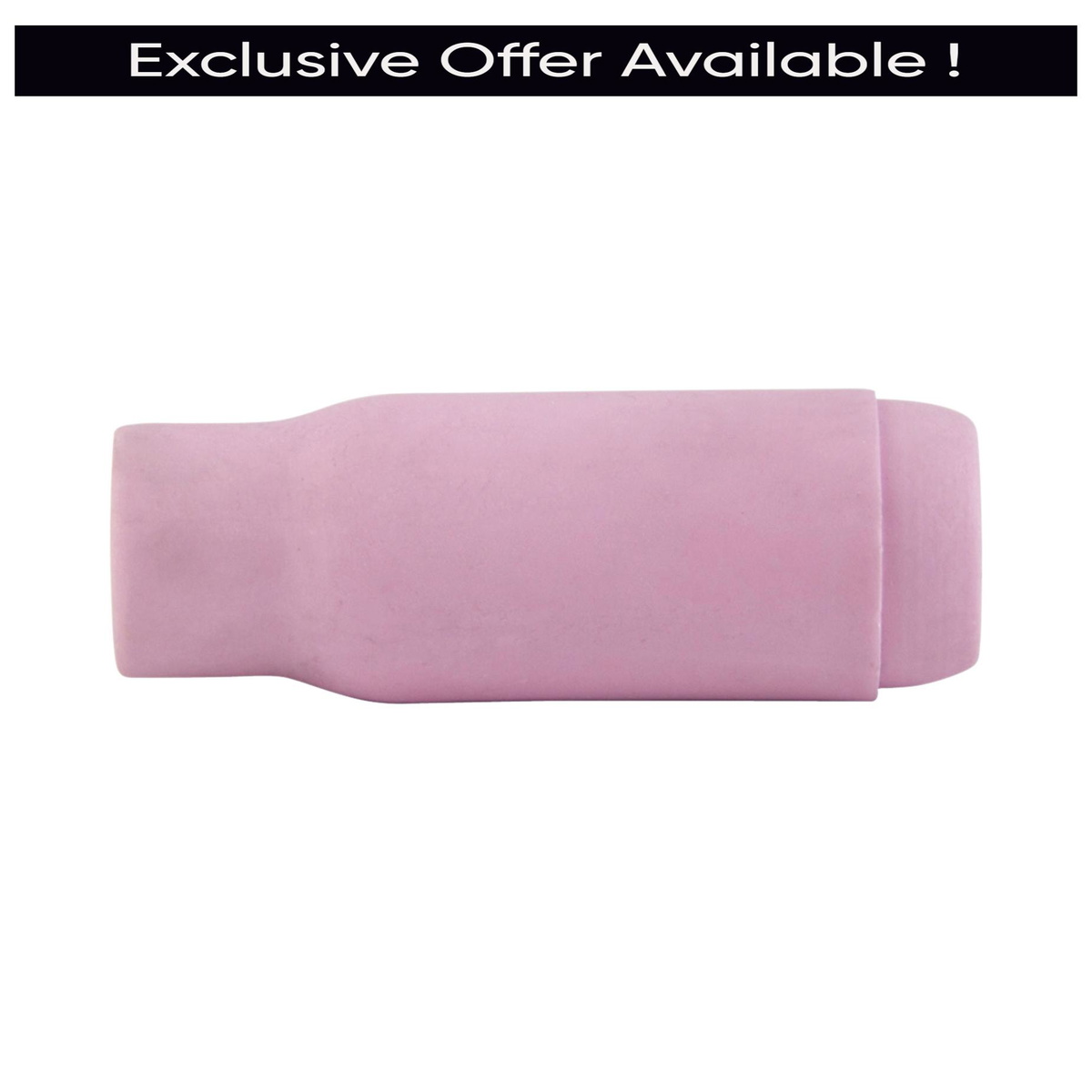

The SIP 15071 tig torch. The SIP 10N45 16mm TIG Torch Ceramic is manufactured from high-quality ceramic, and offers reliable and durable performance in tandem with a range of heavy-duty TIG welding torches. 10N45 16mm torch ceramic; high-quality material. Reference your SIP manual for further information. Compatible across the sip welding, sip tig torches welding range — check product specifications for exact model fit. Also known as replacement tig torch or air cooled tig torch in welding supplies catalogues.
Additional Information:
The SIP 10N45 16mm TIG Torch Ceramic is manufactured from high-quality ceramic, and offers reliable and durable performance in tandem with a range of heavy-duty TIG welding torches.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 15071 |
|---|---|
| Ceramic Size | 10N45 16mm |
| Suitable For | 05008, 05015 |
| Pack Height (mm) | TBC |
| Pack Width (mm) | TBC |
| Pack Depth (mm) | TBC |
| Pack Gross (g) | 200 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
05795PEDAL | SIP 05795 PEDAL PRO AC/DC TIG/ARC Welder with Foot Pedal, Input Supply - 230V, Single Phase, Output Current - 200A / 160A | 1 Unit |
£1,010.44
£990.63
|
Add |
|
05795 | SIP 05795 WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse | 1 Unit |
£960.10
£941.27
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 02676 | 02711 | 01062 | 08169 | 09699 |
A. The ceramic gas cup directs shielding gas around the tungsten and weld pool during TIG welding, protecting both from atmospheric contamination. The cup size and profile affect gas coverage area and torch access to tight joints.
A. The cup bore is 16mm, fitting TIG torch collet bodies of the same size. Always match ceramic cup bore to your tungsten diameter — oversized cups reduce gas velocity and coverage quality.
A. The SIP 15071 fits SIP TIG torch bodies using the corresponding collet body size. Check the torch series (SR9, SR17, SR26) and tungsten diameter against the cup specification before ordering.
A. Replace immediately if cracked — even hairline cracks cause gas turbulence and porosity in the weld. Also replace when the cup is heavily spattered (restricting gas flow) or chipped at the exit. Ceramic is brittle — handle with care during changeovers.
A. Yes — a cracked cup disrupts the laminar gas flow around the weld pool, allowing atmospheric oxygen and nitrogen to contaminate the weld. This causes porosity and weld discolouration, particularly visible on stainless steel and titanium.
A. A gas lens is a collet body with a fine mesh screen that creates more uniform, laminar gas flow from the cup. Gas lens setups provide better gas coverage, allowing longer tungsten extension and improved access to joints. They are particularly beneficial for stainless, aluminium, and exotic alloys.
A. Ceramic cups are sized by bore diameter to match tungsten and collet body sizes — 1.0mm, 1.6mm, 2.4mm, and 3.2mm are the standard TIG sizes. Additional cup lengths (short, standard, long) are available for different access requirements. The full range is in the TIG Consumables section.
A. Yes — Pyrex/glass gas cups provide full visibility of the weld zone and are useful for precise positioning work. They are more fragile than ceramic and are most commonly used for TIG welding of visible stainless or aluminium work where weld placement accuracy is critical.
A. At minimum you need a welding helmet or headshield (auto-darkening recommended), leather welding gauntlets, a fire-resistant apron or jacket, and steel-toe boots. For enclosed spaces, a fume extractor or respirator is essential. A welding curtain or screen protects bystanders from UV flash. Keep a fire extinguisher accessible.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
