Product Number: CAP1028
Variations

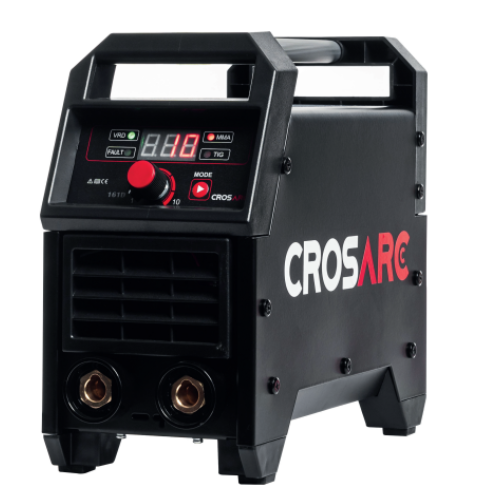

Weld and steel from the same machine. Lift-TIG start provides clean arc ignition. VRD (Voltage Reduction Device) reduces open-circuit voltage in standby for additional operator safety.Generator-friendly design makes it suitable for site and remote use.
Latest IGBT Multi Process Inverter Power Source. Digital Amp Display. Additional features include 35-50mm cable sockets, VRD safety device, portable, generator friendly.
Supplied with:
Suitable for welding mild steel and stainless steel.
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature, with IP21 protection rating for workshop use. For operators comparing TIG welders for steel and stainless steel, the CAP1028 delivers DC TIG output with lift or HF arc start. TIG welding produces the cleanest, most precise welds — ideal for visible joints and thin materials. Replacement consumables for the CAP1028 are available at PartsForMachines.com.
Additional Information:
Product Features:
Functions:
Package Includes:
Options:
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Input Voltage | 1P-110/230 (+ - 15%) 50/60Hz |
|---|---|
| Input Current 110V | 32 (A) |
| Input Current 230V | 16 (A) |
| Current Range 110V | 15-120 (A) |
| Current Range 230V | 15-160 (A) |
| Duty Cycle 110V @ 40°C | 120A @ 25% |
| Duty Cycle 230V @ 40°C | 160A @ 25% |
| Efficiency (%) | 80 |
| Power Factor @ 100% | 0.73 |
| Protection / Insulation Class | IP21/F |
| Cooling | Fan |
| Dimensions (mm) | 450 x 280 x 320 |
| Weight (Kg) | 8.50 |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05696 WELDMATE® PRO 180A ARC/TIG Inverter Welder
£175.73
£172.28
2% OFF
Free delivery in UK Mainland
|
SIP 05705 T1400 ARC/TIG Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 20A-140A
£121.16
£118.78
2% OFF
Free delivery in UK Mainland
|
SIP 05771 HG2200P TIG/ARC Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 200A / 200A
£427.03
£418.66
2% OFF
Free delivery in UK Mainland
|
SIP 05732 HG2600A ARC/TIG Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 250A / 250A
£362.38
£355.27
2% OFF
Free delivery in UK Mainland
|
SIP 05707 T1600 ARC/TIG Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 160A / 160A
£127.67
£125.17
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CAP0258 | TIG160 | 05696 | CAP0936 | CAP0980 | 05705 | 05771 | 05732 | 05707 |
A. The CAP1028 supports TIG welding, ARC/MMA stick welding. Suitable for mild steel.
A. Yes. The CAP1028 is a dual-voltage machine operating on 230V for full output or 110V for site-safe reduced output. On 110V the maximum current is lower — consult the full spec table for 110V current limits.
A. The CAP1028 has a duty cycle of 110V @ 40°C: 120A @ 25%. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The CAP1028 is supplied with 161D Inverter Power Source, 3 Mtr MMA Lead, Earth Return Lead & Clamp, 13A Plug, Options:. Additional consumables are available separately through PartsForMachines.com.
A. Yes — the CAP1028 is generator-friendly and designed for varied environments including site and remote use.
A. The CAP1028 is primarily suited to mild steel.
A. VRD stands for Voltage Reduction Device. When the CAP1028 is in standby between welds, the VRD reduces the open-circuit voltage to a safer level, reducing the risk of electric shock — particularly relevant in confined spaces and site environments.
A. The CAP1028 does not include a foot pedal as standard. A compatible foot pedal may be available as an optional accessory — check the product listing for compatible accessories.
A. TIG produces the cleanest, most precise welds — ideal for stainless steel, thin sheet, and visible joints where appearance matters. ARC/MMA is faster for thicker sections and suits outdoor or on-site work. The CAP1028 lets you switch between TIG and ARC to match the job.
