Product Number: 08206A

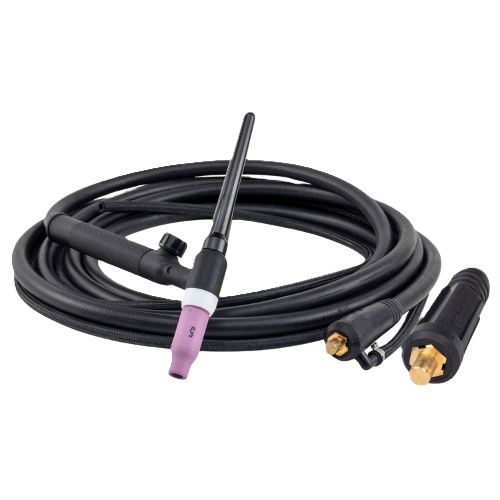

The SIP 08206A tig torch. SIP 17V Air-Cooled TIG. TheSIP 17V Air-Cooled 4mtr TIG Welding Torch with Valve Headis suitable for use across the SIP range of WELDMATE, WELDMATE PRO and WELDMATE AUTOPLUS Inverter Welders. This torch is complete with 10mm - 25mm and 35mm - 50mm welding cable power connectors, and gas hose (without fitting). Applications uses:Compatible with inverter welders across the WELDMATE, WELDMATE PRO and WELDMATE AUTOPLUS range. Compatible across the sip welding, sip tig torches welding range — check product specifications for exact model fit. Also known as replacement tig torch or air cooled tig torch in welding supplies catalogues.
Additional Information:
The SIP 17V Air-Cooled 4mtr TIG Welding Torch with Valve Head is suitable for use across the SIP range of WELDMATE®, WELDMATE® PRO and WELDMATE® AUTOPLUS Inverter Welders.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 08206A |
|---|---|
| Torch Type | SIP 17V Air-Cooled TIG |
| Suitable For | 05690, 05691, 05696, 05731, 05733, 05734, 05735, 05737, 05738, 05739, 05740, 05751, 05752, 05753 |
| Output Current | 150A DC / 115A AC |
| Electrode Diameter | ⌀ 1mm - 3.2mm |
| Connector Type | 10mm - 25mm, 35mm - 50mm |
| Cable Length | 4mtr |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 05123 | 02792 | 03357 | 61811 |
A. Compatible with: SIP 05733 and 05733 (and 1 more). Confirm the torch connector type and pin count match your machine socket.
A. The SIP 08206A is rated at 08206A (air-cooled). Running above this level overheats the gas seal and collet assembly. For sustained high-amperage TIG work, consider a water-cooled torch.
A. The SIP 08206A is air-cooled. Air-cooled torches are lighter, simpler, and more portable. Water-cooled torches offer higher sustained current ratings and a slimmer torch body for better visibility at the weld joint.
A. The SIP 08206A uses SR17-series consumables — collets, collet bodies, ceramic cups, and back caps in the appropriate sizes for your tungsten diameter. The full range is in the TIG Welding Consumables section.
A. Keep the tungsten above the weld pool and away from filler rod. Allow 5–10 seconds of Argon post-flow after extinguishing the arc — tungsten oxidises above 200°C. Re-grind at the first sign of contamination (dark discolouration, arc wandering).
A. TIG welding requires pure Argon shielding gas — not CO2 or Argon/CO2 mix. Pure Argon provides the stable arc and clean weld pool needed for TIG. Set the flow rate to 6–12 L/min depending on material and cup size.
A. Ceramic cup size is chosen based on tungsten diameter, gas coverage needed, and access to the joint. Larger cups provide better gas coverage for critical alloys (titanium, stainless). Smaller cups improve visibility and access in tight joints.
A. Clean the collet and collet body regularly — contamination causes arc instability. Replace ceramic cups when cracked (even hairline cracks cause gas turbulence). Replace the back cap if gas tightness is compromised. Inspect the torch lead for damage.
A. Euro torch connections allow quick torch changes without tools. If your machine has a Euro socket, any Euro-compatible torch will fit regardless of brand. If your machine does not have a Euro socket, check whether a Euro conversion kit is available for your specific model before purchasing a Euro torch.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
