Product Number: 05108
Variations

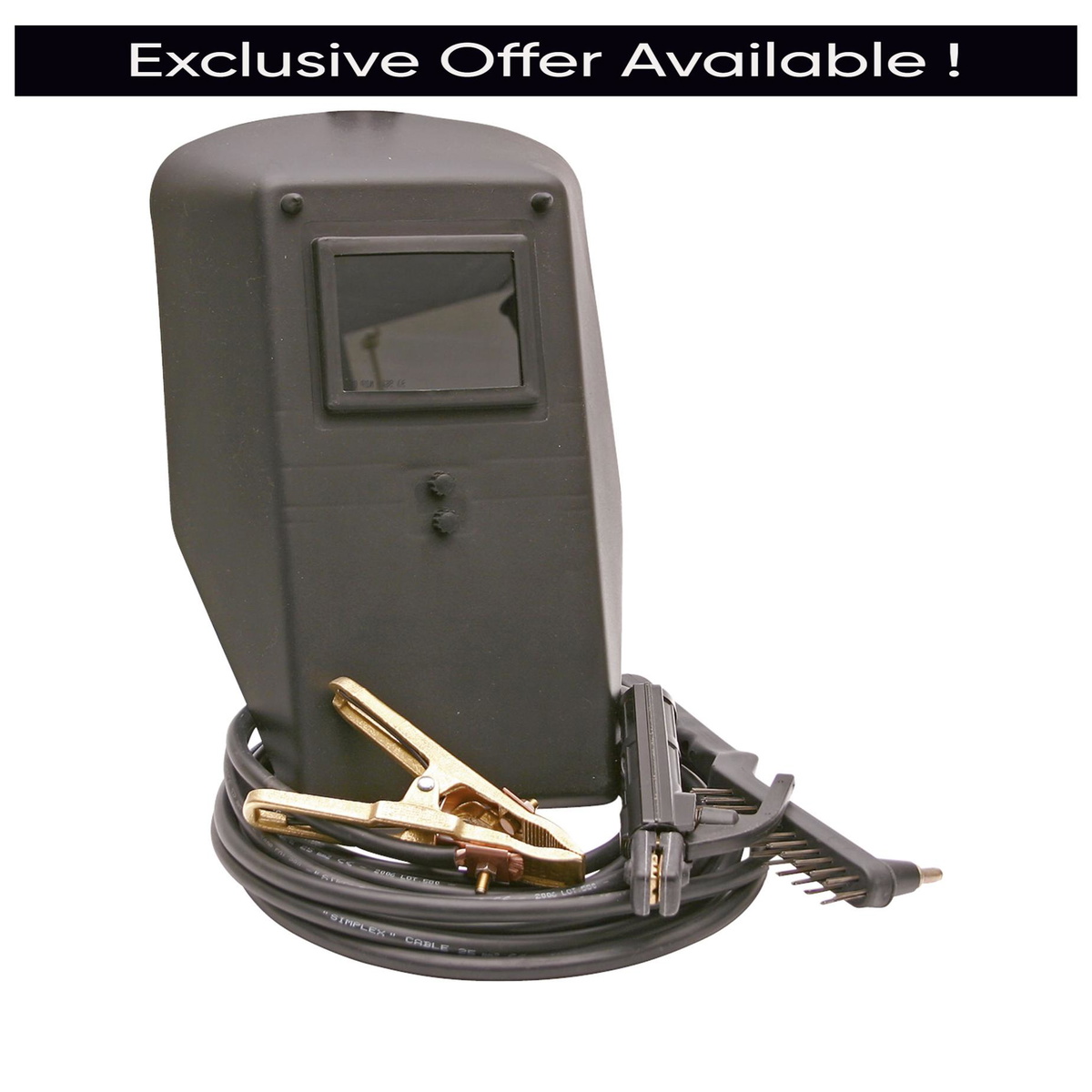

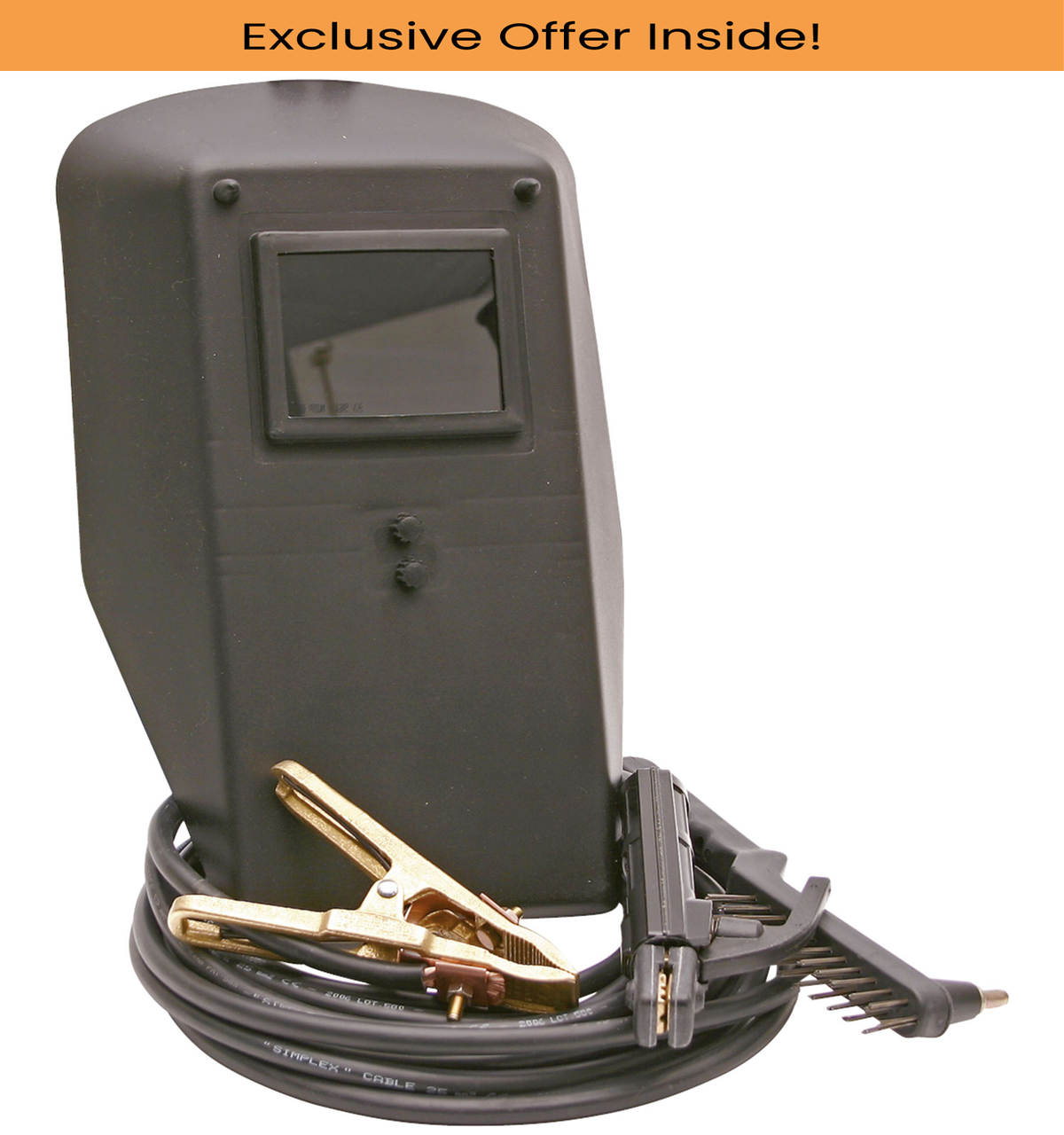

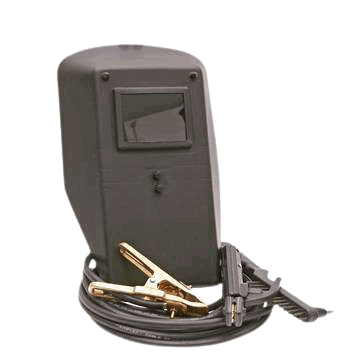

The SIP 05108 is a 35mm² ARC/MMA welding kit with small Dinse connectors, providing a complete electrode lead assembly for ARC/MMA welding machines. The kit includes cable, electrode holder, and Dinse connectors rated for continuous welding. Ensure the Dinse connector size matches your machine's electrode socket before ordering. Also found under welding cable connector, dinse plug, dinse socket in the PartsForMachines.com welding range.
Additional Information:
The SIP 35mm² Small Dinse ARC/MMA Welding Kit features a comprehensive selection of high-quality SIP welding accessories and consumables that are essential for any home or DIY welding environment and complement the SIP Welding range.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05108 |
|---|---|
| Connection Size | SMALL DINSE |
| Max. Output | 300A |
| Cable Diameter | Ø 35mm² |
| Electrode Cable Length | 3mtr |
| Earth Cable Length | 3mtr |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 70011 MMA Inverter Welder with TIG-Lift Dti, 200A
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 05035 | 05701 | 34310 | 57096 | 70011 |
A. The SIP 05108 is rated at continuous welding current. Ensure this matches or exceeds your machine's output rating before ordering.
A. Dinse connectors provide a standardised, low-resistance bayonet connection for welding electrode leads and earth cables. They are the most common connection type on inverter and transformer welding machines.
A. Dinse connectors come in 10-25, 35-50, and larger sizes, rated for different current levels. The 10-25 size suits leads up to 200A; 35-50 suits up to 400A. Match connector size to your cable rating and machine socket specification.
A. Insert the Dinse plug into the matching socket and rotate approximately 30–45° to lock in the bayonet groove. The connection is secure when you feel it click or seat firmly. A loose connection causes arcing at the socket and overheating.
A. No — Dinse connector sizes are not interchangeable. A 10-25 plug will not seat or lock in a 35-50 socket. Always match plug and socket size exactly.
A. Inspect regularly for pitting, arcing marks, or loose fit. Clean with fine emery cloth if contact surfaces show oxidation. Replace if the locking mechanism is worn — a loose Dinse connection causes arc problems that are often mistaken for machine faults.
A. Dinse connectors are used on most modern inverter and multi-process welding machines across all major brands — SIP, Sealey, Draper, Clarke, CROSARC, and TIGREN all use Dinse-type sockets. Confirm the socket size before ordering.
A. Check your machine's socket markings or manual. 10-25 sockets are typically labelled for cables up to 25mm²; 35-50 sockets for cables up to 50mm². The socket size should match the rated output current.
A. Essential accessories include a welding helmet, leather gauntlets, an earth clamp, and consumables for your welding process — wire and gas for MIG, electrodes for ARC/MMA, tungsten and gas for TIG. A wire brush and chipping hammer are needed for post-weld cleanup. A welding cart keeps your machine mobile.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
