Air staplers, nailers and riveters put fastening on the air line: the pneumatic guns that drive staples, nails and rivets faster and more consistently than any hand method, for upholstery, joinery, bodywork and fabrication trades. PartsForMachines supplies the range to the trade as an Authorised Distributor and Seller for Sealey and Draper, with SIP equipment alongside.
The families split by fastener. Air staplers cover upholstery, trim and sheathing work, specified by the staple series they magazine, crown width, gauge and leg-length range being the compatibility that matters. Nailers run from brad and finish guns for joinery and trim through to framing-class tools, specified the same way: the nail type and length range the magazine accepts. Air riveters set blind pop rivets in the diameters bodywork and fabrication use, with hydraulic-pneumatic action doing in a trigger pull what hand riveters do in aching squeezes, specified by rivet diameter capacity and material. The working numbers sit on every product page: fastener compatibility, air consumption and operating pressure, magazine capacity and weight, with Compare lining up tools and Ask Simon confirming fastener compatibility, the question that matters most, since the gun and its consumables are a matched system.
Fasteners are listed alongside the tools in trade quantities, and supply discipline keeps the tools alive: regulated pressure to the tool's rating, clean lubricated air, and the consumables the magazine was designed for.
Couplings, hoses and the wider air tool range sit in the same section. For trade fit-outs, contact the team via WhatsApp 07754288583.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 0.28cfm (0.8L/min) |
| Min Hose Size | 3/8" (10mm) |
| Nail Size | 10-50mm, Head 2mm, Gauge 18 |
| Operating Air Pressure | 75 - 100psi |
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 0.26cfm (0.75L/min) |
| Min Hose Size | 3/8" (10mm) |
| Nail Size | 10-50mm, Head 2mm, Gauge 18 |
| Operating Air Pressure | 75 - 100psi |
| Model No | SA789 |
|---|---|
| Brand | Sealey |
| Inlet Size | 1/4"BSP |
| Maximum Pressure | 100psi |
| Nett Weight | 1.05kg |
| Model No | SA791 |
|---|---|
| Brand | Sealey |
| Inlet Size | 1/4"BSP |
| Maximum Pressure | 100psi |
| Nail Capacity | 10-50mm 18SWG |
| Model No | SA792 |
|---|---|
| Brand | Sealey |
| Inlet Size | 1/4"BSP |
| Maximum Pressure | 116psi |
| Nail Capacity | 10-50mm 18SWG |
| Model No | SA31 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium |
| Brand | Sealey |
| Model No | SA312 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium, Steel, Stainless Steel |
| Brand | Sealey |
| Length (L) | 225 mm |
|---|---|
| Pulling force | 1000 kg |
| Weight | 1.5 kg |
| Sound Power | 62 dB(A) |
| Sound Pressure | 73 dB(A) |
| Model No | SA314 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium, Steel, Stainless Steel |
| Brand | Sealey |
| Model No | GSA312 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium, Steel, Stainless Steel |
| Brand | Sealey |
| Model No | GSA314 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium, Steel, Stainless Steel |
| Brand | Generation |
| Height (H) | 115 mm |
|---|---|
| Length (L) | 277 mm |
| Width (W) | 290 mm |
| Max stroke length | 19 mm |
| Pulling force | 1260 kg |

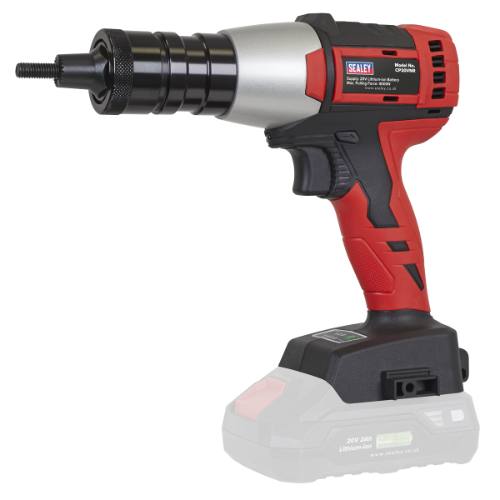

| Model No | CP20VNR |
|---|---|
| Battery | 20V 2Ah - 6Ah Lithium-ion (not included) |
| Blind Rivet Type | Aluminium |
| Brand | Sealey |
| Consumable Parts | CP20VBP2 - 2Ah Battery, CP20VBP4 - 4Ah Battery, CP20VBP6 - 6Ah Battery |
| Model No | CP20VNRKIT1 |
|---|---|
| Battery | 20V 2Ah Lithium-ion |
| Blind Rivet Type | Aluminium |
| Brand | Sealey |
| Maximum Pulling Force | 4000N |
| Model No | CP20VNRKIT |
|---|---|
| Battery | 20V 2 - 4Ah Lithium-ion |
| Blind Rivet Type | Aluminium |
| Brand | Sealey |
| Maximum Pulling Force | 4000N |
| Model No | SA316 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium, Steel, Stainless Steel, Structural |
| Brand | Premier |
| Height (H) | 130 mm |
|---|---|
| Length (L) | 325 mm |
| Width (W) | 350 mm |
| Max stroke length | 27 mm |
| Pulling force | 2100 kg |
| Model No | SA317 |
|---|---|
| Air Consumption | 4.5cfm |
| Brand | Premier |
| Inlet Size | 1/4"BSP |
| Mandrel Sizes | M3, M4, M5, M6, M8, M10, M12 |
| Height (H) | 84 mm |
|---|---|
| Length (L) | 262 mm |
| Moving plunger max. travel | 14.3 mm |
| Weight | 2.04 kg |
| Jaw type | C-short |
| Height (H) | 92 mm |
|---|---|
| Length (L) | 233 mm |
| Moving plunger max. travel | 15.9 mm |
| Weight | 1.7 kg |
| Jaw type | Aligator short |
| Height (H) | 115 mm |
|---|---|
| Length (L) | 280 mm |
| Width (W) | 280 mm |
| Max stroke length | 7 mm |
| Weight | 2.2 kg |
| Height (H) | 134 mm |
|---|---|
| Length (L) | 273 mm |
| Moving plunger max. travel | 19.1 mm |
| Weight | 2.1 kg |
| Jaw type | Aligator long |
| Height (H) | 84 mm |
|---|---|
| Length (L) | 355 mm |
| Moving plunger max. travel | 14.3 mm |
| Weight | 2.49 kg |
| Jaw type | C-short |
| Height (H) | 134 mm |
|---|---|
| Length (L) | 343 mm |
| Moving plunger max. travel | 19.5 mm |
| Weight | 2.5 kg |
| Jaw type | Aligator long |

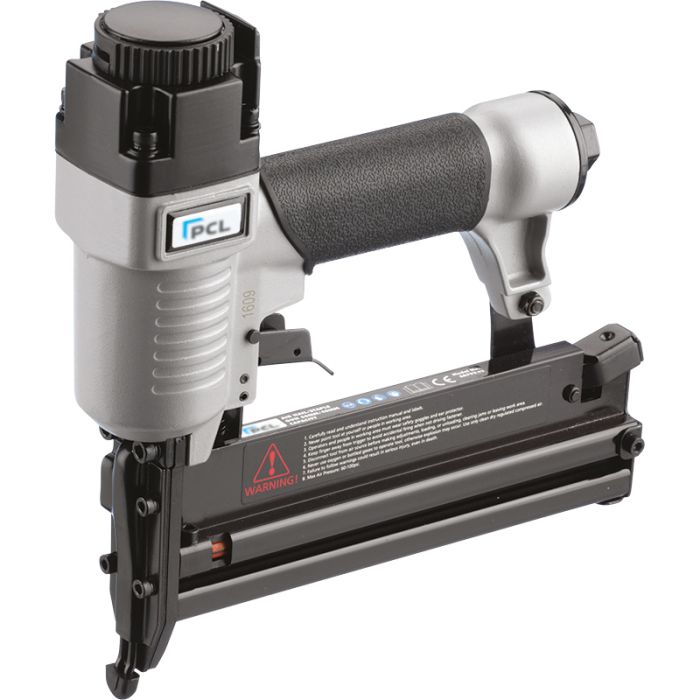

| Brand | PCL |
|---|---|
| Nail Capacity | 10-50mm 18SWG |
| Staple Capacity | 10-40mm 18SWG |
| Operating Pressure | 60-116 psi |
| Inlet Size | Rp 1/4 |
| Brand | PCL |
|---|---|
| Shipping Weight (kg) | 1.794 |
| Product Weight (Kg) | 1.49 |
| Air Tool Type | Air Hammer |
| Air Consumption | 4 cfm / 113.2 l/min |
| Height (H) | 92 mm |
|---|---|
| Length (L) | 284 mm |
| Moving plunger max. travel | 15.9 mm |
| Weight | 2.2 kg |
| Jaw type | Aligator short |
