Product Number: SA316

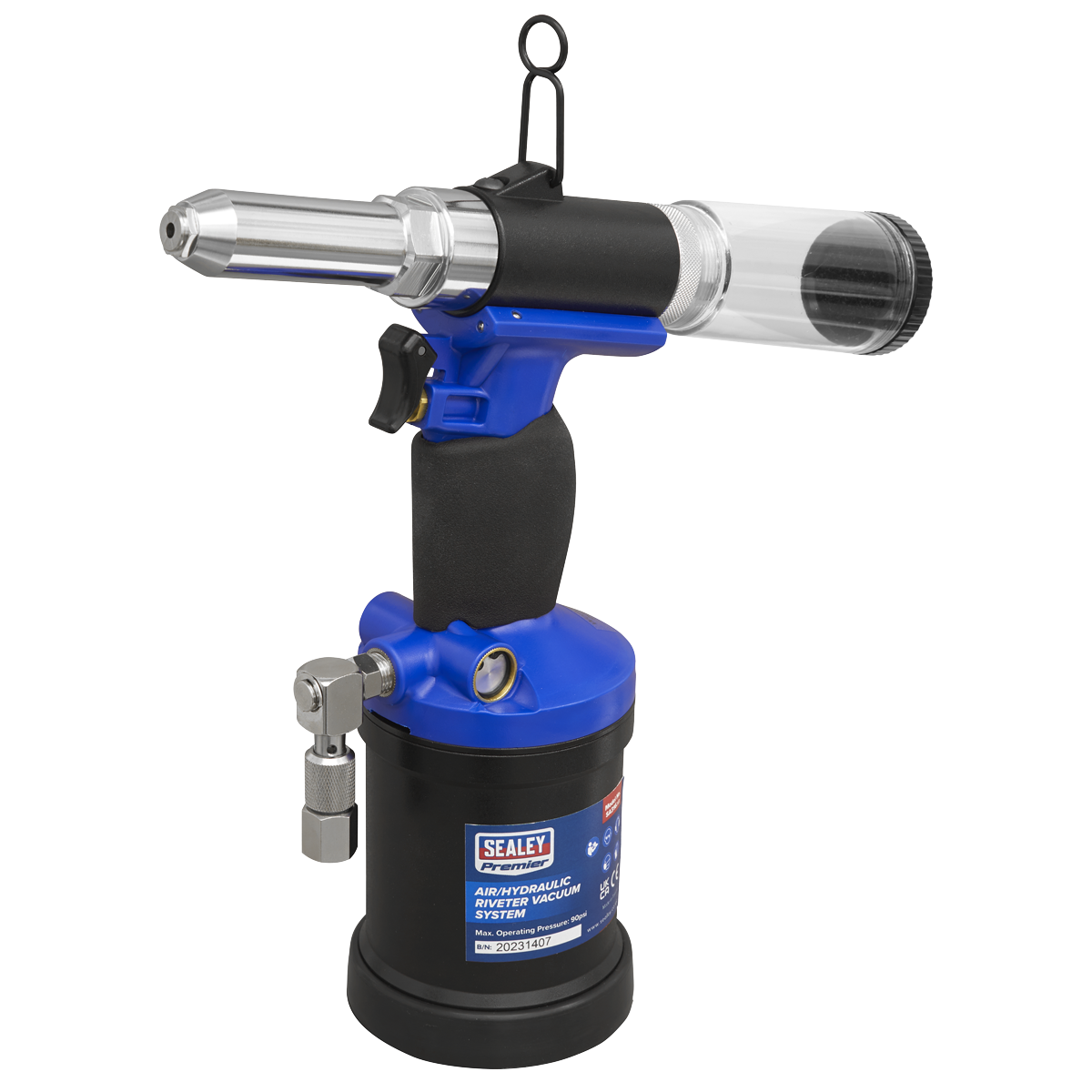

Standard pneumatic riveters often struggle with structural rivets or larger-diameter fixings, leaving professionals needing a more capable solution. The Sealey SA316 is a powerful, extra-heavy-duty air/hydraulic riveter designed for aluminium, steel, stainless steel, and structural rivets from 3/16" to 1/4". The trigger-operated mechanism drives a hardened steel jaw assembly, while the air-actuated vacuum rivet shaft collector captures spent mandrels automatically, keeping your work area clear. A resilient grip provides added comfort during repetitive use, and a hanging loop allows the tool to be used with a balancer. Air consumption is 4cfm and the operating pressure is 90psi via a 1/4"BSP inlet. Noise power is rated at 82dB(A) and noise pressure at 71dB(A). Supplied with three riveting nozzles (3/16"/4.8mm, 7/32"/5.6mm, 1/4"/6.4mm), two spanners, and an oil can. Backed by a 3 Year Guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SA316 |
|---|---|
| Air Consumption | 4cfm |
| Air Inlet Size | 1/4"BSP |
| Blind Rivet Type | Aluminium, Steel, Stainless Steel, Structural |
| Brand | Premier |
| Nett Weight | 1.9kg |
| Noise Power/Pressure | 82/71dB(A) |
| Nozzle Size(s) | 3/16"(4.8mm), 7/32"(5.6mm), 1/4"(6.4mm) |
| Operating Pressure | 90psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SA314 Air/Hydraulic Riveter 1/4" for Aluminium Steel & Stainless Steel Rivets
£171.51
£168.08
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SA31 | 8941098860 | 8941098820 | SA314 | APT690 | 55740 |
| Type | Riveter | Riveter | Riveter | Riveter | ||
| Brand | Sealey | Sealey | PCL | |||
| Drive Size (Inch) | 1/4 | 1/4 | 3/8 | |||
| Length (mm) | 115 | 225 | 10 | |||
| Max Pressure (psi) | 90 | 90 | ||||
| Weight (kg) | 1.3 | 1.7 | 1.5 | 1.6 | 66 | |
A. The SA316 is suitable for aluminium, steel, stainless steel, and structural rivets from 3/16" to 1/4".
A. Three nozzles are supplied: 3/16" (4.8mm), 7/32" (5.6mm), and 1/4" (6.4mm).
A. The tool uses an air-actuated vacuum rivet shaft collector to capture spent mandrels automatically during use.
A. The SA316 operates at 90psi.
A. The SA316 requires 4cfm air consumption.
A. The air inlet is 1/4"BSP.

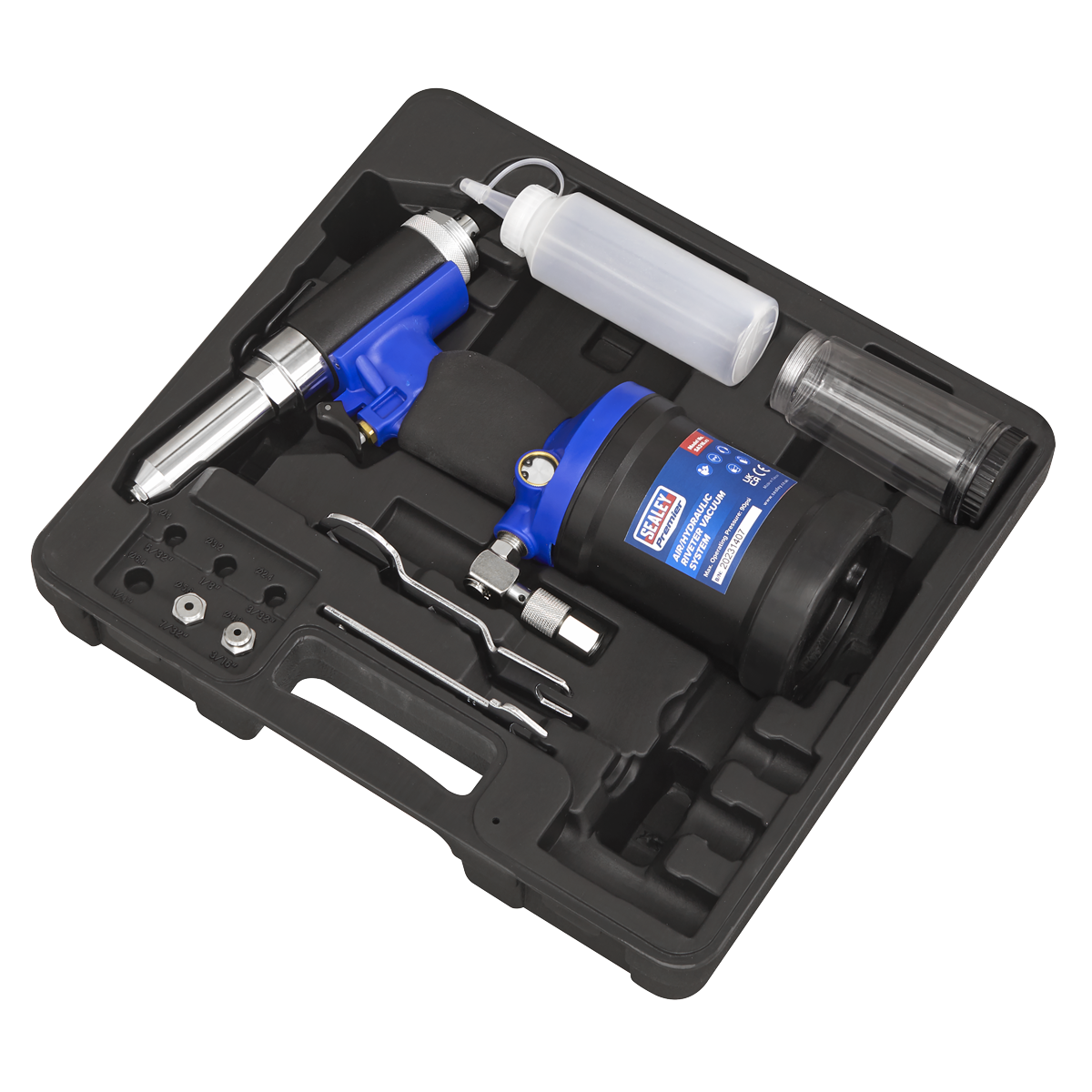

A. The SA316 is supplied with three riveting nozzles, two spanners, and an oil can.
A. Yes, the SA316 is backed by a 3 Year Guarantee.
A. Noise power is rated at 82dB(A) and noise pressure at 71dB(A).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
