Product Number: 14609

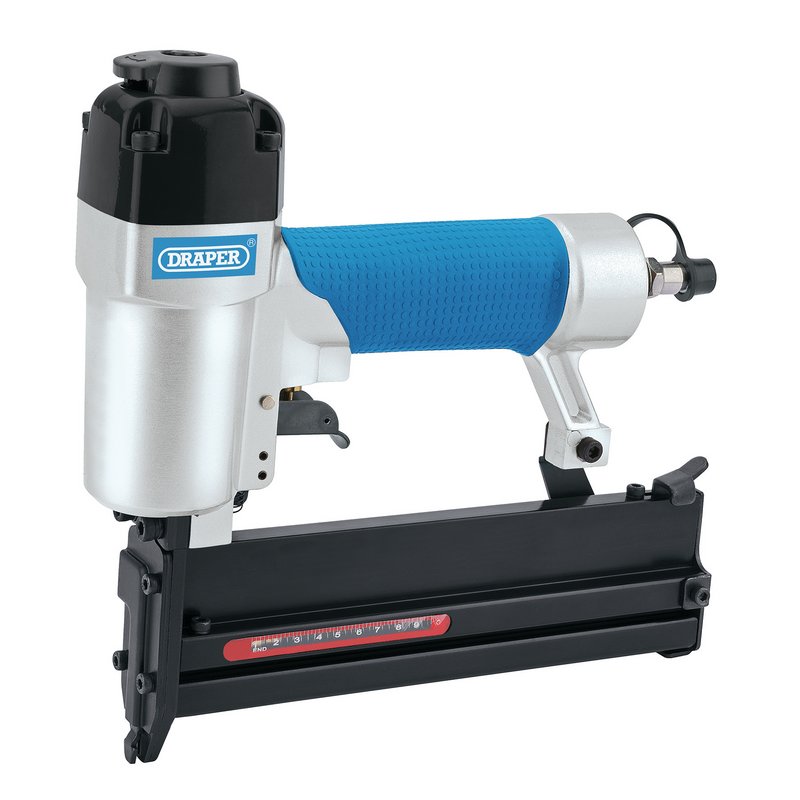

Workshop fastening tasks demand a reliable tool capable of handling both nails and staples with consistent accuracy. The Draper 14609 Air Stapler/Nailer addresses this with a quality cast aluminium housing that keeps the tool lightweight at 1.45 kg whilst providing the rigidity required for repetitive professional use. A soft grip handle and integrated nail holder contribute to comfortable, controlled operation across extended working sessions. Safety is built into the design through a dedicated safety bump mechanism and safety latch mechanism, both of which work to prevent accidental firing — a critical consideration in busy workshop environments. The tool accepts gauge 18 nails from 10 to 50 mm (head 2 mm) and gauge 18 staples from 12 to 40 mm (crown 5.7 mm, shank width 1.25 mm, thickness 1.05 mm), making it suitable for a broad range of timber joinery, upholstery, and light fabrication applications. Operating on an air pressure of 75 to 100 psi, the stapler/nailer has an average air consumption of 0.28 cfm (0.8 L/min), requiring a minimum hose size of 3/8 inch (10 mm) and a 1/4 inch BSP air inlet. Vibration level is rated at 2.8 m/s². The unit is supplied complete with a heavy-duty carrying case for secure storage and transport between work sites.
Air stapler/nailer, with quality cast aluminium housing. Attached with a nail holder and soft grip handle. Fitted with a safety bump mechanism that helps prevent accidental firing. Suitable for nails 10 - 50mm and staples 12 - 40mm long. Supplied complete with carrying case.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 0.28cfm (0.8L/min) |
| Min Hose Size | 3/8" (10mm) |
| Nail Size | 10-50mm, Head 2mm, Gauge 18 |
| Operating Air Pressure | 75 - 100psi |
| Shank Size | Width 1.25mm, Thickness 1.05mm |
| Staple Size | 12-40mm, Crown 5.7mm, Gauge 18 |
| Vibration Level | 2.8m/s2 |
| Weight | 1.45kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 646 D20 20V Nailer/Stapler, 1 x 2.0Ah Battery, 1 x Charger
£143.32
£140.51
2% OFF
Free delivery in UK Mainland
|
Sealey CP20VNGKIT1 Cordless Nail/Staple Gun 18G 20V 2Ah SV20 Kit
£185.09
£181.39
2% OFF
Free delivery in UK Mainland
|
Sealey CP20VNG Cordless Nail & Staple Gun 18G 20V SV20 Series - Body Only
£153.68
£150.61
2% OFF
Free delivery in UK Mainland
|
Sealey CP20VNGKIT Cordless Staple/Nail Gun Kit 18G 20V SV20 Series - 2 Batteries
£234.88
£230.18
2% OFF
Free delivery in UK Mainland
|
Sealey GSA314 Air Riveter 1/4" Aluminium Steel & Stainless Steel Rivets
£196.03
£192.11
2% OFF
Free delivery in UK Mainland
|
Sealey GSA312 Air Riveter for Aluminium, Steel & Stainless Steel Rivets up to 3/16"
£152.46
£149.41
2% OFF
Free delivery in UK Mainland
|
Sealey SA314 Air/Hydraulic Riveter 1/4" for Aluminium Steel & Stainless Steel Rivets
£171.51
£168.08
2% OFF
Free delivery in UK Mainland
|
||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06771 | 00646 | 14607 | 55740 | 83659 | SA791 | SA31 | SA792 | SA316 | CP20VNGKIT1 | CP20VNG | CP20VNGKIT | GSA314 | GSA312 | SA314 |
| Type | Batteries | Nailer | Riveter | Riveter | Cables & Plugs | Cables & Plugs | Riveter | Riveter | Riveter | ||||||
| Brand | Sealey | Sealey | Sealey | Premier | Generation | Sealey | Sealey | ||||||||
| Capacity (L) | 40 | ||||||||||||||
| Drive Size (Inch) | 1 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | ||||||
| Length (mm) | 50 | 32 | 50 | 50 | 50 | ||||||||||
| Max Pressure (psi) | 58 | 100 | 100 | 90 | 116 | 90 | 90 | 90 | 90 | ||||||
| Model No | 20 | 20 | 20 | ||||||||||||
| Weight (kg) | 66 | 1.4 | 66 | 58 | 25 | 1.3 | 68 | 1.9 | 2.6 | 1.6 | 1.3 | 1.6 | |||
| Show More | |||||||||||||||
A. The Draper 14609 accepts gauge 18 nails from 10 to 50 mm (head 2 mm) and gauge 18 staples from 12 to 40 mm (crown 5.7 mm, shank width 1.25 mm, shank thickness 1.05 mm).
A. The tool requires an operating air pressure of 75 to 100 psi, with a minimum hose size of 3/8 inch (10 mm) and a 1/4 inch BSP air inlet.
A. Average air consumption is 0.28 cfm (0.8 L/min).
A. Yes. The tool is fitted with both a safety bump mechanism and a safety latch mechanism, both designed to help prevent accidental firing during use.
A. The tool weighs 1.45 kg and is supplied complete with a heavy-duty carrying case for storage and transport.
A. The vibration level is rated at 2.8 m/s².
