Product Number: RSM322-60-60
Variations

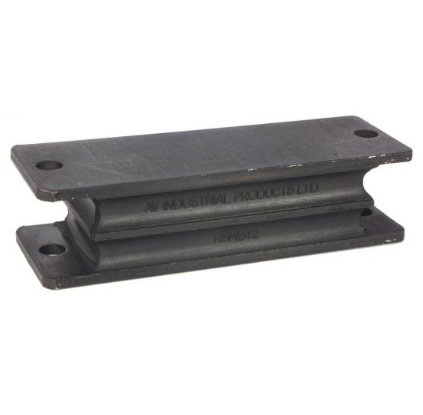

Balanced vibration control sits central to the RSM322-60-60, a 110 x 57 mm rectangular sandwich mount rated at 60 Shore A, a medium hardness that positions this mount squarely in the general-purpose centre of the range, handling a rated load of 375 kg with a deflection rate of 3 mm/kg. Designed for applications where neither maximum isolation nor maximum rigidity is the sole priority, this mount delivers a capable equilibrium between movement absorption and structural support. Rubber-to-metal bonded construction forms the core of this mount's durability. The 60 Shore A compound can be loaded in shear, compression, or a combination of both, giving engineers flexibility in how the element is deployed across a machine frame or base structure. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for demanding environments. With principal dimensions of A 110 mm, B 57 mm, C 43 mm, D 64 mm, E 89 mm, F 11 mm and G 5 mm, the RSM322-60-60 suits mid-load machinery in sectors including power generation, agriculture, marine, construction and off-highway, automotive, railway and mass transit, and military and defence applications. Its load capacity and measured deflection make it a reliable choice for equipment where controlled movement is as important as vibration attenuation, improving machinery lifespan, protecting surrounding structures, and enhancing operator comfort.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | UU50-70*-70 | UU50-60*-60 | UU50-40*-40 | UU20-70*-70 | UU20-60*-60 | UU20-40*-40 | RSM242-45-45 | RSM242-70-70 | RSM284-45-45 | RSM284-70-70 | RSM322-45-45 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting | Mounting | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 90x50mm | 90x50mm | 90x50mm | 90x20mm | 90x20mm | 90x20mm | 127x57mm | 110x57mm | |||
| Mount Type | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | Rectangular Sandwich Mountings | Rectangular Sandwich Mountings | Rectangular Sandwich Mountings | Rectangular Sandwich Mountings | Rectangular Sandwich Mountings |
A. The RSM322-60-60 is rated at a load capacity of 375 kg with a deflection rate of 3 mm/kg, placing it firmly in the mid-load general-purpose band of the rectangular sandwich mount range.
A. The mount measures A 110 mm, B 57 mm, C 43 mm, D 64 mm, E 89 mm, F 11 mm and G 5 mm.
A. A 60 Shore A hardness provides a balance of vibration isolation and load-bearing support. The softer 45 Shore A grade (RSM322-45) gives greater deflection and better isolation at lower loads, while the firmer 70 Shore A grade (RSM322-70) carries higher loads with less movement. The 60 Shore A grade suits mid-load applications where both control of vibration and structural rigidity are needed.
A. The RSM322-60-60 may be loaded in shear, compression, or a combination of both, providing flexibility for different mounting orientations and machine configurations.
A. Source data identifies suitable industries as construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional or custom sizes are available on request.
A. Related variants include the RSM242 series (RSM242-45, RSM242-60, RSM242-70) and the RSM284 series (RSM284-45, RSM284-60, RSM284-70), as well as the alternative Shore grades of this size: RSM322-45 and RSM322-70.
