Product Number: RSM322-45-45
Variations

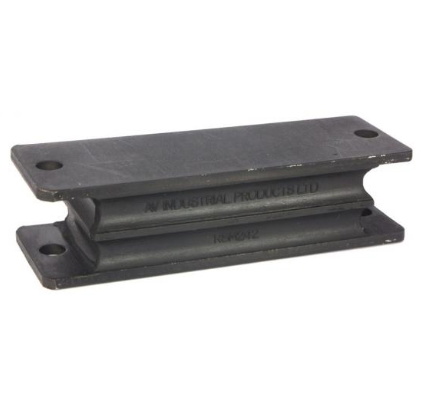

Where vibration isolation takes priority over load restraint, the RSM322-45-45 Rectangular Sandwich Mount delivers maximum compliance through its soft 45 Shore A rubber element. At 110 mm × 57 mm (A × B dimensions), this is the largest geometry in the rectangular sandwich mount range, and at 45 Shore A it operates at the softer end of the hardness band, yielding a rated static load capacity of 190 kg with a deflection rate of 3 mm per kg. That combination of generous movement under load and high receptivity to low-frequency excitation makes it the right choice wherever sensitive equipment or lighter structural assemblies need decoupling from their mounting surfaces. Rubber-to-metal bonded construction is used throughout, ensuring a secure, durable union between the elastomer and the steel faces. The mount may be loaded in shear, compression, or a combination of both, giving the installer flexibility to orient the unit to match the primary direction of vibration or shock in the application. Dimensional references are: A 110 mm, B 57 mm, C 43 mm, D 64 mm, E 89 mm, F 11 mm, G 5 mm. The RSM322-45-45 is suited to instrument and general mounting duties across construction and off-highway plant, agricultural machinery, power generation equipment, marine installations, railway and mass transit systems, automotive applications, and military and defence platforms.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | UU50-70*-70 | UU50-60*-60 | UU50-40*-40 | UU20-70*-70 | UU20-60*-60 | UU20-40*-40 |
| Thread Size | M10 | |||||
| Mount Type | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings |
| Size Band | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm |
| Hardness Shore | 70 | 60 | 40 | 70 | 60 | 40 |
A. The RSM322-45-45 is rated to a static load of 190 kg and has a deflection rate of 3 mm per kg, reflecting the high compliance characteristic of its soft 45 Shore A rubber element.
A. The principal dimensions are: A 110 mm, B 57 mm, C 43 mm, D 64 mm, E 89 mm, F 11 mm, and G 5 mm.
A. A softer 45 Shore A rubber yields greater deflection under load and provides better isolation, particularly at lower excitation frequencies. It is the preferred grade where protecting sensitive instruments or light equipment from vibration is the primary concern, rather than maximising load capacity or minimising movement.
A. The RSM322-45-45 may be loaded in shear, compression, or a combination of both, allowing the installer to orient the mount to suit the primary direction of vibration or shock in the specific application.
A. The mount is designed for instrument and general mounting duties across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications — particularly where instruments, electronics, and light equipment require isolation from low-frequency vibration.
A. Yes. The same 110 mm × 57 mm footprint is available in 60 Shore A (RSM322-60) and 70 Shore A (RSM322-70) for higher-load, lower-deflection duties. Smaller formats are offered in the 242-series (RSM242-45, RSM242-60, RSM242-70) and 284-series (RSM284-45, RSM284-60, RSM284-70).
A. Yes — stainless steel metals, oil-resistant rubber, and high-temperature rubber compounds are available on request, as are additional and custom sizes.
