Product Number: RSM284-45-45
Variations

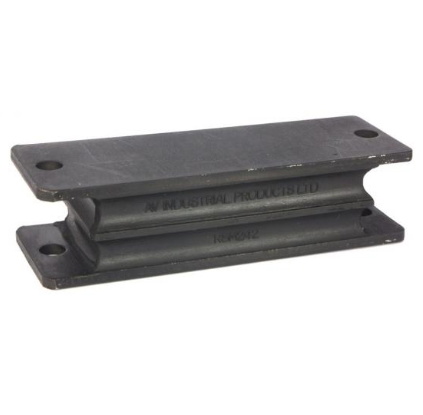

Where maximum vibration isolation takes priority over load restraint, the RSM284-45-45 rectangular sandwich mount delivers: a 45 Shore A rubber grade engineered to absorb and attenuate low-frequency vibration whilst allowing the greatest deflection within this geometry's range. With a rated load capacity of 300 kg and a deflection rate of 3 mm/kg, this soft-grade mount is purposefully specified for lighter or sensitive equipment where movement under load is an asset rather than a liability, decoupling the mounted item from structure-borne vibration more effectively than firmer grades can achieve at equivalent loads. Constructed using rubber-to-metal bonding throughout, the RSM284-45-45 integrates a 127 mm length (A), 57 mm width (B) and 43 mm height (C) rubber sandwich element with metal end plates dimensioned at 84 mm (D) and 108 mm (E), with an 11 mm plate thickness (F) and 5 mm rubber bond depth (G). This bonded construction ensures the rubber element remains captive under all loading conditions. The mount may be loaded in shear, compression or a combination of both, giving installation engineers flexibility in orientation to suit the equipment and structure in question. As part of the instrument and general mountings family, the RSM284-45-45 is suited to instruments, electronics and light equipment across many industries, including marine, power generation, agricultural machinery, rail and mass transit applications, and automotive and off-highway plant.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

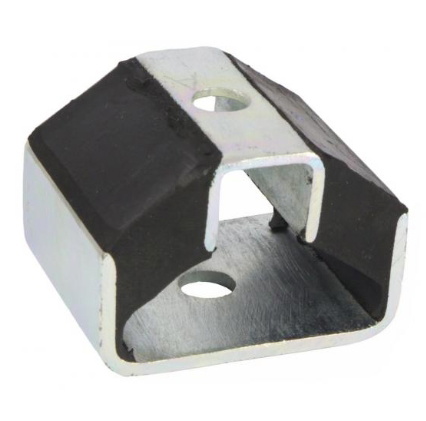

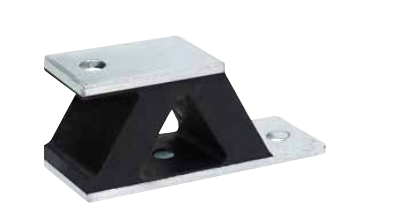

| PRODUCT NUMBER | V3630-55-55 | UU1492-50-50 | UU1479-50-50 | UU1479-40-40 | TMS08100-65-65 | TMS08065-55-55 |
| Thread Size | M8 | M8 | ||||
| Mount Type | W & V Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | Turret Mountings | Turret Mountings |
| Size Band | 126mm+ | 126mm+ | 126mm+ | 126mm+ | 126mm+ | 126mm+ |
| Hardness Shore | 55 | 50 | 50 | 40 | 65 | 55 |
A. The RSM284-45-45 is rated to 300 kg with a deflection rate of 3 mm/kg. The soft 45 Shore A rubber grade provides the greatest deflection within this rectangular geometry's range, prioritising vibration isolation over load restraint.
A. The mount measures 127 mm in length (A), 57 mm in width (B) and 43 mm in height (C). The metal end plate dimensions are 84 mm (D) and 108 mm (E), with an 11 mm plate thickness (F) and a 5 mm rubber bond depth (G).
A. The mount may be loaded in shear, compression or a combination of both, giving installation engineers flexibility in orientation to suit the equipment and supporting structure.
A. The soft 45 Shore A grade is specified for instruments, electronics and lighter equipment where low-frequency vibration isolation is the primary objective. Industries served include marine, power generation, agriculture, rail and mass transit, automotive, and construction and off-highway sectors.
A. Softer rubber grades give greater deflection under load and achieve better isolation at lower load levels. The 45 Shore A grade is the correct selection where isolation efficiency and operator comfort take precedence over high-load restraint.
A. Yes. The same 127 mm geometry is available as RSM284-60 (60 Shore A) and RSM284-70 (70 Shore A). Smaller sizes are available as RSM242-45, RSM242-60 and RSM242-70, and larger sizes as RSM322-45, RSM322-60 and RSM322-70.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
