Product Number: IOS30637266
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS15.5553016 | 15.5 | 55 | 30 | 16 |
| IOS0989 | 28.57 | 57.15 | 85.73 | 88.9 |
| IOS30606068 | 30 | 60 | 60 | 68 |
| IOS40624042 | 40 | 62 | 40 | 42 |
| IOS36626571 | 36 | 62 | 65 | 71 |
| IOS38648088 | 38 | 64 | 80 | 88 |
| IOS30656070 | 30 | 65 | 60 | 70 |
| IOS40658088 | 40 | 65 | 80 | 88 |
| IOS35655060 | 35 | 65 | 50 | 60 |
| IOS407112115 | 40 | 70 | 112 | 115 |
Sized for mainstream general-machinery mounting at moderate dynamic loads, the IOS30637266 Inner-Outer-Sleeve Bush delivers rubber-to-metal bonded construction across its 30 mm inner bore (A), 63 mm outer diameter (B), 72 mm overall length (C) and 66 mm rubber element dimension (D). Sitting in the upper range of the IOS eccentric and spherical bush family, this bush is engineered for applications where consistent deflection control and structural protection must be sustained over a prolonged service life without maintenance intervention. The rubber element is bonded directly between an inner metal sleeve and an outer metal sleeve, a construction that provides high durability under dynamic loads whilst eliminating any requirement for lubrication. Mounts of this type may be loaded in shear, compression, or a combination of both, giving engineers flexibility when specifying for pivot bearings, mechanical linkages, or cab mounting arrangements. The bonded assembly protects surrounding structures and improves operator comfort by absorbing vibration and shock before it can propagate through the machine frame. The IOS30637266 is at home across a broad spread of demanding sectors. Cab mounts on construction and off-highway equipment, engine mounts in agricultural and power-generation machinery, and suspension pivot points in railway and mass-transit vehicles all call upon the dimensional and load characteristics this bush provides. Marine, military and defence applications requiring maintenance-free reliability under dynamic excitation are equally well served. Where standard materials are insufficient, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, alongside additional custom sizes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 30mm |
|---|---|
| Outer Diameter (ØB) | 63mm |
| Rubber Body Length (C) | 72mm |
| Overall Length (D) | 66mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

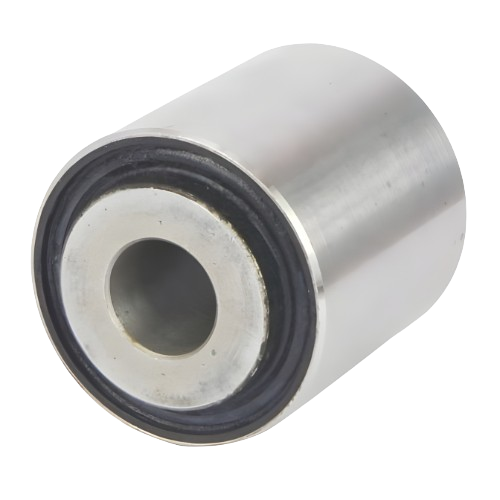

Suspension Bush - Inner Dia 30mm, Outer Dia 63mm, L 72mm - IOS30637266
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SB2106 | TB12 | TB25 | TB12-40 | TB12-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 28.6mm | 31.8mm | 27mm | 27.2mm | 27.2mm |
| Deflection | 1.4 | 0.7 | 1.4 | 1.4 | |
| Overall Height | 27.2mm | 27.2mm | |||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The IOS30637266 has an inner bore (A) of 30 mm, an outer diameter (B) of 63 mm, an overall length (C) of 72 mm, and a rubber element dimension (D) of 66 mm.
A. The rubber-to-metal bonded construction allows this bush to be loaded in shear, compression, or a combination of both, giving engineers flexibility across a range of mounting configurations.
A. No. The bonded rubber-to-metal design is maintenance free and requires no lubrication throughout its service life.
A. This bush is suitable for pivot bearings, mechanical linkages, cab mounts and engine mounts across construction and off-highway, agricultural, power-generation, marine, railway and mass-transit, military and defence, and automotive sectors.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related sizes include the IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025, and IOS10273840. Each listing carries its own dimensional specification to assist with selection.
A. The bonded rubber element absorbs vibration and shock loads, protecting surrounding structures and improving operator comfort by reducing the dynamic forces transmitted through the machine frame.
