Product Number: IOS36626571
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS1005 | 28.58 | 54.6 | 114 | 123.8 |
| IOS15.5553016 | 15.5 | 55 | 30 | 16 |
| IOS0989 | 28.57 | 57.15 | 85.73 | 88.9 |
| IOS30606068 | 30 | 60 | 60 | 68 |
| IOS40624042 | 40 | 62 | 40 | 42 |
| IOS30637266 | 30 | 63 | 72 | 66 |
| IOS38648088 | 38 | 64 | 80 | 88 |
| IOS30656070 | 30 | 65 | 60 | 70 |
| IOS40658088 | 40 | 65 | 80 | 88 |
| IOS35655060 | 35 | 65 | 50 | 60 |
Sitting at the largest end of the standard A-dimension band, this 36mm inner-outer-sleeve bush (IOS36626571) is engineered for mainstream general-machinery mounting where moderate dynamic loads demand reliable, long-service rubber-to-metal bonded performance. With an inner bore of 36 mm, outer sleeve diameter of 62 mm, body length of 65 mm and an overall dimension D of 71 mm, the component is dimensioned to suit demanding pivot-bearing and mechanical-linkage applications where structural envelope space is at a premium. The rubber-bonded construction bonds elastomer directly between precision metal inner and outer sleeves, delivering high durability under dynamic loads across the full service life of the assembly. The design requires no lubrication and is entirely maintenance free, reducing downtime and total ownership cost in high-cycle installations. Mounts in this range may be loaded in shear, compression or a combination of both, making the bush adaptable to the varied force directions encountered in heavy-duty mounting points. At this 36 mm bore size the bush finds application across construction and off-highway equipment, agricultural machinery, power generation plant and marine installations, as well as railway and mass transit assemblies. Its rubber-to-metal bond simultaneously absorbs vibration, protects surrounding structures from fatigue, and improves operator comfort, three criteria that matter most at the larger, load-carrying end of the standard band. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for demanding environments. This product is one of several inner-outer-sleeve bush sizes in the IOS range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 36mm |
|---|---|
| Outer Diameter (ØB) | 62mm |
| Rubber Body Length (C) | 65mm |
| Overall Length (D) | 71mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

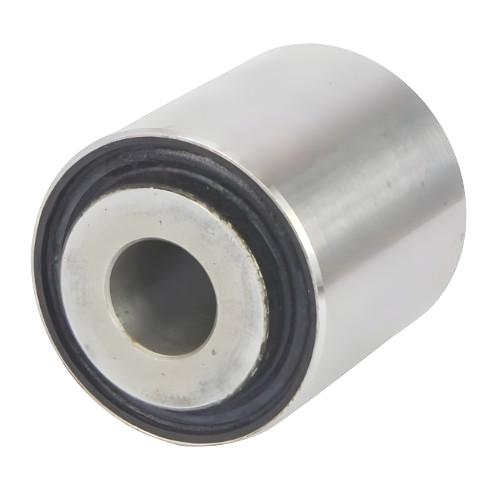

Suspension Bush - Inner Dia 36mm, Outer Dia 62mm, L 65mm - IOS36626571
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FB00-45 | FB00-60 | FB00-75 | TBCBA20-75 | TB50-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 36mm | 36mm | 36mm | 36.8mm | 35mm |
| Deflection | 2.5 | 1.6 | |||
| Overall Height | 36.8mm | 35mm | |||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The IOS36626571 has the following dimensions: A (inner bore) 36 mm, B (outer sleeve diameter) 62 mm, C (body length) 65 mm and D (overall dimension) 71 mm.
A. The rubber-to-metal bonded construction allows the bush to be loaded in shear, compression or a combination of both, making it suitable for the varied force directions found in general-machinery mounting applications.
A. No. The inner-outer-sleeve bush is maintenance free and requires no lubrication throughout its service life.
A. Applications include pivot bearings, mechanical linkages, engine mounts and cab mounts. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Related sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
