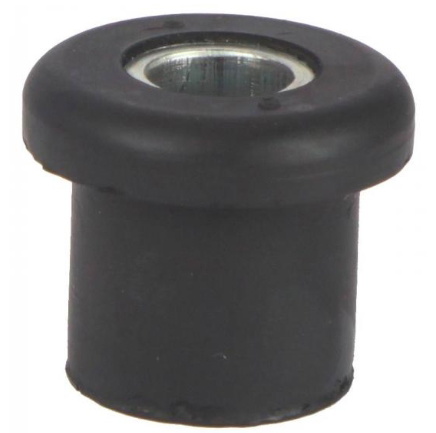

Rated at a maximum radial load of 50 kg with a deflection rate of 0.7 kg/mm, the TB25 is the smallest T-Bush in this range and is sized to suit applications where compact geometry and precise load management matter most. With a body diameter (A) of 27 mm, inner bore (C) of 10 mm, outer sleeve length (B) of 17.5 mm, inner sleeve length (D) of 20 mm, and a flange dimension (F) of 6 mm, it occupies minimal envelope whilst delivering the structural integrity expected of rubber-to-metal bonded construction. The TB25 follows the inner-outer-sleeve principle: natural rubber is bonded under pressure between a machined inner sleeve and a formed outer sleeve, creating a unit that handles dynamic loads in shear, compression, or a combination of both without any supplementary fastening compounds. The bonded construction requires no lubrication and is maintenance free throughout its service life, reducing workshop intervention and lowering the total cost of ownership across high-cycle applications. At the lighter end of the load band, the TB25 is well suited to pivot bearings and mechanical linkages where controlled articulation and vibration isolation are priorities, as well as cab mounts and engine mounts on agricultural machinery, off-road vehicles, and compact construction plant. The rubber-to-metal bond improves machinery lifespan, protects surrounding structures from transmitted vibration, and contributes to improved operator comfort in ride-critical installations. It also finds application in marine, railway and mass transit, and military and defence environments. The TB25 is one of nine variants in this T-Bush range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 27 |
|---|---|
| Width / dimension B (mm) | 17.5 |
| Height / dimension C (mm) | 10 |
| Outer diameter D (mm) | 20 |
| Fixing hole / dimension F (mm) | 6 |
| Max load (kg) | 50 |
| Deflection (mm) | 0.7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB12-40 | TB12-60 | IOS2847110116 | IOS0989 | IOS1005 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 27.2mm | 27.2mm | 28mm | 28.57mm | 28.58mm |
| Deflection | 1.4 | 1.4 | |||
| Overall Height | 27.2mm | 27.2mm | |||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The TB25 has a body diameter (A) of 27 mm, outer sleeve length (B) of 17.5 mm, inner bore (C) of 10 mm, inner sleeve length (D) of 20 mm, and a flange dimension (F) of 6 mm.
A. The TB25 has a maximum radial load rating of 50 kg and a deflection rate of 0.7 kg/mm.
A. The TB25 is suited to pivot bearings, mechanical linkages, cab mounts, engine mounts, off-road vehicles, agricultural machinery, and compact construction plant. It also serves marine, railway, mass transit, and military and defence applications.
A. No. The rubber-to-metal bonded construction of the TB25 requires no lubrication and is maintenance free throughout its service life.
A. The TB25 may be loaded in shear, compression, or a combination of both, depending on the installation.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. Additional and custom sizes can also be sourced — please enquire directly.
A. The range includes TB12, TB45, TB50, TB60, TB65, TB75, TBCBA20, and TBCBA24, covering a variety of load capacities and geometric configurations.
