Product Number: SB2201_C

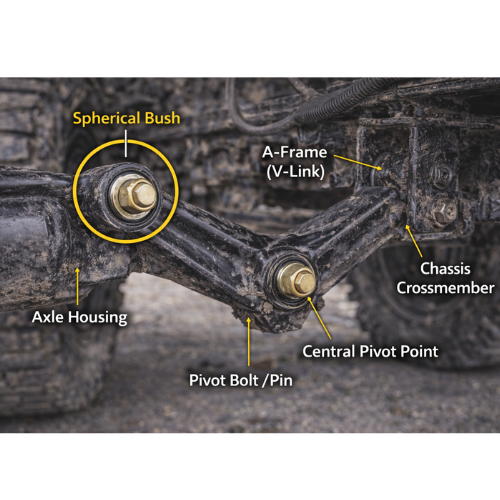

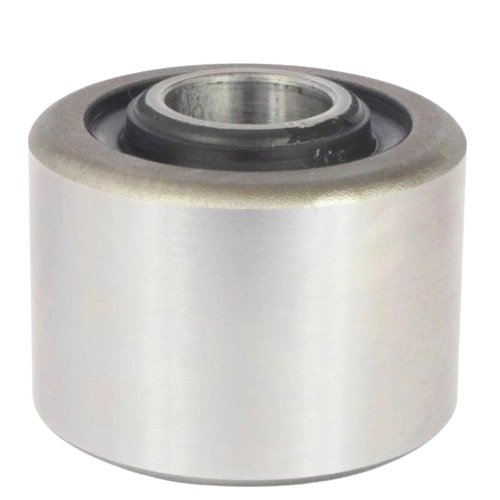

This listing is the C designation of the SB2201 spherical bush. A rubber-to-metal bonded bush with a 25.4 mm inner diameter and 66.7 mm outer diameter for suspension and linkage points.
Fit is by dimensions - match the inner and outer diameters and lengths in this listing's technical specifications against the bush being replaced. The C designation is a variant code on the base part; confirm the required designation against your existing bush before ordering. Rubber bushes of this type isolate vibration and allow controlled movement at suspension and pivot points while protecting the surrounding metalwork. The bonded construction gives a durable interface between the rubber and its sleeves, resisting the push-out and rotation loads a suspension point sees. Sizes across the range are listed by inner diameter, outer diameter and length, so replacement is a matter of matching three measurements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (A) | 25.4 mm |
|---|---|
| Outer Diameter (B) | 66.7 mm |
| Rubber Body Length © | 47.6 mm |
| Overall Length (D) | 54 mm |
| Axial Load Capacity (Pz) | 34 kN |
| Warranty | 6 months |
| Product Dimension | A-Frame Bush |
|---|---|
|  |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TB25-60 | TB12-40 | TB12-60 | TB45-45 | TB45-60 | TB50-60 | TB50-75 | TB65-60 | TB75 | TBCBA20-75 | TBCBA24 | SB1316 | SB2166 | SB2201 | SB2106 |
| Type | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush |
| Size | 17.5mm | 27.2mm | 27.2mm | 25mm | 25mm | 35mm | 35mm | 44mm | 50.8mm | 36.8mm | 38.1mm | 25.4mm | 25.4mm | 25.4mm | 28.6mm |
| Deflection | 0.7 | 1.4 | 1.4 | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2.16 | 2.5 | 2.5 | ||||
| Overall Height | 17.5mm | 27.2mm | 27.2mm | 25mm | 25mm | 35mm | 35mm | 44mm | 50.8mm | 36.8mm | 38.1mm | ||||
| Size Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. Fit is dimensional - 25.4 mm inner and 66.7 mm outer diameter, matched against the bush you are replacing. Search PartsForMachines by the AV part number or WhatsApp our team to confirm.
A. 25.4 mm inner diameter and 66.7 mm outer diameter; the full dimensional set is in this listing's technical specifications.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
