Product Number: ECC1165-45_C

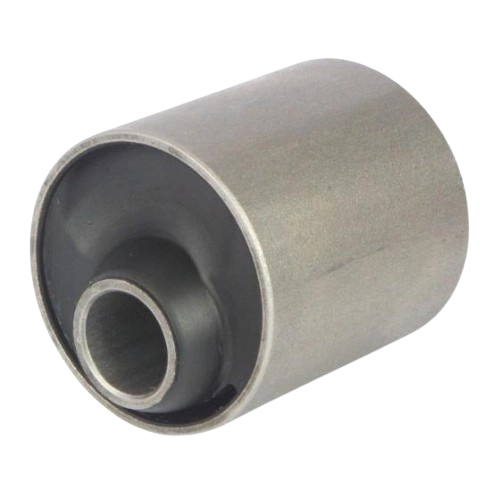

This listing is the C designation of the ECC1165-45 eccentric bush. Used in cab mountings on heavy commercial and off-highway vehicles. The bush has a 25.4 mm inner diameter and 88.9 mm outer diameter, with a 66.7 mm rubber body inside a 79.4 mm overall length.
Rated figures for the ECC1165-45 at this hardness are 185 kg maximum load at 3.8 mm deflection. Match your existing cab mount bush by these dimensions before ordering; the C designation is a variant code on the base part - confirm the required designation against your vehicle's existing bush. Rubber bushes of this type isolate vibration and allow controlled movement at suspension and pivot points while protecting the surrounding metalwork. The bonded construction gives a durable interface between the rubber and its sleeves, resisting the push-out and rotation loads a suspension point sees.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (d) | 25.4 mm |
|---|---|
| Outer Diameter (D) | 88.9 mm |
| Rubber Body Length (A) | 66.7 mm |
| Overall Length (B) | 79.4 mm |
| Sleeve Projection Length (E) | 14.3 mm |
| Radial Stiffness (R1) | 475 N/mm |
| Max Deflection | 3.8 mm |
| Max Load | 185 Kg |
| Axial Stiffness (R2) | 640 N/mm |
| Rubber Hardness | 45 Shore A |
| Warranty | 6 Months |
| Product Dimensions | Cab Mounting |
|---|---|
| |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TB25-60 | TB12-40 | TB12-60 | TB45-45 | TB45-60 | TB50-60 | TB50-75 | TB65-60 | TB75 | TBCBA20-75 | TBCBA24 | SB1316 | SB2166 | SB2201 | SB2106 |
| Type | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush | Bush |
| Size | 17.5mm | 27.2mm | 27.2mm | 25mm | 25mm | 35mm | 35mm | 44mm | 50.8mm | 36.8mm | 38.1mm | 25.4mm | 25.4mm | 25.4mm | 28.6mm |
| Deflection | 0.7 | 1.4 | 1.4 | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2.16 | 2.5 | 2.5 | ||||
| Overall Height | 17.5mm | 27.2mm | 27.2mm | 25mm | 25mm | 35mm | 35mm | 44mm | 50.8mm | 36.8mm | 38.1mm | ||||
| Size Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. Cab mountings on heavy commercial and off-highway vehicles. Fit is by dimensions - 25.4 mm inner, 88.9 mm outer, 66.7 mm rubber body, 79.4 mm overall - matched against the bush being replaced. WhatsApp our team if unsure.
A. 185 kg maximum at 3.8 mm deflection for the ECC1165-45 at this hardness.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
