Product Number: NIB1388*-60
Variations
Sitting at the midpoint of the NIB1388* range, the 57 mm diameter, M10 interleaf mount in 60 Shore A rubber is engineered for the broad middle ground of machinery mounting, delivering a balance of vibration isolation and structural support where neither extreme softness nor maximum load capacity is the priority. Its 37 mm height and 25 mm boss length place it in the compact end of the family, making it well suited to lighter, space-conscious installations that nevertheless demand reliable damping performance under moderate operating loads. The mount is built using rubber-to-metal bonded construction, providing durable and repeatable characteristics in service. At 60 Shore A, the rubber compound occupies the medium-hardness band, offering controlled deflection that neither sacrifices isolation efficiency nor allows excessive movement under load. The mount may be loaded in shear, compression, or a combination of both, giving engineers flexibility in how it is orientated within an assembly. This grade improves machinery lifespan, protects surrounding structures, and contributes to improved operator comfort, a combination of benefits well aligned with general-purpose mounting across many applications. With a maximum load rating of 140 kg and a rated deflection of 3.0 mm, the 60 Shore A grade is appropriate for instruments, electronics, light machinery, and general industrial equipment across sectors including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. The rubber-to-metal bond ensures consistent performance whether the unit is subjected to sustained vibration or intermittent shock loading.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

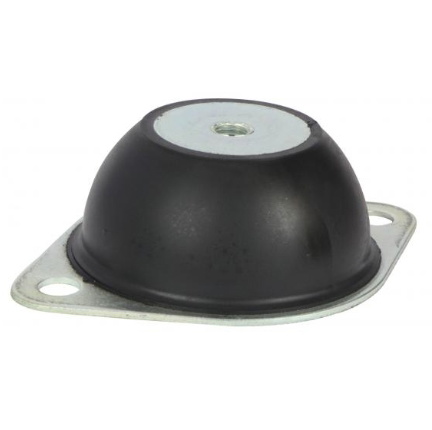

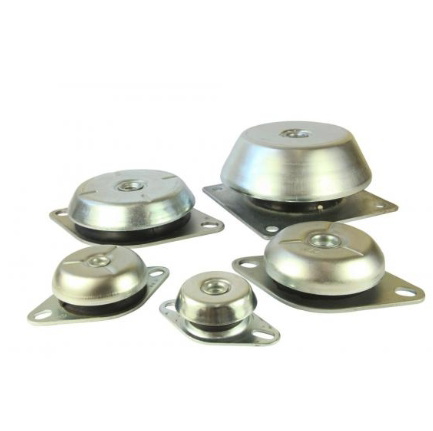

| PRODUCT NUMBER | UU1482-50-50 | TMC6535-65-65 | TMC6535-55-55 | TMC6535-45-45 | FM100260 | CTM6335 |
| Thread Size | M10 | M10 | M10 | M10 | M10 | M10 |
| Mount Type | UU Shear Mountings | Turret Mountings | Turret Mountings | Turret Mountings | Flanged Mountings | Captive Transit Mounts |
| Size Band | 51–75mm | 51–75mm | 51–75mm | 51–75mm | 51–75mm | 51–75mm |
| Hardness Shore | 50 | 65 | 55 | 45 | ||
A. The NIB1388*-60 has an outer diameter of 57 mm, a height of 37 mm, a boss length of 25 mm, and an M10 thread. It is rated to a maximum load of 140 kg with a deflection of 3.0 mm.
A. This mount uses 60 Shore A rubber, which is the medium grade within the range. It provides a balance of vibration isolation and load support, with controlled deflection suited to general-purpose machinery mounting rather than the extremes of maximum isolation or maximum load-bearing.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is orientated within an assembly.
A. This mount is designed for instruments, electronics, light machinery, and general industrial equipment. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Rubber-to-metal bonded construction improves machinery lifespan, protects surrounding structures, and improves operator comfort by isolating vibration between connected components.
A. Yes. The NIB1388* range includes a 45 Shore A grade (NIB1388*-45) for greater deflection and improved isolation at lower loads, and a 70 Shore A grade (NIB1388*-70) for higher load capacity with reduced movement. Related ranges include FCM1536*, IB1392, IB1393, and NIB1389*.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
