Product Number: 1008WMM06-60

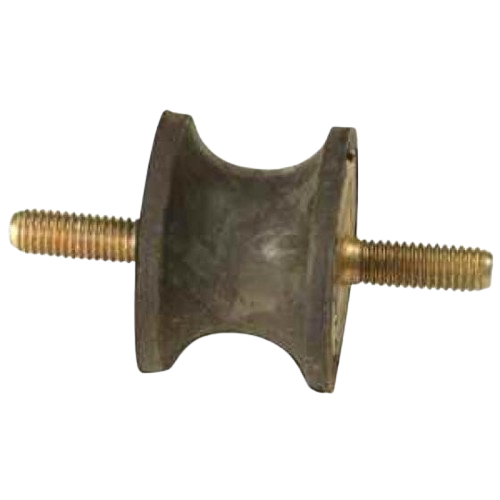

At just 10 mm outer diameter and 8 mm height, the 1008WMM06 is the smallest mount in this waisted bobbin range, purpose-built for compact, sensitive installations where precise vibration isolation at lighter loads is the priority. With an M3 thread on each end and a 4.5 mm inner diameter, it occupies minimal footprint while delivering the rubber-to-metal bonded construction that defines this male–male bobbin family. Waisted bobbins of this type offer a low-cost anti-vibration solution capable of working in shear, compression, or a combination of both. The bonded rubber element flexes under load to absorb vibration and attenuate shock, reducing transmission to surrounding structures, protecting sensitive instrumentation, and improving operator comfort over sustained operating cycles. At the lighter end of the load spectrum, this mount is well suited to instrumentation panels, air-conditioning units, and similarly compact equipment where controlled deflection matters more than high load capacity. The family source confirms applicability across industrial machinery and equipment, generator sets, and automotive contexts, and the 10 mm body keeps installation constraints to a minimum. Stainless steel variants and oil-resistant or high-temperature rubber compounds are available on request for more demanding environments. This SKU is the smallest in a range spanning multiple diameters, heights, and thread sizes. Larger or heavier-duty variants include the 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 20/12/30WMM18, 180/148/75WMM34, and 180/150/75WMM45. Supplied as individual mounts. No warranty period is stated in the product documentation. Manufactured in China.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

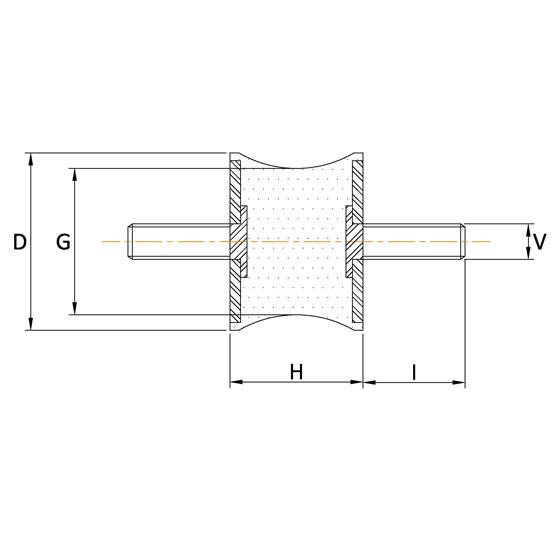

| Outer Dimension (D) | 10mm |
|---|---|
| Inner Dimension (G) | 4.5mm |
| Height (H) | 8mm |
| Bolt Width (I) | 6mm |
| Thread Size (V) | M3 |
| Max Load (Kg) | - |
| Deflection (mm) | - |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1214WMM10-60 | 15/8.5/15WMM10-N60 | 2019WMM18-45 | 2019WMM18-60 | 2520WMM18-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 14mm | 15mm | 19mm | 19mm | 20mm |
| Deflection | - | 2.1 | 2.5 | 2.5 | 3 |
| Thread | M4 | M4 | M6 | M6 | M6 |
A. The 1008WMM06 has an outer diameter (D1) of 10 mm, an inner diameter (D2) of 4.5 mm, a body height (H) of 8 mm, an M3 thread (d), and a thread length (L) of 6 mm.
A. The mount uses an M3 thread in a male–male (Type A / Type 1) configuration, with a 6 mm thread length, making it compatible with standard M3 fixings at both ends.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within an assembly.
A. The range covers applications including air-conditioning units, instrumentation, industrial machinery and equipment, generator sets, automotive, and exhaust mountings. As the smallest mount in the range, the 1008WMM06 is particularly suited to compact, lighter-load installations such as instrumentation panels and small AC units.
A. The range serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — stainless steel metal parts and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The 1008WMM06 is the smallest mount in the range. Larger variants with greater thread sizes and body dimensions are available: 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 20/12/30WMM18, 180/148/75WMM34, and 180/150/75WMM45.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
