Product Number: NIB1389*-60
Variations
The NIB1389*-60 is a 76.2 mm diameter interleaf anti-vibration mount rated to a maximum load of 300 kg with a deflection of 2.9 mm, positioned at the mid-range of the Shore A hardness spectrum to deliver a balanced combination of vibration isolation and structural support. At 60 Shore A, this medium-grade mount suits the broad middle ground of general-machinery mounting, where moderate operating loads and controlled movement must be managed simultaneously without sacrificing ride quality or mechanical integrity. Constructed with rubber-to-metal bonded technology, the NIB1389*-60 is engineered to accept loading in shear, compression, or a combination of both, giving installation engineers flexibility across many mounting orientations. The M10 thread and a height of 36.6 mm with a stud length of 25 mm allow straightforward integration into standard machinery frames. By absorbing and attenuating vibration at source, the mount improves machinery lifespan, protects surrounding structures, and contributes to improved operator comfort during sustained operation. This mount serves the broad spread of industries that run continuous or semi-continuous plant at moderate load levels, including power generation sets, agricultural machinery, marine auxiliary equipment, and construction and off-highway plant. The 60 Shore A hardness grade is the appropriate choice where neither a soft grade's high deflection nor a firm grade's minimal movement is wanted, and where a single mount must accommodate variable operating conditions across the working day. The mount is sourced from a family of instrument and general mountings designed for lightweight through to moderate-load applications.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

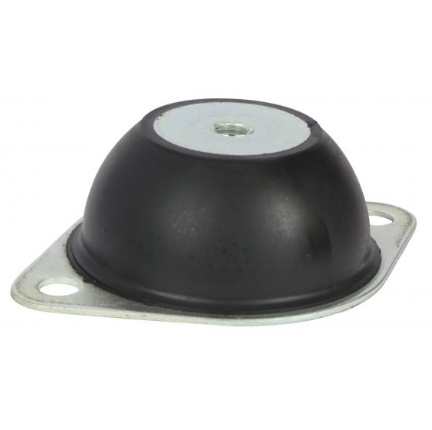

| PRODUCT NUMBER | UU20-70*-70 | TMM | HYDVC1.400SQ | HYDVC0.250 | FM10028-75 | FM10028-60 |
| Thread Size | M10 | M10 | M10 | M10 | M10 | M10 |
| Mount Type | UU Shear Mountings | Turret Mountings | Hydro Mountings | Hydro Mountings | Capped Flanged Mountings | Capped Flanged Mountings |
| Size Band | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm |
| Hardness Shore | 70 | 75 | 60 | |||
A. The NIB1389*-60 has an overall height of 36.6 mm, a diameter of 76.2 mm, a stud length of 25 mm, and an M10 thread. It is rated to a maximum load of 300 kg with a deflection of 2.9 mm.
A. This mount is 60 Shore A, a medium hardness grade. At this grade, softer rubber gives greater deflection and better isolation at lower load while harder rubber carries higher load with less movement — the 60 Shore A sits in the middle, balancing isolation performance with load-carrying capacity for mainstream general-machinery applications.
A. The NIB1389*-60 may be loaded in shear, compression, or a combination of both, providing flexibility across different mounting orientations and installation configurations.
A. This mount is suited to construction and off-highway equipment, agricultural machinery, power generation sets, marine auxiliary installations, railway and mass transit plant, automotive applications, and military and defence equipment where moderate loads and balanced vibration control are required.
A. The NIB1389*-45 offers a softer grade with greater deflection for better isolation at lower loads, while the NIB1389*-70 is a firmer grade suited to higher loads with less movement. The NIB1389*-60 sits between the two, making it the general-purpose choice for mainstream moderate-load mounting.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
