Product Number: 2019WMM18-45
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

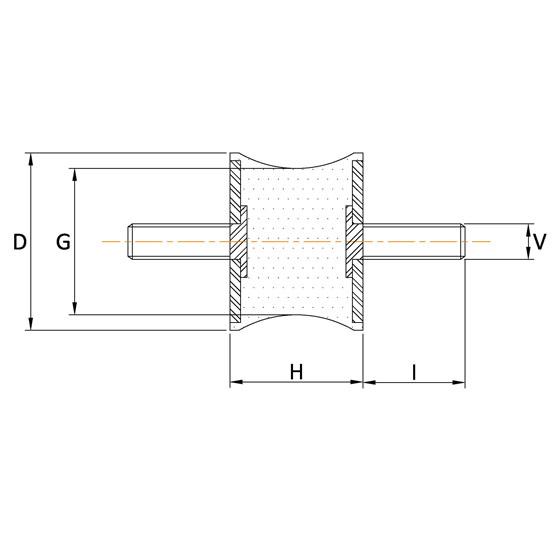

| Outer Dimension (D) | 20mm |
|---|---|
| Inner Dimension (G) | 14mm |
| Height (H) | 19mm |
| Bolt Width (I) | 18mm |
| Thread Size (V) | M6 |
| Max Load (Kg) | 10 |
| Deflection (mm) | 2.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | HEX1382-60 | HEX1383-45 | 15/8.5/15WMM10-N60 | 2520WMM18-45 | 2019WMM18-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 16mm | 19mm | 15mm | 20mm | 19mm |
| Deflection | 1 | 1.2 | 2.1 | 3 | 2.5 |
| Thread | M6 | M8 | M4 | M6 | M6 |

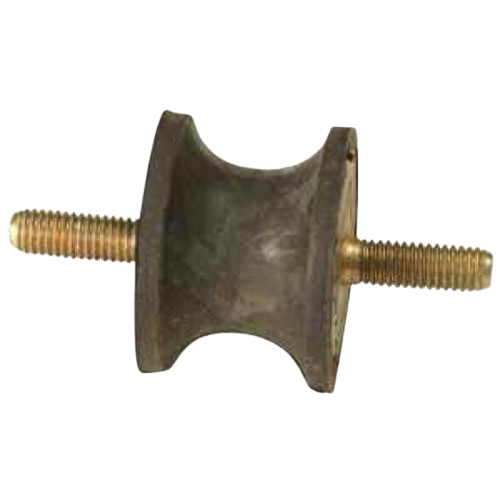

A. The 2019WMM18 has an outer diameter (D1) of 20mm, an inner diameter (D2) of 14mm, a height (H) of 19mm, an M6 thread (d), and a stud length (L) of 18mm.
A. This waisted bobbin mount may be loaded in shear, compression, or a combination of both, making it adaptable to a range of mounting orientations.
A. It is suited to lighter-duty and sensitive installations such as air-conditioning units, instrument mountings, and compact industrial machinery and equipment, as well as automotive, agricultural, marine, and power-generation applications.
A. These mounts use rubber-to-metal bonded construction, which combines the resilience of rubber with the structural integrity of the metal insert to provide reliable anti-vibration performance.
A. Yes. Stainless steel metal inserts and oil-resistant or high-temperature rubbers are available on request for applications with more demanding service conditions.
A. Yes. Related variants include 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 180/148/75WMM34, and 180/150/75WMM45, covering a range of diameters and thread sizes.
