Product Number: 15/8.5/15WMM10-N60
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

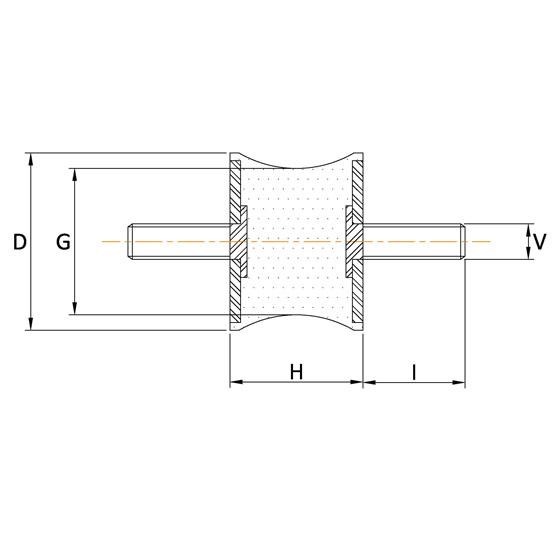

| Outer Dimension (D) | 15mm |
|---|---|
| Inner Dimension (G) | 8.5mm |
| Height (H) | 15mm |
| Bolt Width (I) | 10mm |
| Thread Size (V) | M4 |
| Max Load (Kg) | 13.8 |
| Deflection (mm) | 2.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2520WMM18-45 | 2019WMM18-60 | HEX1383-60 | HEX1384-45 | 2019WMM18-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 20mm | 19mm | 19mm | 26mm | 19mm |
| Deflection | 3 | 2.5 | 1.2 | 2 | 2.5 |
| Thread | M6 | M6 | M8 | M8 | M6 |

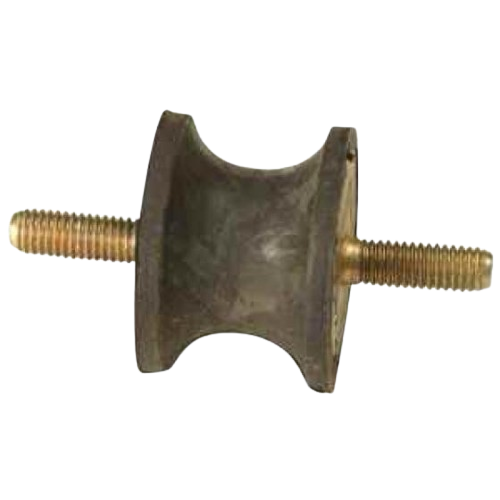

A. The mount has an outer diameter (D1) of 15 mm, a waist diameter (D2) of 8.5 mm, a height (H) of 15 mm, an M4 thread (d), and a stud length (L) of 10 mm.
A. The mount can be loaded in shear, compression or a combination of both, providing flexibility in how it is installed and orientated within an assembly.
A. At its compact size and M4 thread, this mount is suited to instruments, air-conditioning units, exhaust mountings, lighter ancillary equipment on diesel engines, generator sets and general industrial machinery and equipment.
A. Industries served include automotive, power generation, agriculture, construction and off-highway, marine, railway and mass transit, and military and defence.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Yes — sibling variants include the 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 180/148/75WMM34, 180/150/75WMM45 and 20/12/30WMM18, covering a wider range of load capacities and thread sizes.
