Product Number: 1214WMM10-60
Variations
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

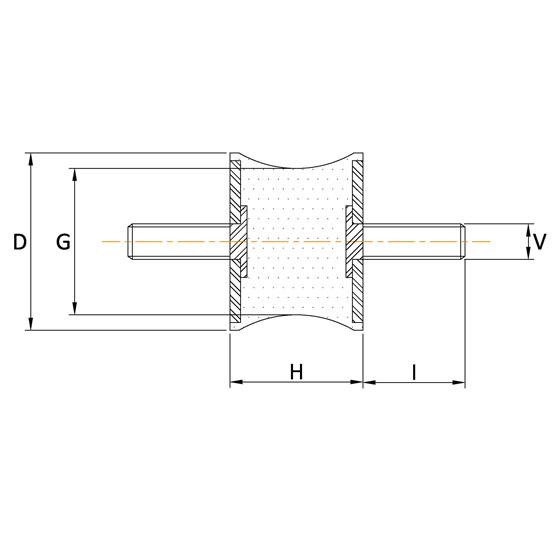

| Outer Dimension (D) | 12mm |
|---|---|
| Inner Dimension (G) | 6.5mm |
| Height (H) | 14mm |
| Bolt Width (I) | 10mm |
| Thread Size (V) | M4 |
| Max Load (Kg) | - |
| Deflection (mm) | - |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1008WMM06-60 | 15/8.5/15WMM10-N60 | 2019WMM18-45 | 2019WMM18-60 | 2520WMM18-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 8mm | 15mm | 19mm | 19mm | 20mm |
| Deflection | - | 2.1 | 2.5 | 2.5 | 3 |
| Thread | M3 | M4 | M6 | M6 | M6 |

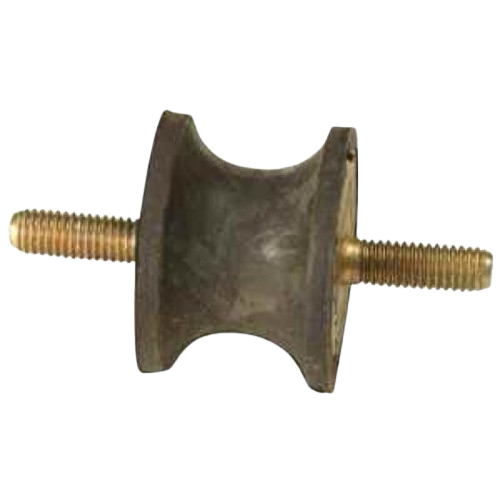

A. The 1214WMM10 has an outer diameter (D1) of 12 mm, a waist diameter (D2) of 7 mm, an overall height (H) of 14 mm, M4 male threads at both ends, and a thread insertion length (L) of 10 mm.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility across a range of installation orientations.
A. It is suited to sensitive instruments, small air-conditioning units, compact industrial machinery and equipment, exhaust mountings, generator sets, and automotive or agricultural ancillaries where an M4 fixing and small outer diameter are required.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Yes — related variants include the 1008WMM06, 1010WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 20/12/30WMM18, 180/148/75WMM34, and 180/150/75WMM45 for different load and thread requirements.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
