Product Number: CTM1214216-45

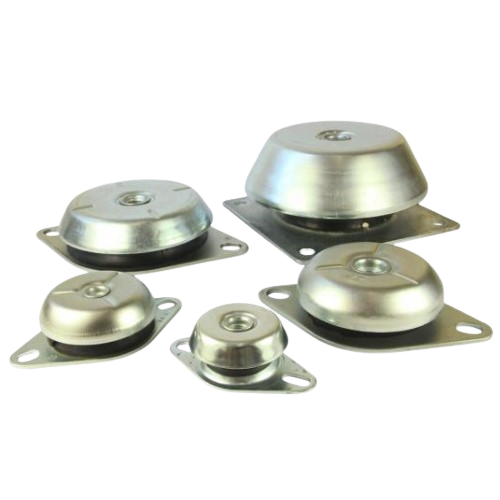

The CTM1214216-45 is the 45 Shore grade of the 121 x 42 mm captive transit mount, rated to 400 kg per point. Its M16 stud and wider flange suit generating sets, diesel and marine engines, pumps and compressors needing transit restraint.

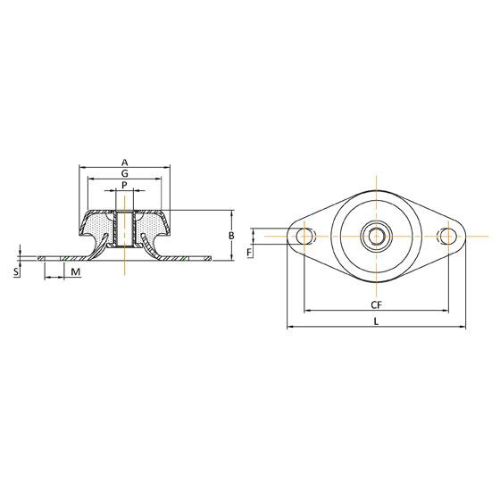

The rubber element works in shear compression, achieving up to 95% vibration reduction in all axes, with a metal top cap protecting it from oil and fuel contamination. An integral overload stop controls the equipment's movement during transport, and the captive construction provides a failsafe under shock loads for mobile and static plant alike. The 121 mm flange (A) stands 42 mm high (B); fixing is through 13.5 mm diameter holes at 150-163 mm centres, with a 92 mm inner dimension (G), 190 mm free length (L) and 4 mm base (S).
Alternative grades on this body: CTM1214216-60 (625 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 121mm |
|---|---|
| Flange Height (B) | 42mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 13.5mm |
| Center Distance (CF) | 156-158mm |
| Inner Dimensions (G) | 92mm |
| Free Length (L) | 190mm |
|
, Max Load 400
|
|
| Deflection (mm) | 4.5mm |
| Mounting Base Thickness (S) | 3.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1063816-60 | CTM1085016-45 | CTM1064216-2 | CTM1063812-60 | CTM1064212-2 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3.5mm | 3.5mm | 7mm | 3.5mm | 7mm |
| Thread | M16 | M16 | M16 | M12 | M12 |
A. Fit is by dimensions - 121 mm flange, 13.5 mm fixing holes at 150-163 mm centres, M16 stud, 190 mm free length. Compare with your base or old mounts, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. 400 kg per mounting point at 45 Shore.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1214216-60 (625 kg). Work out the load per mounting point and pick the grade that covers it.
A. The CTM1214216-60 carries 625 kg per point on the identical 121 x 42 mm body and bolt pattern - a straight swap with no re-drilling.
A. The integral overload stop controls movement of the mounted equipment during transit and the captive design fails safe under shock loads - protection a standard rubber mount does not provide on mobile equipment.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
