Product Number: CTM1064212-2
Variations
The CTM1064212-2 is the second grade of the 106 x 42 mm M12 captive transit series, rated to 375 kg per mount. It is a step up for mid-weight generating sets, industrial and marine engines, compressors and pump sets that travel between sites.
The shear-compression rubber element cuts vibration by up to 95% in all axes, with a metal top cap keeping oil and fuel off the rubber. An integral overload stop restrains the equipment during transport, and the captive construction fails safe under shock loads. The mount presents a 106 mm flange at 42 mm height, fixes through 12.5 x 19 mm slots at 138-146 mm centres, and measures 80 mm across the inner dimension with a 171 mm free length on a 4 mm base.
Alternative grades on this body: CTM1064212-1 (200 kg), CTM1064212-3 (500 kg), CTM1064212-4 (625 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

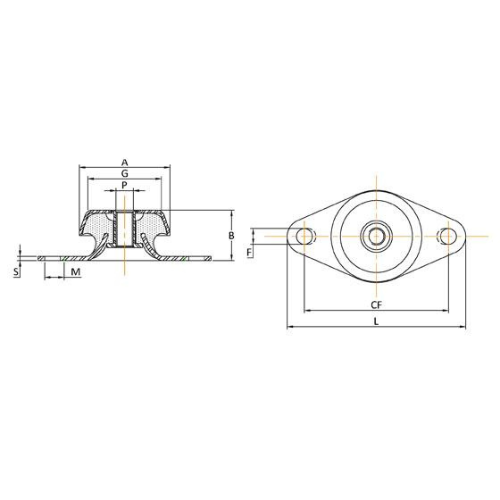

| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 42mm |
| Thread size (P) | M12 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 375
|
|
| Deflection (mm) | 7mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1064216-2 | CTM1063812-60 | CTM1063816-60 | CTM1085016-45 | CTM1214216-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 7mm | 3.5mm | 3.5mm | 3.5mm | 4.5mm |
| Thread | M16 | M12 | M16 | M16 | M16 |
A. Match your footprint to a 106 mm flange with 12.5 x 19 mm slots at 138-146 mm centres, an M12 stud and 171 mm free length. Search PartsForMachines by the AV part number or WhatsApp our team with your measurements to confirm fit.
A. 375 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1064212-1 (200 kg), CTM1064212-3 (500 kg), CTM1064212-4 (625 kg). Work out the load per mounting point and pick the grade that covers it.
A. The metal top cap protects the rubber from contamination such as oil and fuel, and the range is applied to industrial and marine engines.
